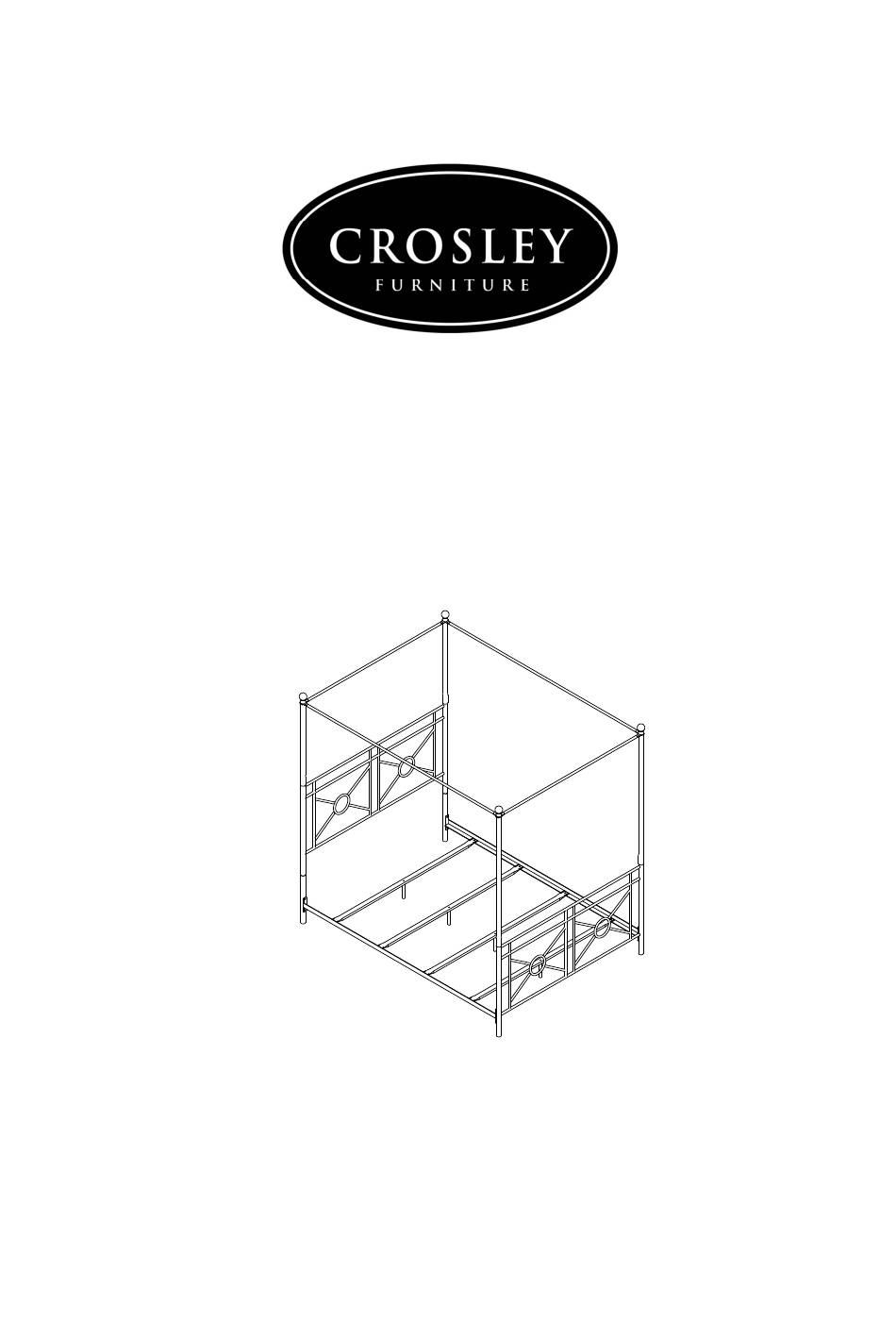

- Page 1 Queen Canopy Bed CF91007-504...
-
Page 2: Part List
PART LIST Headboard Panel Footboard Panel Leg Extension Finial Footboard Post 1 PC 1 PC 2 PCS 4 PCS 2 PCS Headboard Post Long Canopy Pole Short Canopy Pole Side Rail Slat 2 PCS 2 PCS 2 PCS 2 PCS 4 PCS Support Leg 4 PCS... - Page 3 Step 1. Lay headboard panel (part A) upside down on a soft flat surface, such as carpet, as shown below. Attach leg extensions (part C) to headboard panel (part A) using bolts (part #1), flat washers (part #6) and allen wrench (part #7). NOTE: Please do not fully tighten bolts until unit is fully assembled.
- Page 4 Step 3. Attach support legs (part K) to the bottom of slats (part J) using long bolts (part #3), flat washers (part #6) and allen wrench (part #7). Step 4. Attach assembled units (parts J & K) to side rails (part I) using bolts (part #1), flat washers (part #6), hex nuts (part #5), allen wrench (part #7) and wrench (part #8).
- Page 5 Canopy Assembly: Step 6. Remove finials (part D) from headboard panel (part A) and footboard panel (part B) by hand. Carefully line up holes on long canopy poles (part G) and short canopy poles (part H) to footboard posts (part E ) and headboard posts (part F) and secure with finials (part D). ...
