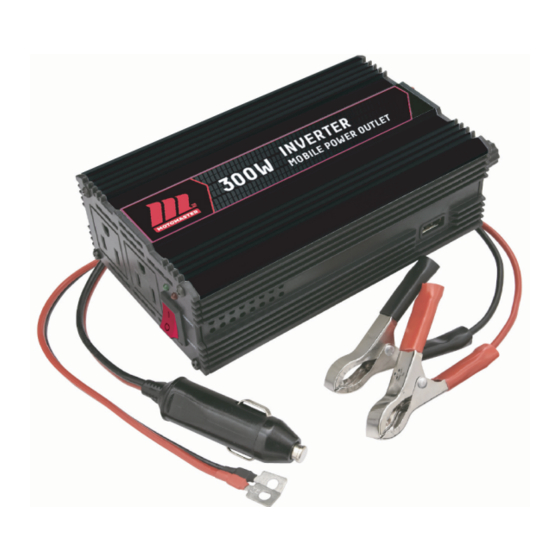

- Page 1 300 W POWER INVERTER model no. 011-1870-6 SAVE THESE INSTRUCTIONS! INSTRUCTION This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. MANUAL Questions? Call Customer Service Hotline: 1-877-466-8191...
-
Page 2: Table Of Contents
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 TECHNICAL SPECIFICATIONS AC POWER SAFETY INFORMATION AC output voltage (nominal) 115 V, 60 Hz KEY PARTS DIAGRAM Continuous power 300 W INTENDED USE Peak power... - Page 3 011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 WARNING! This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and •...
- Page 4 011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 CAUTION! • REVERSE POLARITY. Power connections from a 12 V battery to the power inverter must be positive to positive and negative to negative. A reverse polarity connection (positive •...
- Page 5 011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 RED INDICATOR GREEN INDICATOR USB PORT D AC OUTLET DC CABLE WITH CLAMPS FOR DIRECT DC CABLE WITH CONNECTION TO 12 V VEHICLE BATTERY 12 V OUTLET PLUG (J)
-
Page 6: Options For Connecting Devices To The Power Inverter
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 The power inverter is an electronic device that converts the low-voltage 12 V (direct current) from a battery, as can be found in cars, motor homes, boats or other similar power sources, to the conventional 115 V (alternating current) like you have in your home. -
Page 7: Determining The Maximum Load Of Connected Devices
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 Determining the maximum load of connected devices The SURGE (STARTING) WATTAGE is the amount of power that a device consumes at start- up for a limited period of time (2–3 seconds). Some devices (e.g. induction motors of drills WARNING! and fans) may have a start-up surge of 3 to 7 times the rated wattage. - Page 8 011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 IMPORTANT! PRODUCTS WATTS REQUIRED Add up the total wattage of devices to be powered. Portable music / MP3 player 10 W TAKE INTO CONSIDERATION THE SURGE WATTAGE REQUIRED BY ELECTRICAL MOTORS...
-
Page 9: Before You Start
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 IMPORTANT! Connecting the power inverter CAUTION! The device is not suitable for professional or industrial use. Before you start Prior to connecting to the power source: Make sure that the total wattage of the devices you are planning to connect to the •... -
Page 10: Connecting The Power Inverter To A 12 V Outlet (Loads Under 100 W)
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 CAUTION! Only use the cables provided with your power inverter. • Screw off the caps of the DC cabling terminals (B / C). • Connect the cable with the DC cabling terminals (B / C). -
Page 11: Connecting The Power Inverter To A 12 V Vehicle Battery (Loads Up To 240 W)
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 IMPORTANT! WARNING! The normal voltage drop that occurs when the vehicle's engine is started may trigger the To prevent irritation and burns, wear protective eyewear and clothing when you install the power inverter's low-voltage shutdown feature. -
Page 12: Switching On/Off
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 • Plug in the devices that you want to operate to either the AC outlet or the USB port. CAUTION! After plugging in the devices, turn them on ONE AT A TIME. This will ensure that the power inverter does not have to deliver the surge currents required for all the loads at once. -
Page 13: Automatic Safety Features
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 WARNING! Automatic safety features The power inverter includes the following automatic safety Before cleaning, make sure the power inverter is switched off and disconnected from features to ensure safe and trouble-free operation: the power source. -
Page 14: Fuse Replacement
011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 • While the engine is running, the power inverter can be connected to the vehicle's 12 V outlet The power inverter is equipped with protective shutdown features and an acoustic again. - Page 15 011-1870-6 | contact us: 1-877-466-8191 model no. 011-1870-6 | contact us : 1-877-466-8191 ALARM POSSIBLE CAUSE SOLUTION ERROR SIGNAL PROBLEM POSSIBLE CAUSE SOLUTION Measured • Switch the power inverter power inverter The battery voltage is too low. Recharge the battery.
- Page 16 This MotoMaster product carries a one (1) year warranty against defects in workmanship and materials. At its discretion, MotoMaster Canada agrees to have any defective part(s) repaired or replaced free of charge, within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
