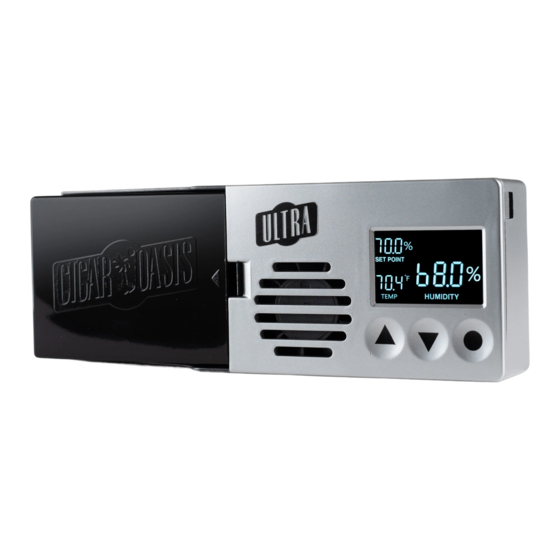

CIGAR OASIS ULTRA 3.0 Manual

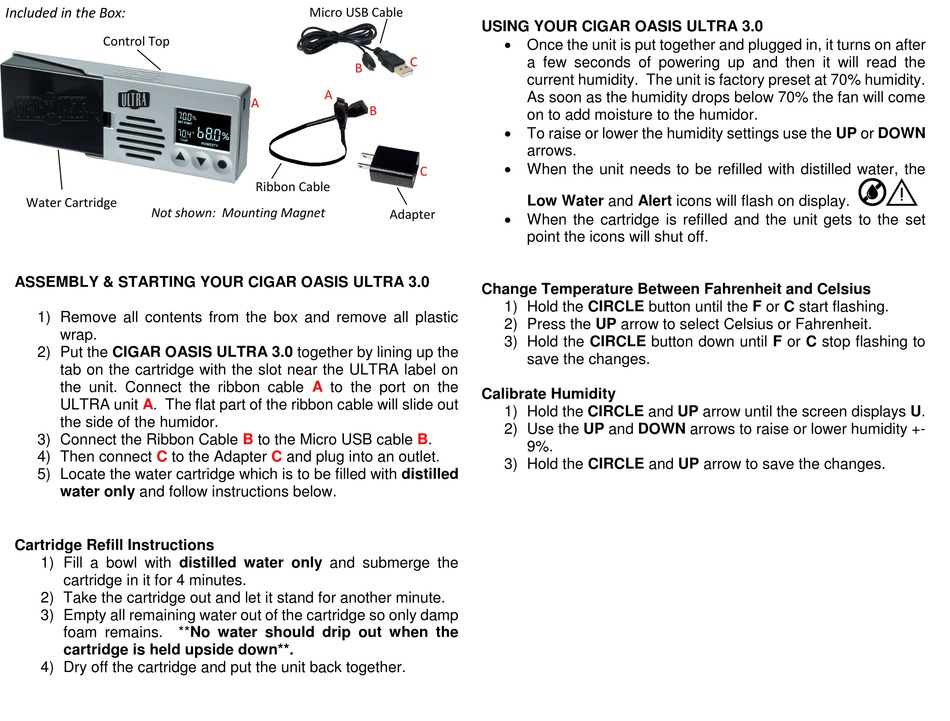

Included in the Box:
Control Top
Water Cartridge
Not shown: Mounting Magnet
ASSEMBLY & STARTING YOUR CIGAR OASIS ULTRA 3.0
1) Remove all contents from the box and remove all plastic
wrap.
2) Put the CIGAR OASIS ULTRA 3.0 together by lining up the
tab on the cartridge with the slot near the ULTRA label on
the unit. Connect the ribbon cable
ULTRA unit A. The flat part of the ribbon cable will slide out
the side of the humidor.
3) Connect the Ribbon Cable
4) Then connect C to the Adapter
5) Locate the water cartridge which is to be filled with distilled
water only and follow instructions below.
Cartridge Refill Instructions
1) Fill a bowl with distilled water only and submerge the
cartridge in it for 4 minutes.
2) Take the cartridge out and let it stand for another minute.
3) Empty all remaining water out of the cartridge so only damp
foam remains. **No water should drip out when the
cartridge is held upside down**.
4) Dry off the cartridge and put the unit back together.
Micro USB Cable
C
B
Ribbon Cable
A
Ribbon Cable
A
B
Ribbon Cable
Ribbon Cable
Ribbon Cable
C
Ribbon Cable
Adapter
A to the port on the
B to the Micro USB cable B.
C and plug into an outlet.
USING YOUR CIGAR OASIS ULTRA 3.0
 Once the unit is put together and plugged in, it turns on after
a few seconds of powering up and then it will read the
current humidity. The unit is factory preset at 70% humidity.
As soon as the humidity drops below 70% the fan will come
on to add moisture to the humidor.
 To raise or lower the humidity settings use the UP or DOWN
arrows.
 When the unit needs to be refilled with distilled water, the
Ribbon Cable Low Water and Alert icons will flash on display.
 When the cartridge is refilled and the unit gets to the set
point the icons will shut off.
Change Temperature Between Fahrenheit and Celsius
1) Hold the CIRCLE button until the F or C start flashing.
2) Press the UP arrow to select Celsius or Fahrenheit.
3) Hold the CIRCLE button down until F or C stop flashing to
save the changes.
Calibrate Humidity
1) Hold the CIRCLE and UP arrow until the screen displays U.
2) Use the UP and DOWN arrows to raise or lower humidity +-
9%.
3) Hold the CIRCLE and UP arrow to save the changes.
