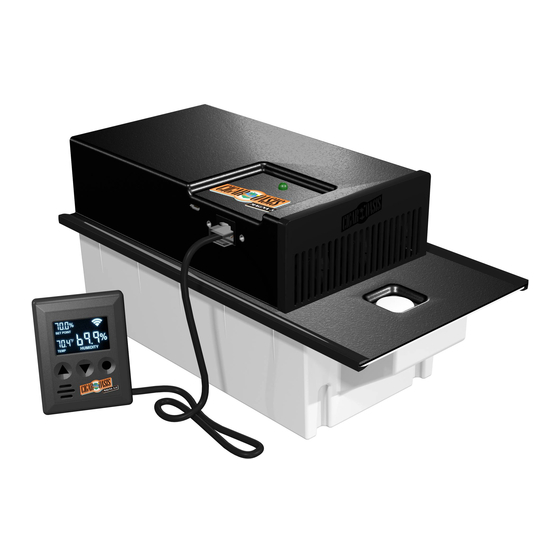

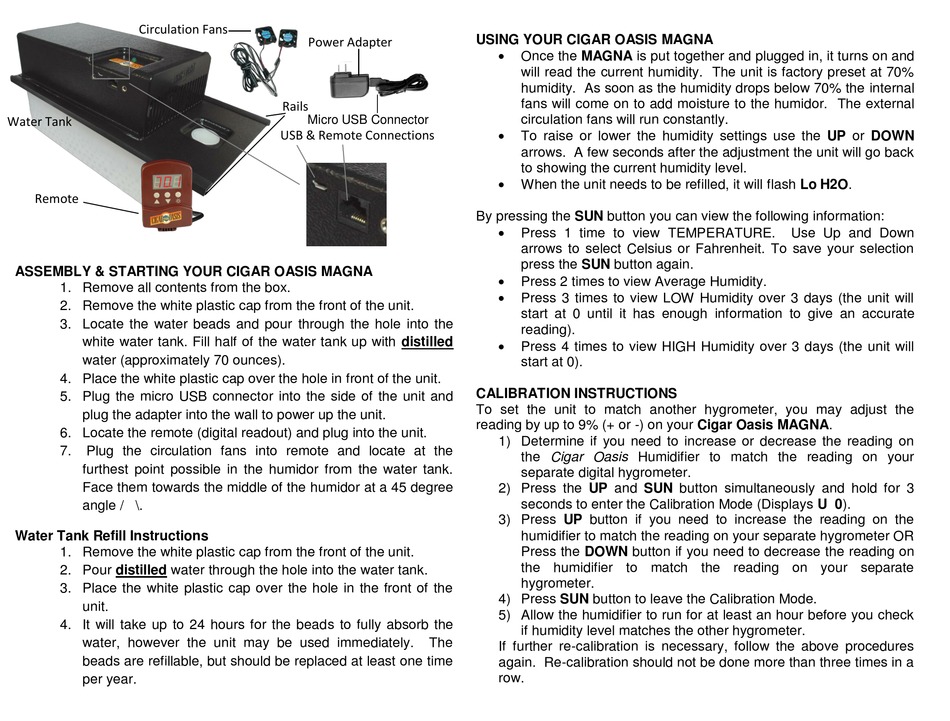

CIGAR OASIS MAGNA Quick Manual

Circulation Fans
Water Tank
Remote
ASSEMBLY & STARTING YOUR CIGAR OASIS MAGNA
1. Remove all contents from the box.
2. Remove the white plastic cap from the front of the unit.
3. Locate the water beads and pour through the hole into the
white water tank. Fill half of the water tank up with distilled
water (approximately 70 ounces).
4. Place the white plastic cap over the hole in front of the unit.
5. Plug the micro USB connector into the side of the unit and
plug the adapter into the wall to power up the unit.
6. Locate the remote (digital readout) and plug into the unit.
7. Plug the circulation fans into remote and locate at the
furthest point possible in the humidor from the water tank.
Face them towards the middle of the humidor at a 45 degree
angle / \.

Water Tank Refill Instructions

1. Remove the white plastic cap from the front of the unit.
2. Pour distilled water through the hole into the water tank.
3. Place the white plastic cap over the hole in the front of the
unit.
4. It will take up to 24 hours for the beads to fully absorb the
water, however the unit may be used immediately.
beads are refillable, but should be replaced at least one time
per year.
Power Adapter
Rails
Micro USB Connector
USB & Remote Connections
The
USING YOUR CIGAR OASIS MAGNA

Once the MAGNA is put together and plugged in, it turns on and
will read the current humidity. The unit is factory preset at 70%
humidity. As soon as the humidity drops below 70% the internal
fans will come on to add moisture to the humidor. The external
circulation fans will run constantly.

To raise or lower the humidity settings use the UP or DOWN
arrows. A few seconds after the adjustment the unit will go back
to showing the current humidity level.

When the unit needs to be refilled, it will flash Lo H2O.
By pressing the SUN button you can view the following information:

Press 1 time to view TEMPERATURE.
arrows to select Celsius or Fahrenheit. To save your selection
press the SUN button again.

Press 2 times to view Average Humidity.

Press 3 times to view LOW Humidity over 3 days (the unit will
start at 0 until it has enough information to give an accurate
reading).

Press 4 times to view HIGH Humidity over 3 days (the unit will
start at 0).

CALIBRATION INSTRUCTIONS

To set the unit to match another hygrometer, you may adjust the
reading by up to 9% (+ or -) on your Cigar Oasis MAGNA.
1) Determine if you need to increase or decrease the reading on
the Cigar Oasis Humidifier to match the reading on your
separate digital hygrometer.
2) Press the UP and SUN button simultaneously and hold for 3
seconds to enter the Calibration Mode (Displays U 0).
3) Press UP button if you need to increase the reading on the
humidifier to match the reading on your separate hygrometer OR
Press the DOWN button if you need to decrease the reading on
the humidifier to match the reading on your separate
hygrometer.
4) Press SUN button to leave the Calibration Mode.
5) Allow the humidifier to run for at least an hour before you check
if humidity level matches the other hygrometer.
If further re-calibration is necessary, follow the above procedures
again. Re-calibration should not be done more than three times in a
row.
Use Up and Down
