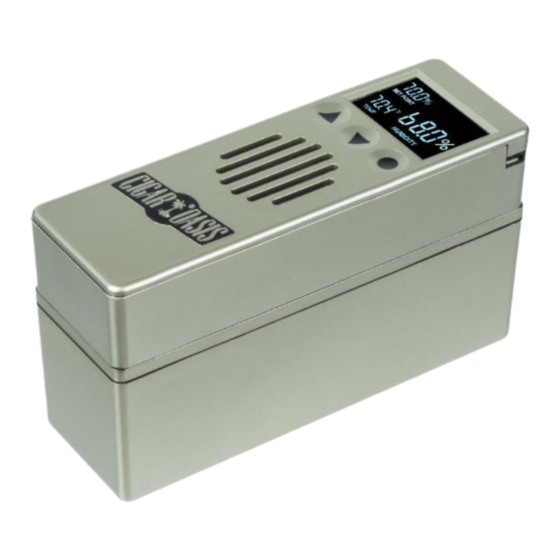

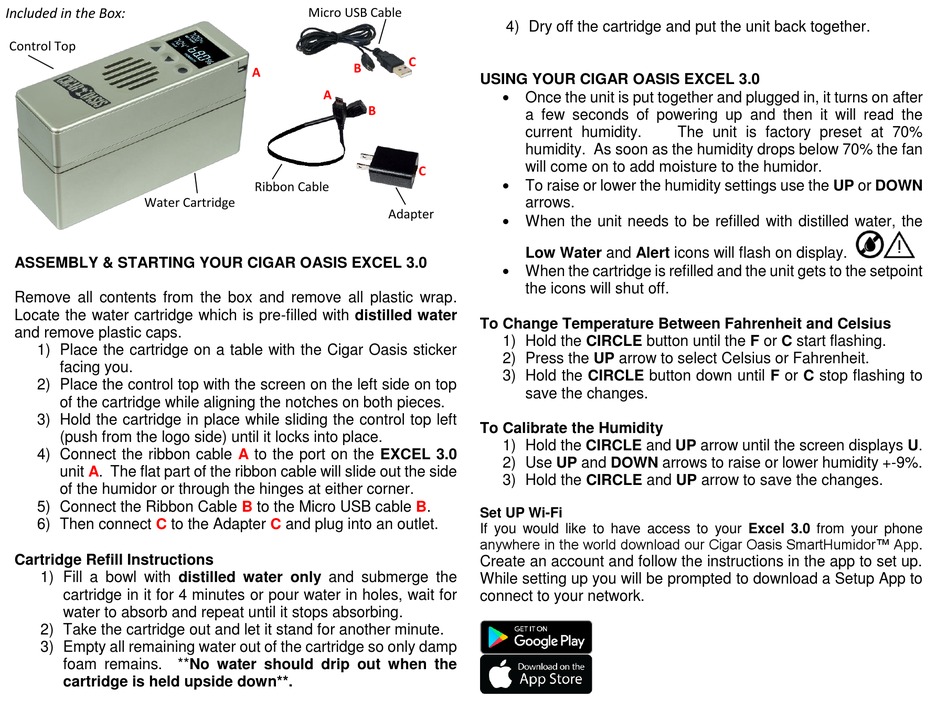

CIGAR OASIS EXCEL 3.0 Assembly & Starting

Included in the Box:
Control Top
Water Cartridge
ASSEMBLY & STARTING YOUR CIGAR OASIS EXCEL 3.0
Remove all contents from the box and remove all plastic wrap.
Locate the water cartridge which is pre-filled with distilled water
and remove plastic caps.
1) Place the cartridge on a table with the Cigar Oasis sticker
facing you.
2) Place the control top with the screen on the left side on top
of the cartridge while aligning the notches on both pieces.
3) Hold the cartridge in place while sliding the control top left
(push from the logo side) until it locks into place.
4) Connect the ribbon cable
unit A. The flat part of the ribbon cable will slide out the side
of the humidor or through the hinges at either corner.
5) Connect the Ribbon Cable
6) Then connect C to the Adapter
Cartridge Refill Instructions
1) Fill a bowl with distilled water only and submerge the
cartridge in it for 4 minutes or pour water in holes, wait for
water to absorb and repeat until it stops absorbing.
2) Take the cartridge out and let it stand for another minute.
3) Empty all remaining water out of the cartridge so only damp
foam remains. **No water should drip out when the
cartridge is held upside down**.
Micro USB Cable
C
B
A
Ribbon Cable
A
Ribbon Cable
Ribbon Cable
B
Ribbon Cable
Ribbon Cable
Ribbon Cable
Adapter
A to the port on the EXCEL 3.0
B to the Micro USB cable B.
C and plug into an outlet.
4) Dry off the cartridge and put the unit back together.
USING YOUR CIGAR OASIS EXCEL 3.0
 Once the unit is put together and plugged in, it turns on after
a few seconds of powering up and then it will read the
current humidity.
humidity. As soon as the humidity drops below 70% the fan
will come on to add moisture to the humidor.
C
 To raise or lower the humidity settings use the UP or DOWN
Ribbon Cable
arrows.
 When the unit needs to be refilled with distilled water, the
Low Water and Alert icons will flash on display.
 When the cartridge is refilled and the unit gets to the setpoint
the icons will shut off.
To Change Temperature Between Fahrenheit and Celsius
1) Hold the CIRCLE button until the F or C start flashing.
2) Press the UP arrow to select Celsius or Fahrenheit.
3) Hold the CIRCLE button down until F or C stop flashing to
save the changes.
To Calibrate the Humidity
1) Hold the CIRCLE and UP arrow until the screen displays U.
2) Use UP and DOWN arrows to raise or lower humidity +-9%.
3) Hold the CIRCLE and UP arrow to save the changes.
Set UP Wi-Fi
If you would like to have access to your Excel 3.0 from your phone
anywhere in the world download our Cigar Oasis SmartHumidor™ App.
Create an account and follow the instructions in the app to set up.
While setting up you will be prompted to download a Setup App to
connect to your network.
The unit is factory preset at 70%
