Summary of Contents for Condair Defensor OptiSorp

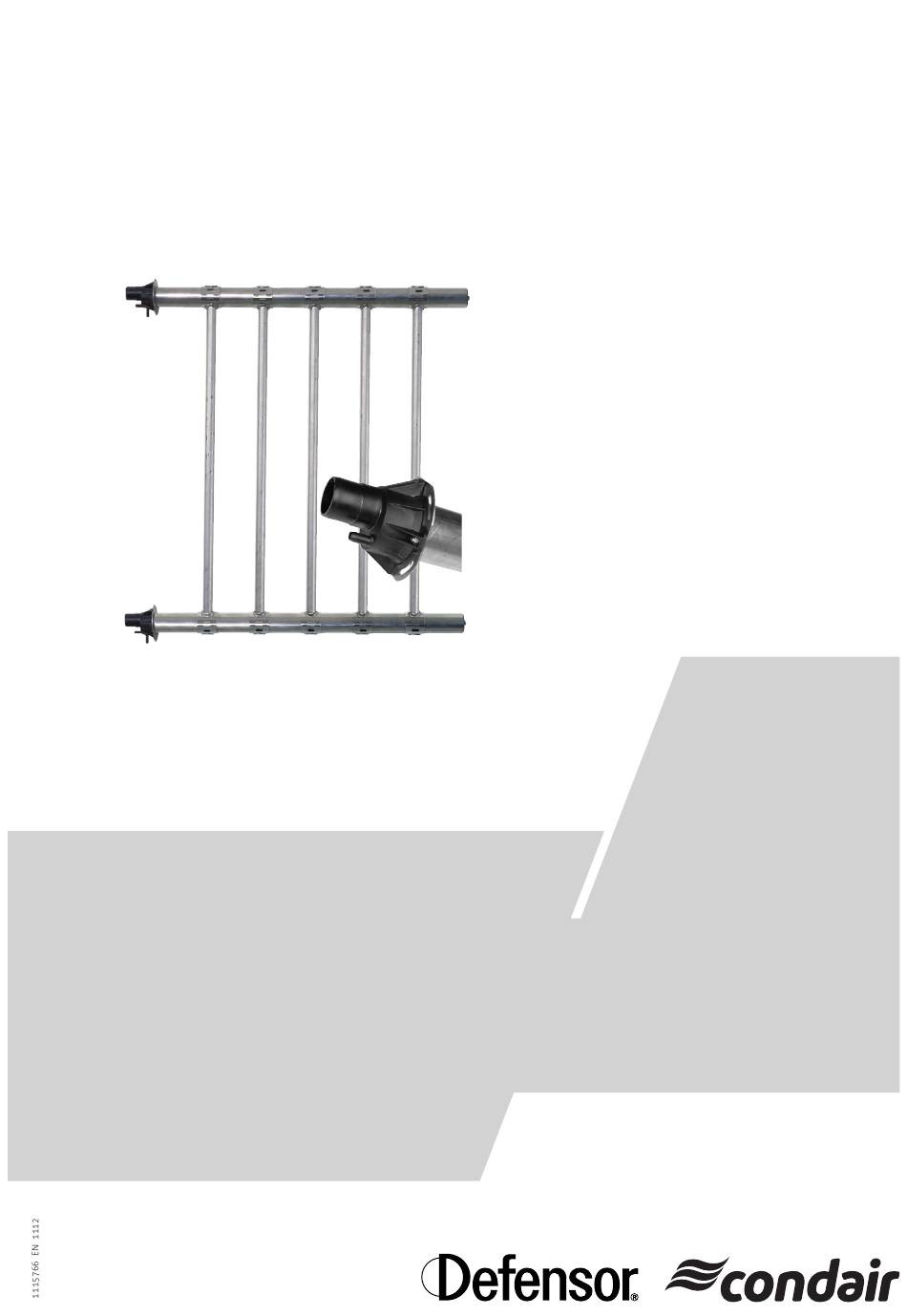

- Page 1 OptiSorp Steam distribution system InStallatIOn and OperatIng InStructIOnS...
-
Page 3: Table Of Contents
Mounting the premounted OptiSorp system Mounting the different parts of the OptiSorp system Connecting the Condair CP3 to the OptiSorp system 3.6.1 Connecting the Condair CP3 Basic to the OptiSorp system 3.6.2 Connecting the Condair CP3 Pro to the OptiSorp system OptiSorp Support (accessory) -
Page 4: Notes On Steam Distribution System Optisorp
The OptiSorp is made from stain less steel and high-grade plastic components. It is designed for con- nection to the Condair and Defensor steam humidi fiers. The OptiSorp steam distribu tion system is installed directly in the air duct or in an air-handling unit. It comprises horizontal collec tor pipes and several vertical pipes provided with steam nozzles. -
Page 5: Determination Of Steam Absorption Distance
Determination of steam absorption distance Determination of the absorption distance “B ” depends on various factors. For simple determination of the absorption distance “B ” the table can be used. The nominal values obtained from the table re fer to an air inlet temperature of 10 °C to 30 °C. The length of the steam absorption distance can be calculated more accurately with the SELECT software program. -
Page 6: Notes For The Planning Engineer
Notes for the planning engineer Layout The choice of the OptiSorp steam distribution system can be made with the SELECT software pro- gramme or from the layout tables. The system is determined by the number of steam connections of the steam humidifier. This also determines the maximum steam output. The max imum possible collector lengths and collector spacing is selected depending on the duct width and height. -
Page 7: Power Selection Diagram Optisorp Systems 1
Power selection diagram OptiSorp Systems 1...4 1000 1200 1500 1800 2000 2300 2500 B min. 1100 1300 1600 1900 2200 2500 2700 max. kg/h System 1 1000 1200 1500 H min. 1150 1350 1650 max. kg/h System 2 1000 1200 1500 1800 2000 H min. -
Page 8: Determination Of The Humidification Distance "B
Determination of the humidification distance “B ” Entering humidity Leaving humidity φ 1 in % r.H. φ 2 in % r.H. 0.22 m 0.28 m 0.36 m 0.48 m 0.66 m 1.08 m 0.20 m 0.26 m 0.34 m 0.45 m 0.64 m 1.04 m 0.16 m... -
Page 9: Mounting
Mounting Safety The OptiSorp steam distribution system must only be installed by adequately qualified personnel. Observe and comply with all safety instructions in the installation and operating instructions of the steam humidifier. Delivery The OptiSorp steam distribution system will be delivered either premounted or as single components. Observe the corresponding mounting instructions. -
Page 10: Mounting The Premounted Optisorp System
Mounting the premounted OptiSorp system ø64 mm ø3.6 mm 2° 2° 1. Remove the protection covers. 2. Measure the distance of the collector pipes and affix the installation template on the duct wall at the designed place with this distance (permissible variation ±3 mm) and cut out the open ings. 3. -
Page 11: Mounting The Different Parts Of The Optisorp System
Mounting the different parts of the OptiSorp system ø64 mm ø3.6 mm 2° 2° 1. Remove the protection covers. 2. Measure the distance of the collector pipes and affix the installation template on the duct wall at the designed place with this distance (permissible variation ±3 mm) and cut out the open ings. 3. -
Page 12: Connecting The Condair Cp3 To The Optisorp System
Connecting the Condair CP3 to the OptiSorp system 3.6.1 Connecting the Condair CP3 Basic to the OptiSorp system Accessories Art.-/SAP-No. Adapater set OptiSorp for Condair CP3 Basic 5...8 kg/h 2533203 Adapater set OptiSorp for Condair CP3 Basic 9...15 kg/h 2533202 ø45 mm... -
Page 13: Connecting The Condair Cp3 Pro To The Optisorp System
3.6.2 Connecting the Condair CP3 Pro to the OptiSorp system Accessories Art.-/SAP-No. Adapater set OptiSorp for Condair CP3 Pro 5...15 kg/h 2529372 ø45 mm ø45 mm *** Standard equipment Condair CP3 Pro 2529372 2529372 A3.../D3... A4.../D4... A6.../D6... -
Page 14: Optisorp Support (Accessory)
OptiSorp Support (accessory) Range duct height Art.-No. Foothold (Pos. 1) Rail (Pos. 2) Bracket (Pos. 3) [mm] No. x Length [mm] [mm] 450...950 1117477 1 x 450 mm 950...1350 1117478 2 x 450 mm 1350...2300 1117479 2 x 450 mm 1400 2300...3200 1117480... -
Page 15: Putting Into Operation And Operation
Putting into operation and operation Putting into operation When connected to several basic units these should be operated in parallel. Otherwise condensate runs into the units switched off and fills these until overflow occurs. Problems can then arise when switching on again. The following should be ensured when putting into operation: 1. -
Page 16: Spare Parts List
Spare parts list Pos. Article Type Art.-/SAP-No. Flange connection cpl. DV81 ø45 1113746 O-ring (3 pcs) ø59.69 x ø5.34 1119190 Sealing cap with fixation 1117559 Sealing cap ø10 1104660 Hose clamp (2 pcs) DV81 with DS80 2538896 DV81 with Z10 2538898 Internal sealing DV81... - Page 17 Notes...
- Page 18 Notes...
- Page 19 © condair ltd., printed in Switzerland technical modifications reserved...
- Page 20 cOnSultIng, SaleS and ServIce: reg.no. 40002-2 avrora-arm.ru +7 (495) 956-62-18...
