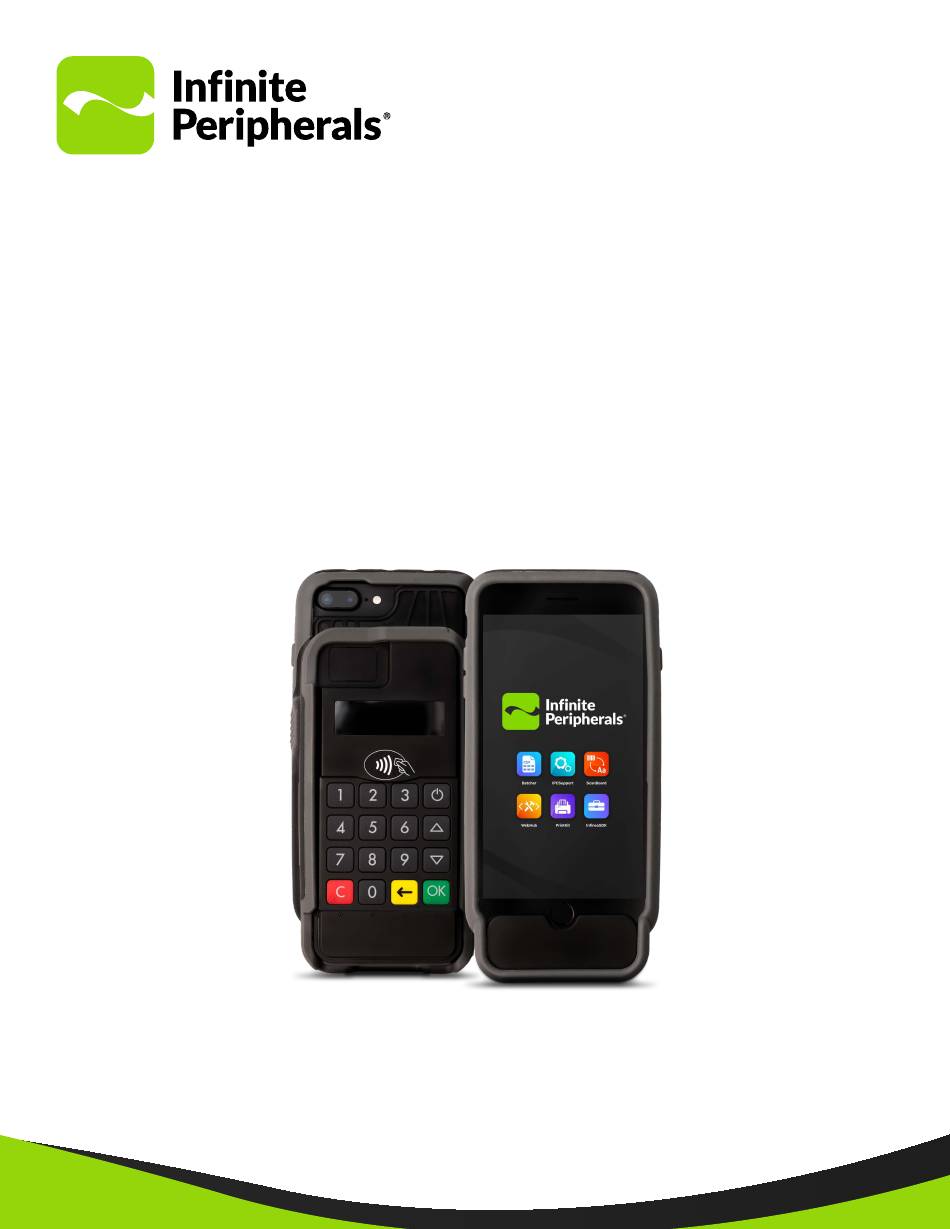

- Page 1 USER MANUAL Infinea®mPOS Plus ® For iPhone 6s Plus/7 Plus/8 Plus...
-
Page 2: Compatible Devices
Compatible Devices iPhone 6s Plus, 7 Plus, 8 Plus Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
User Manual — Infinea mPOS Plus Table of Contents Bluetooth Mode Compatible Devices Test Display Trademarks Test Keyboard Overview Test MSR Features Test SCR Accessories Test Font0 and Font1 Develop Applications Pair with a Bluetooth-Compatible Device Technical Specifications NFC LED Status Indicators... -
Page 4: Overview
User Manual — Infinea mPOS Plus Overview The Infinea mPOS Plus is designed for optimized viewing on the iPhone Plus with a hand-held PIN pad and integrated smart card and magnetic stripe readers, offering advanced security and smart card processing capabilities. -
Page 5: Technical Specifications
User Manual — Infinea mPOS Plus Technical Specifications Connectivity Processor Maxim USIP Professional, version IC400C 128KB of SRAM 256KB of Lockable Flash Memory Memory 128 KB of ROM Application Memory 8MB applicable accessible flash Display LCD, Monochrome, 128 x 32 pixels... -
Page 6: Before Using Your Infinea Mpos
• Carefully inspect the packaging and contents for any signs of damage. • If there are signs of damage, do not attempt to use the unit. Notify your account executive or contact Infinite Peripherals. https://ipcmobile.com/ devices • Ensure the battery is fully charged prior to initial use. -
Page 7: Product Description
User Manual — Infinea mPOS Plus Product Description The front panel of the Infinea mPOS Plus Barcode Scanner Opening for iPhone Camera Volume Buttons Display Scan Button (on each side) NFC Label Keypad NFC LED Indicators Magnetic Stripe Reader (MSR) -
Page 8: Assemble The Mpos
Assemble the mPOS Plus Charge the Infinea mPOS Plus First, insert the bottom of the mPOS into the case. You can charge the Infinea mPOS Plus with a micro USB Groove adapter and USB cable or by using a charging station. -
Page 9: Minimize Deactivation
Tap the appropriate button to perform the following: When storing the device for longer than three months, • Power to turn on the Infinea mPOS Plus. the battery should be charged every three months at a • System Mode to enter system mode from the Home page. -
Page 10: Operational Modes
• Application Download Note: Service and Application Download modes should only be accessed by Infinite Peripherals. Selecting specific keys or options in these modes may render the unit unusable and require reactivation of the Infinea mPOS. System Mode Navigation Turn on the Infinea mPOS, and then tap System Mode on the keyboard. The menu options available are: •... -
Page 11: Info Hardware
User Manual — Infinea mPOS Plus Info Hardware System Mode—Settings • BATT shows the 1300mAh battery voltage Select the USB mode settings: • VBUS is the external power supply when plugged in * Host for connecting your iPad • Charge indicates the battery is charging * Device •... -
Page 12: Bluetooth Mode
User Manual — Infinea mPOS Plus Bluetooth Mode Select the Bluetooth mode: * Enabled * Disabled Enter the Mac address. The Bluetooth name and password pairing appears fw update mode: enabled addr: 68AAD201C831 name: pp1115000104 pass: 0000 8. Auto Off - Select one of the following:... -
Page 13: Test Display
User Manual — Infinea mPOS Plus Test Display Test Keyboard To adjust the display contrast, tap the Up or Down buttons for To test your keyboard, tap any key on the keypad to confirm the percentage you desire. The current percentage display recognition with Infinea mPOS. -
Page 14: Test Keyboard
User Manual — Infinea mPOS Plus Test MSR Test SCR To test the magnetic strip reader, swipe an appropriate card To test the smart card reader, insert a smart card in the card face down, in either direction, through the MSR reader. -
Page 15: Test Font0 And Font1
User Manual — Infinea mPOS Plus Pair with a Bluetooth-Compatible Test Font0 and Font1 Device • To test the fonts loaded on the Infinea mPOS, tap the Clear button to exit. Once the unit is charged, tap the Power button to turn it on. -
Page 16: Nfc Led Status Indicators
User Manual — Infinea mPOS Plus NFC LED Status Indicators Status/ Description Visual Indicator Event Not ready Reader is not turned on or power is not available Idle First indicator blinks every five seconds. Reader powers on, but not ready to read a card. -
Page 17: Scan Barcodes
User Manual — Infinea mPOS Plus Scan Barcodes Accept NFC Payments Scanning barcodes may vary based on the application The Infinea mPOS built-in tag/card reader allows you on your iOS device. Verify the correct procedure to accept near-field communication (NFC) payments. -
Page 18: Read Smart Cards
User Manual — Infinea mPOS Plus Read Smart Cards Read Magnetic Stripe Cards Before using the smart card reader, verify the correct Before using the MSR reader, verify the correct procedure with the Third-Party application developer. procedure with the Third-Party application developer. -
Page 19: Service The Infinea Mpos
• Do not allow the battery to fully discharge. • Do not attempt to remove the battery from the unit. Note: If the battery is fully depleted and in Tamper Detect mode, contact your Infinite Peripherals account representative for reactivation. -
Page 20: Troubleshooting
User Manual — Infinea mPOS Plus Troubleshooting The following troubleshooting guidelines assist you in the successful installation and configuration of your Infinea mPOS. If you have issues, verify your unit is turned on and sufficiently charged. After power and battery charge are both confirmed, https://ipcmobile.com/devices. - Page 21 User Manual — Infinea mPOS Plus Troubleshooting (continued) Issue Possible Cause Resolution Smart Card Reader No data is returned Card was not inserted correctly Insert the smart card again when card is swiped Smart card is unreadable Run a test transaction using a different smart card under the Test SCR Unit is in a tampered state option to determine if the card may be defective.
-
Page 22: Warranty
NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of. Infinite Peripherals, Inc does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Infinite Peripherals, Inc reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Infinite Peripherals, Inc to determine whether any such changes have been made. -
Page 23: Symbols
User Manual — Infinea mPOS Plus Symbols Symbol Description Refer to the instructions before using this product Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules... - Page 24 User Manual — Infinea mPOS Plus...
