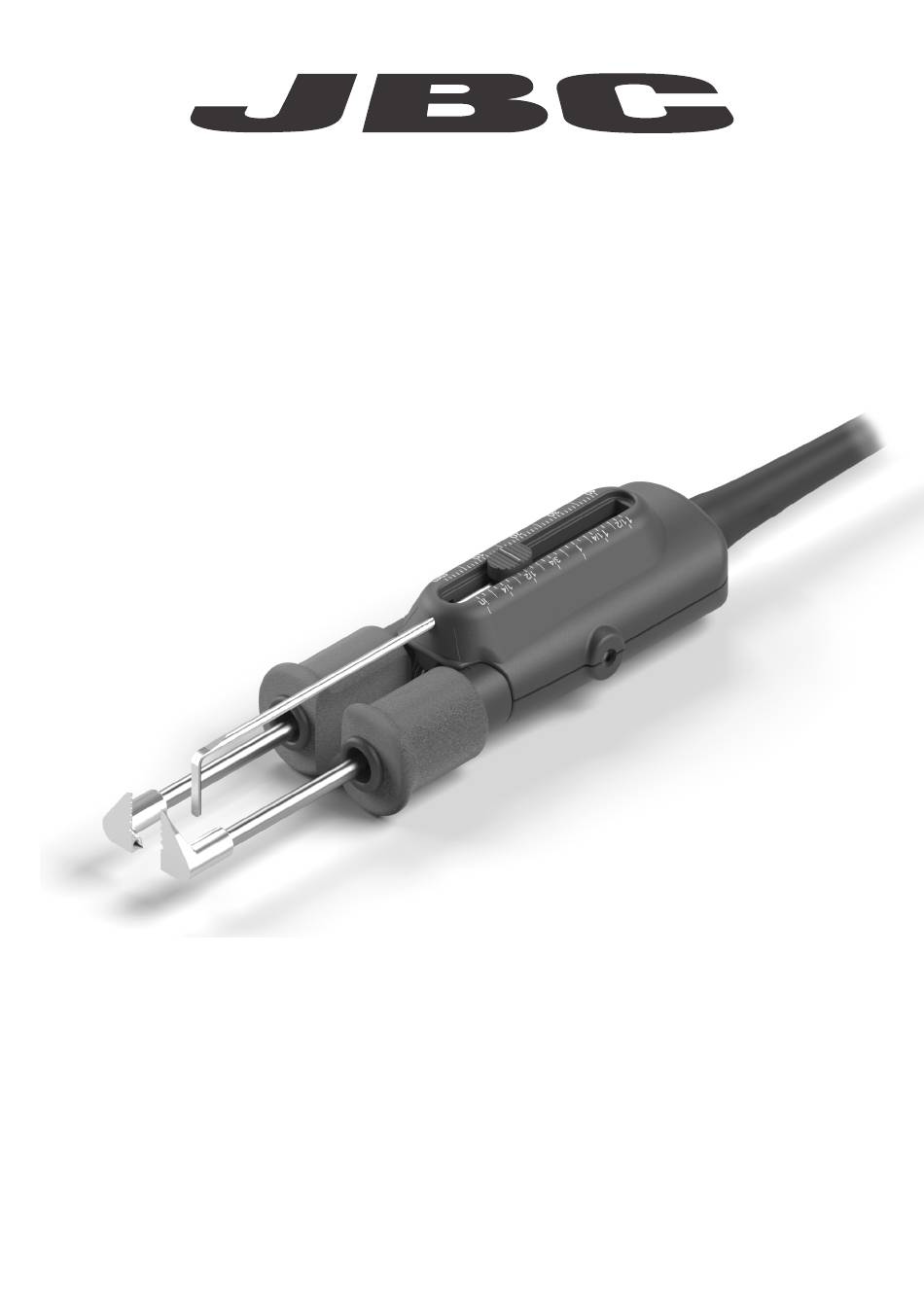

- Page 1 INSTRUCTION MANUAL INSTRUCTION MANUAL WS440 High-Temperature Wire Strippers Ref. WS440-A...
-
Page 2: Table Of Contents
Index Page 1. Packing List ........................3 2. Safety ..........................4 3. Features & Connections ....................5 4. Changing Cartritges ....................... 6 5. Adjustable Strip Gauge ....................7 6. Stripping a Wire ....................... 7 7. Changing Grips ........................ 8-9 8. Accesories ......................... 10 9. -
Page 3: Packing List
Packing List The following items are included: WS440 High-Temperature Wire Strippers ..................1 unit Ref. WS440-A Metal Brush..........1 unit Manual ..........1 unit Ref. 0022793 Ref. 0023034 w w w.jbctools.com INSTRUCTION MANUAL WS440 High-Temperature Wire Strippers Ref. WS440-A... -
Page 4: Safety
Safety Warning - Do not touch the blade or the metal parts arround. - Do not allow the blade be close to flammable materials. - Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm. - This appliance can be used by children over the age of eight and also persons with reduced physi- cal, sensory or mental capabilities or lack of experience provided that they have been given adequa- te supervision or instruction concerning use of the appliance and understand the hazards involved. -
Page 5: Features & Connections
Features and Connections WS Control Unit (Required but not USB Connector supplied) Equipotential connector Power Socket Main switch Fuse W440 Cartridges Stand cable (Required but not Ref. 0011283 supplied) WS440 Stand High-Temperature Ref. WS-SA Wire Strippers (Required but not supplied) Ref. WS440-A... -
Page 6: Changing Cartritges
Changing Cartridges Cartridge electric connection screw Mark Important: It is essential to insert the cartridges up to the mark for a proper connection. WARNING: It is essential to tighten the screws Make sure both cartridges are equally for the tool to function. inserted. -
Page 7: Adjustable Strip Gauge
w w w.jbctools.com Adjustable Strip Gauge Adjust the strip gauge according to your stripping requirements. Strip Gauge Knob Strip Gauge Stripping a Wire 1. Align 2. Close Place the wire touching the strip gauge. Pinch the wire with the blades acording to the diameter of the wire to be stripped. -
Page 8: Changing Grips
Changing Grips 1. Insert the slide-on tabs into the new grip. new grip tabs 2. Place the tabs inserted into the grip at the top of Tabs the handle. Grip... - Page 9 w w w.jbctools.com 3. Push the grip with the tabs onto the handle. 4. To remove the tabs, hold the grip and pull them out. Use pliers if necessary. Hold this way so that the tab can slide...
-
Page 10: Accesories
Accessories Grips Ref. 0023533 WS440 High- Temperature Wire Stripper... -
Page 11: Notes
w w w.jbctools.com Notes... -
Page 12: Specifications
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
