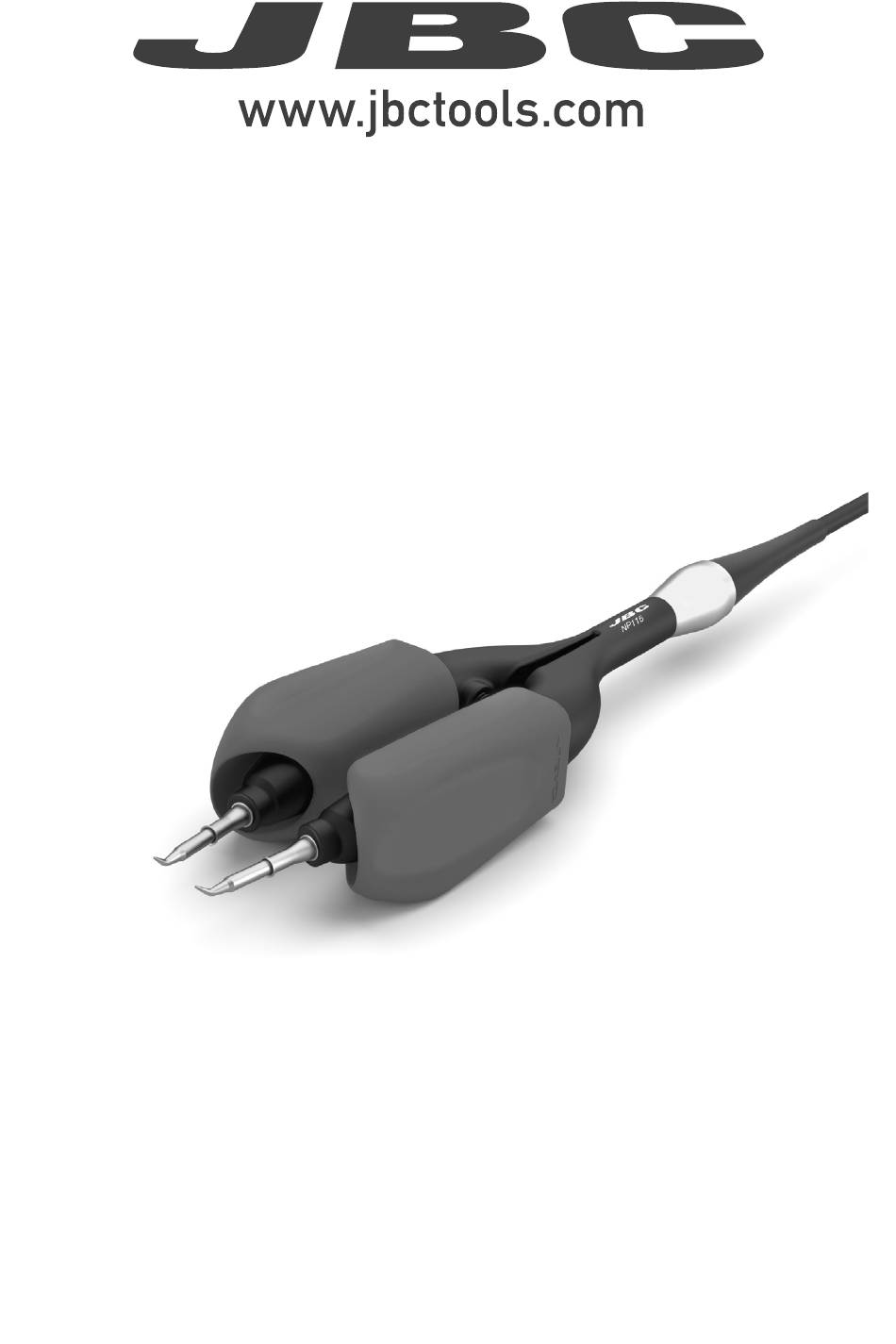

- Page 1 INSTRUCTION MANUAL NP115 Nano Tweezers...
-
Page 2: Packing List
This manual corresponds to the following reference: NP115-A Packing List The following items are included: N1738 Sleeves for NP105 & NP115 Tweezer (one pair) Nano Tweezers ........1 unit Manual ............1 unit Ref. NP115-A Ref. 0029758 Connections NP115 Nano Tweezers... - Page 3 Change the sleeves by pulling the worn ons out and by pushing the new ons onto the tweezer arms. Tweezers Arm 100 mm Sleeve N1738 80 mm NT115/NP115 60 mm Changing Grips N6079 NT115/NP115 50 mm Removing Grips Cutter 40 mm Make a length-ways cut.
-
Page 4: Changing Cartridges
Reference Reference Ring Ring Compatible Cartridges The Nano Tweezers NP115 and AN115 work with C115 cartridges. Find the model that best suits your 0,2 x 0,1 soldering needs on www.jbctools.com ø 0,3 Ø2,5 Ø2,5 Tweezer... - Page 5 The Pedal is frequently used to rework components with tweezers. NP115 JBCs nano tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using a pedal connected to JBC´s NAS station.
- Page 6 For this operation JBC´s desoldering station DSS is needed. Manual Solder Paste Dispensing Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended. NT105 Selected 350ºC Power...
- Page 7 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm 60 mm Placing Do not press the pedal. 50 mm Use the tweezers to position the component on the previously tinned pad. 40 mm Note: The inactive tool prevents the component from heating up prematurely.
- Page 8 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 9 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 10 Notes...
-
Page 11: Specifications
- color gris 200 mm Specifications 130 mm 130 mm NP115 Nano Tweezers Ref. NP115-A 100 mm - Max. Power Per Cartridge: - Cable Length: 120 cm / 47.24 in - Total Net Weight: 47 g / 0.104 lb... - Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
