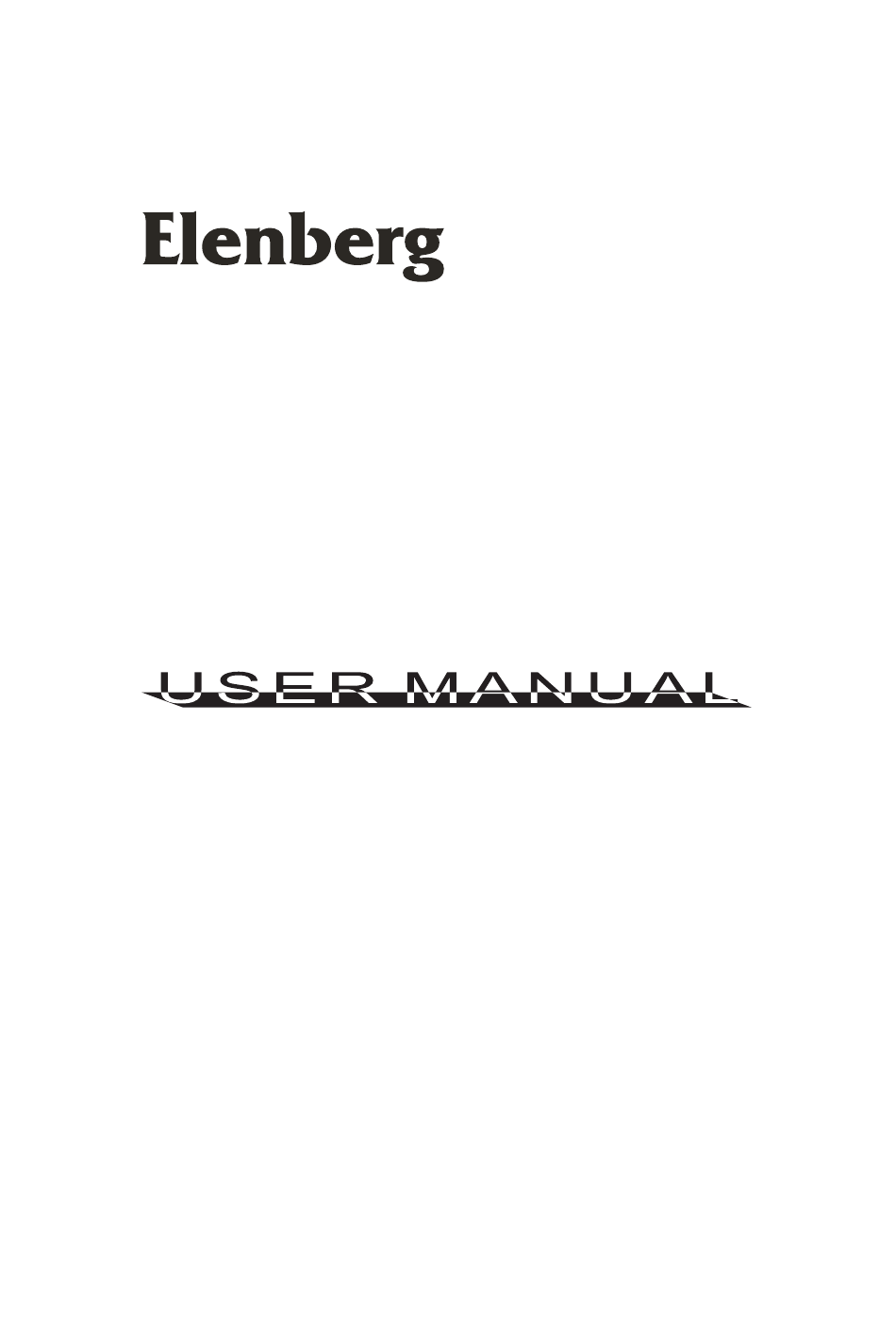

- Page 1 DVD Player DVDP-2445...
-
Page 2: Table Of Contents
Contents Features........................1 For your Attention......................2 Accessories.........................2 Panel..........................3 Connection........................3 System Setup......................4 Play...........................7 Troubleshooting......................9 Specification....................10 Features Thank you for purchasing our product. Please go through this manual carefully before connection and operation. Please keep this manual for future reference. DVD player is a new generation home player which can produce high quality video and audio. -
Page 3: For Your Attention
For Your Attention IMPORTANT NOTES Please read through the manual carefully before connection and operation. Do not open the cover or touch any internal components for non-professional Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time). -
Page 4: Panel
Panel Front panel 1 POWER 4 PAUSE 7 NEXT 2 OPEN/CLOSE 5 STOP 8 MIC JACK 3 PLAY 6 PREV Rear panel: U/Pb V/Pr VIDEO SCART 2------MIC VOL ------1 MIX L MIX R COAXIAL S-VIDEO OPTICAL 5.1 CH AUDIO OUT 1 5.1CH AUDIO OUT 4 OPTICAL OUT 5 VGA... -
Page 5: System Setup
Connection Audio connection system Two types of audio output systems: analog audio and digital audio. Analog audio includes 2- 2CH Audio Intput 5.1CH analog Audio Input Digital Audio Input channel stereo and Dolby AC-3 5.1 channel output. Digital audio includes optical and coaxial COAXIAL OPTICAL output. - Page 6 System Setup AUDIO SETUP PAGE: ANALOG AUDIO SETUP: DOWNMIX: LT/RT: The audio out is Left and Right channel formatting even if the original sound is 5.1CH format. STEREO: The audio out format is stereo even if the original sound is 5.1CH format. 3D SURROUND: The audio out is virtual surround sounds (only for 5.1CH player) OFF: Turn off DOWNMIX function.
- Page 7 System Setup VIDEO SETUP PAGE COMPONENT V IDEO: OFF: Set video output to the composite. YUV: Set video output in analog component video format when connecting to Y/U/V terminals. P-YUV: Set progressive YUV signals. Connection same as YUV. RGB: Set video output in Red/Green/Blue format when connecting to SCART terminal. P-RGB: Progressive RGB signals.
-
Page 8: Play
Play Basic operation Text Text Text O PEN/C LOSE PLAY/PAUSE M UTE STOP FAST B ACKWARD FAST F ORWARD STANDBY PREVIOUS NEXT Open/close Press OPEN/CLOSE button when power on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press OPEN/CLOSE again to close the disc tray and the unit starts playing automatically. - Page 9 Play Press this button for quick forward search Press this button for quick rewind search SLOW When playing SVCD, VCD, DVD discs, press SLOW select slow speed playing.(option) When playing DVD disc, press PREV to the previous chapter . When playing SVCD, VCD, CD disc, press PREV to the previous track. When playing DVD disc, press NEXT to the next chapter.
-
Page 10: Troubleshooting
Play PLAY PICTURE CD DISC Press [ ], 12 small pictures will show on the TV screen. Press direction key to select the desired picture. Use direction key to select SLIDE SHOW, then press [ENTER] to start random play. Use direction key to select MENU, then press [ENTER] to enter instruction menu. Instruction menu as follows: [PROGRAM]: to change picture transform mode, [ ]: entering picture preview mode, [ ]: previous... -
Page 11: Specification
Specification AC ~100-240V/50-60Hz Power supply Less than 20W Power consumption PAL/NTSC TV system 650nm, 780nm Laser wave length DVD: 4Hz~22kHz 48kHz PCM 4Hz~ 44kHz 96kHz PCM Audio f requency range 4Hz~20kHz 90dB S/N ratio Audio dynamic range 90dB Operating conditions Temperature: 0~40 , operation flat, horizontal 1.0V... - Page 12 DVDP-2445...
- Page 16 4:3 PS (PanScan): 4:3 LB (LetterBox): 16:9: Wide-squeeze: Используйте данную настройку, когда устройство подключено к широкоэкранному телевизору...
- Page 18 • KAРАОКЕ: (Данная функция присутствует не у всех моделей). Вывод КАРАОКЕ можно изменять в меню настроек. Существует два режима вывода: ON (Вкл.) или OFF (Выкл.) Отрегулируйте мощность микрофона до минимального уровня. Вставьте шнур микрофона в • разъем для микрофона. С помощью ручки громкости микрофона отрегулируйте его громкость. •...
