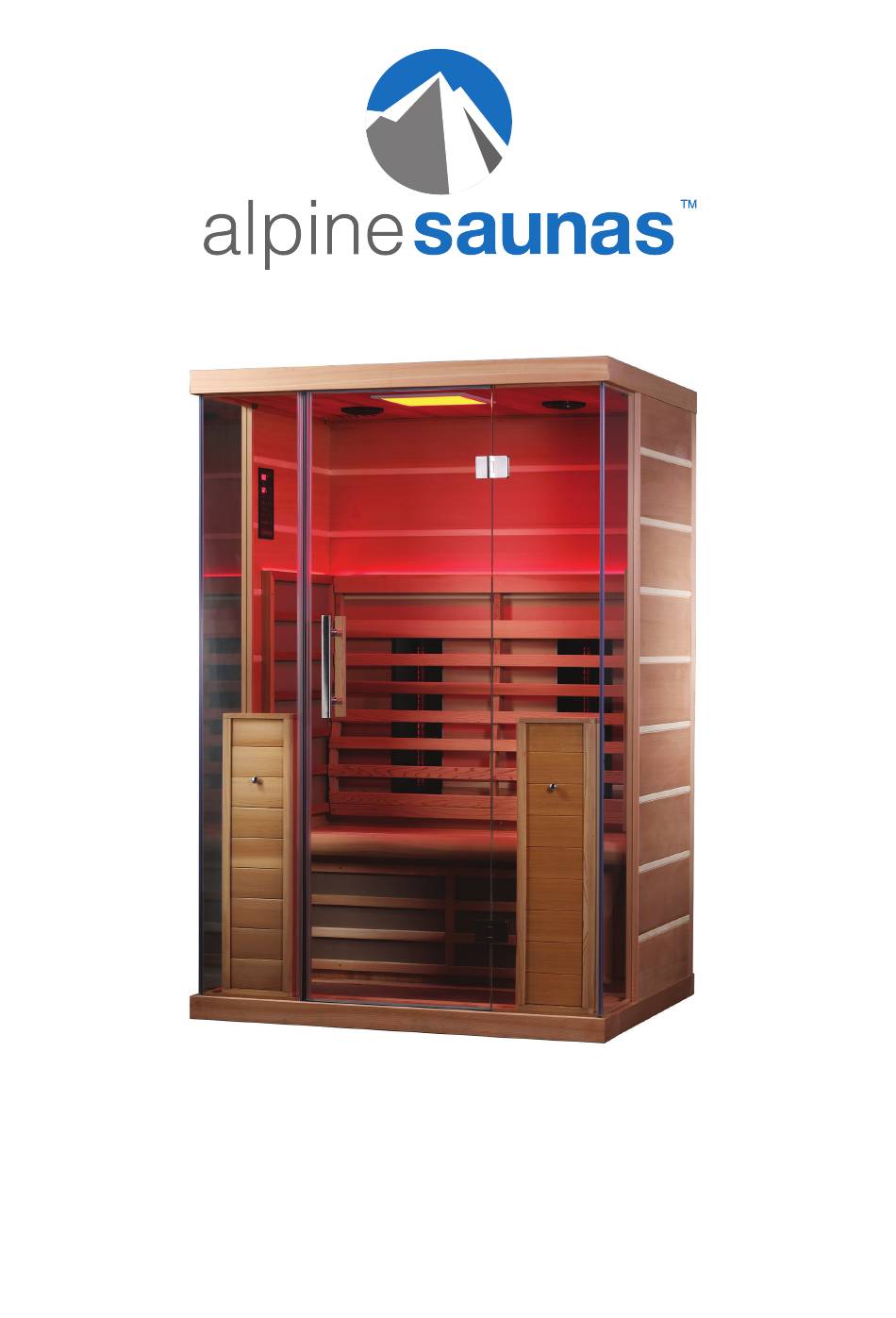

  • Page 1 Indoor Infrared Sauna (HY-YM6008) Installation & Owners Manual...

  • Page 3: Table Of Contents

    CONTENTS Important Safety & Operational Cautions..........Parts Check........................Installation Requirements..................Assembly Instructions .................... Control Panel Operation..................Recommendations for Use................... Cleaning & Maintenance..................Troubleshooting......................

  • Page 4: Important Safety & Operational Cautions

    IMPORTANT SAFETY & OPERATIONAL CAUTIONS PLEASE READ ENTIRE MANUAL THROUGH BEFORE PROCEEDING WITH INSTALLATION. SAFETY 1. Read and follow all instructions carefully. 2. When installing and using this electrical equipment, basic safety precautions should always be followed. 3. Do not allow children to use the sauna unless they are closely supervised at all times.
  • Page 5 CAUTIONS 1. DO NOT use any type of cleaning agents on the interior of the sauna. 2. DO NOT stack or store any object on top of or inside the sauna. 3. If the power supply cord becomes damaged ensure power is off, cable is unplugged and retailer is contacted.

  • Page 6: Parts Check

    PARTS CHECK Installation Parts 1x Back Panel 1x Left Side Panel 1x Right Side Panel 1x Bottom Floor Panel 1x Roof Panel 1x Roof Panel Cover 1x Bench Seat 1x Under Bench Heater 4x Glass Panels + 2 plastic trim 1x Glass Door 1x Door Handle Set 2x Front Heaters + Bulbs &...

  • Page 7: Installation Requirements

    INSTALLATION REQUIREMENTS 1. Your sauna can be plugged into a regular house socket but will draw close to 10A. Try to plug into a electrical house circuit that does not share other large appliances. 2. Install the sauna on a hard, level surface. 3.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Simply place the floor panel on a flat level surface. The tiled area is the front of the sauna.
  • Page 9 Place the back panel on the bottom floor panel, lining it up against the raised support. Have someone hold the back panel until one of the side-panels has been installed.
  • Page 10 ASSEMBLY INSTRUCTIONS Place the left and right side panels onto the floor panel one at a time, aligning them with the back panel. With a side panel flush, use the 6*55mm flat head screws (3 for each side panel) to fix the back panel to each side panel tightly. 6*55mm Screw...
  • Page 11 Slide the bench heater panel down into place following the support guides on the side walls. The heater grill should face towards the front of the sauna. Connect the bench heater cable to the sauna via the provided connection cable.
  • Page 12 ASSEMBLY INSTRUCTIONS Install the bench seat over the bench heater and fix each side down using 2x 4*40mm screws. A long screw driver is required to screw downwards as the back panel heater can get in the way.
  • Page 13 Insert a glass panel into the groove slot provided along the edges of the bottom panel and the side panel. Add the plastic trim onto the glass and centre it to allow 1cm at the top and bottom of the panel as to not interfer with the groove.
  • Page 14 ASSEMBLY INSTRUCTIONS Place the top roof panel onto the sauna while feeding the power cables up through the openings provided. Gently slot the roof over the glass panels. Note that if the roof does not sit down flush, the plastic trim may be interefing and either needs to be adjusted or trimmed down.
  • Page 15 Install the heater plugs and control panel / lighting plugs as per the diagrams above. Lay the roof cover over the top roof panel and attach down with the 18x tacks provided.
  • Page 16 ASSEMBLY INSTRUCTIONS Install the front glass door using the hinges provided. This step takes extra care and two people are required. Screw in the hex screws lightly and then have the second person hold the door as high up as the hinges will allow, then screw them in tight.
  • Page 17 Attach the door handles together (through the glass door frame) using the 6*75mm door screws provided. The wooden handle should be on the inside of the door (inside the sauna) to avoid it getting hot.
  • Page 18 ASSEMBLY INSTRUCTIONS Two front heaters are included which first need the bulbs installed. Handle the bulb with care- protective gloves are recommended. Unscrew the 4 small screws to remove the black glass front (figure A). Gently insert (either way around) the glass bulb into the socket at one of the ends and push in slightly against the spring to allow the bulb to fit into the opposite end socket (figure B).
  • Page 19 Place the wooden protective covers over the glass side of the front heaters. Align the cover so that the bottom is flush with the bottom of the heater (this will allow for a small gap at the top of the front heater for air flow - see figure D).

  • Page 20: Control Panel Operation

    CONTROL PANEL OPERATION Overview of Control Panel...
  • Page 21 1. Powering on/off Plug the main power cord into the wall outlet. Press the “Power” button once. The control panel should beep and is now in standby mode, but the heaters are not on by default. To turn the sauna off, hold the power button down for 5 seconds. 2.
  • Page 22 CONTROL PANEL OPERATION 4. Temperature Adjustment Temperature can be set between 20 - 70°C. Press temp “UP/DOWN ARROWS” to adjust temperature. Temp value will increase or decrease by 1 degree at a time (hold down the buttons to speed up the increments). 5 seconds without adjustment will exit the temp adjustment mode.
  • Page 23 6. Pre-Setting (Turning on the Sauna at a Desired Time) To pre-set a time for the Sauna to turn on and start heating follow these steps: 1. Turn the sauna off and back on again. Then set the desired temperature and allow it to time out back to the default temp screen. 2.

  • Page 24: Recommendations For Use

    RECOMMENDATIONS FOR USE RECOMMENDATIONS FOR USE Set up the desired session temperature and time using the control panel. Allow approximately 20-30 minutes for the sauna to warm up before beginning a session. Hydrate yourself. Enjoy the Sauna. We recommend a session time of 30-45 minutes.

  • Page 25: Cleaning & Maintenance

    CLEANING & MAINTENANCE Before using your infrared sauna for the first time, clean the inside of the sauna with a damp cloth. If the smell of the sauna is strong at first, that is normal and please open the door while the sauna is working. The smell will diminish over time.

  • Page 26: Troubleshooting

    TROUBLESHOOTING If reading through this manual and following the instructions has not resolved your issue, please contact Alpine Spas: EMAIL service@alpinespas.co.nz OR PHONE: 0800 99 33 88 SELECT TECHNICAL SUPPORT FROM THE OPTIONS Support is available Monday to Friday: 9.00am - 5.00pm...
