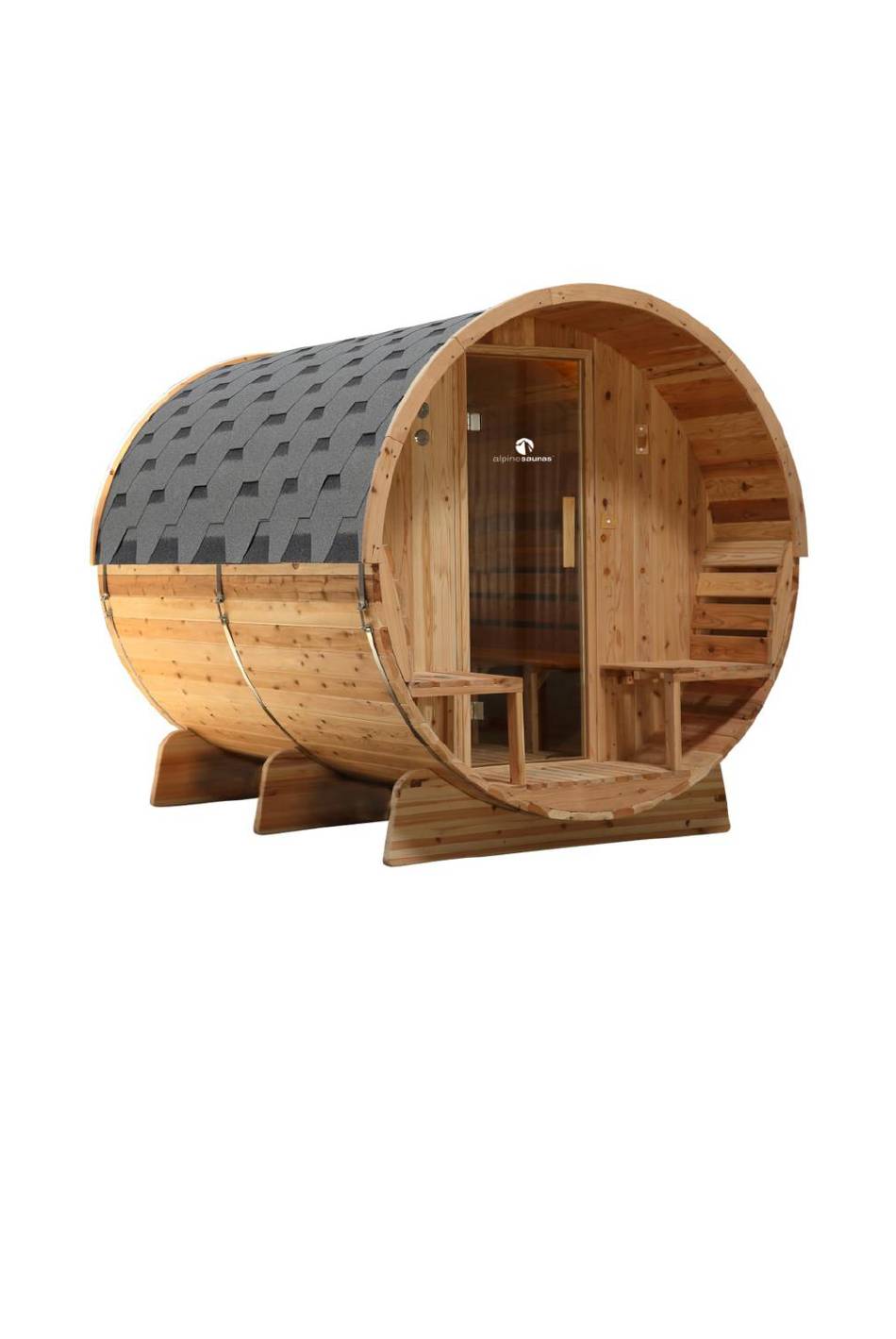

- Page 1 CEDAR BARREL SAUNA Installation Manual...
-
Page 2: Parts List
Instructions before assembly 1. Ensure the foundation is level and can withstand the weight of the barrel sauna without subsiding. 2. The Sauna Heater and Light require installation from a certified electrician. Tools Screw drivers set, power drill set, measuring tape, level, mallet, socket set. Parts list 1. -
Page 3: First Considerations
18. Outside Bench support beam: 2pcs 19. Inside bench support beam: 2pcs 20. Triangle wooden piece ---2pcs 21. Heater Fence --1set 22. backrest --- 4pcs 23. Door locker unit ---1set 24. Towel rack ---1 set 25. Magazine reack ----1set 26. Cup holder ----1set 27. - Page 4 OUTDOOR INSTALLATION RECOMMENDATIONS Take caution to prevent the wind from catching and breaking the glass door. NOTE: While your Barrel Sauna is designed for outdoor use, it is important to build the sauna in accordance with these instructions to minimize water seepage into the sauna.
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Assemble the base using the 3x ‘Cradle Base’ supports and 1x ‘Bottom Stave’ (oiled with two drain holes). Fit the bottom stave into the cradle bases using the provided grooves on the oiled side of the stave (the stave should hang over the front cradle further than it does over the back cradle). - Page 6 3. Assemble the ‘Back Panel Parts 1, 2 & 3’ flat on ground with non-oiled side & bench supports right side up. Back Panel Part 2 Rear Middle Panel Back Panel Part 1&3 Rear Side Panel Left & Right (Half crescent with no vents or holes.) Secure the back panel assembly together using 4x ‘5*70mm Screws’...
- Page 7 4. Lay the ‘Front Panel Parts 1, 2 & 3’ flat on the ground with non-oiled side right side up. Front Panel Part 1 Left side Panel (Half crescent with no vents or holes.) Front Panel Part 2 Middle Glass Door Front Panel Part 3 Right Side Panel (Half crescent with vent hole at bottom,...
- Page 8 The cable needs to exit out through the bottom of the Sauna. To achieve this, the front panels should be slotted together but NOT screwed and then placed into position on the staves (please employ help keeping the front wall upright and secure).
- Page 9 5. Insert the Light Cable through the Light Hole and down through the provided cable channel in the ‘Front Panel Part 3’ Light Hole Cable Channel 6. Ensure the light cable sits correctly in the channel and Secure the ‘Front Panel Parts’...
- Page 10 7. Install 9x ‘Regular Staves - Oiled’ on each side of the barrel. (See page 3 for diagram on staves). Use 36x ‘4*40mm screws’ to fix the 18pcs staves to the front & back panel. 8. Install 15x ‘Regular Staves – Non-Oiled’ on each side forwards the top but DO NOT fasten with screws yet.
- Page 11 10. Install the ‘glass door’ into the door frame using the ‘door hinges’ using 2x ‘6*55mm, flat head screws’. Install the ‘door handle’. Install the ‘door locker unit’ with 2x ‘3*25mm screws’ 11. Install the Hook 4x ‘3*30mm Screws’ Install the Cup holder using 2x ‘4*40 Screws’...
- Page 12 12. See separate Steel strip assembly Document. Caution! Sharp Edges! Protective gloves are advised.
- Page 13 13. Install the benches inside in the barrel. Place the long benches onto the sides of the barrel using the supports at the front and back panels. In the center on the benchs underneath, install the 20cm ‘Inside bench support beam’ onto the side of the barrel wall using 2x ‘4*40mm Screws’.
- Page 14 14. Outside Bench Seat Assembly A. Fix the ‘Outside bench support beam’ (30cm) to the side of the barrel level with the corresponding support on the front wall. Secure with 2x ‘4*40mm’ screws. B. Place the bench leg support into the outside bench seat.
- Page 15 C. Place the bench seat and leg support onto the support beams. Secure the leg support into the barrel using 2x ‘4*40mm Screws’ 15. Place the 3pcs floors and fix them with screws. 16. Heater Fence Assembly: 4pcs 6*35mm flathead screws needed.
- Page 16 17. Heater Assembly – please refer to the manufacturer’s instructions. After heater installation, pls fix the heater fence to the wall with ‘4x 4*40mm’ sharpened head screws. 18. Install the lamp & lamp holder. 19. Install bitumen roof Bitumen roof installation Install the triangle wood piece to the barrel with 3*30mm screws at both sides.
- Page 17 Example Left Side Row 1: G2 + A + A Row 3: G1 + A + A...
- Page 19 20. Install the ‘Front and Back Edging’ using 2x ‘3*30mm screws’ per piece. These are numbered accordingly.
