Appendix C: Output Cable Whips

Note: All cable assemblies are unterminated unless otherwise specified.
For more connectorized output harness lengths and color combinations, please contact Comm/net Systems sales.
C.1 40A Output Connector Cable Whips
(For 016-2121-10, 016-2122-10, 016-2123-10, 016-2124-10 Models)
TAbLE 8. 37A OUTPUT CONNECTOR CAbLE WHIPS
AWG LENGTH
7'
#10 12'
7'
#12 12'
7'
#14 12'
TPA 250 FUSE PANEL TPA 250 FUSE PANEL
SETUP AND OPERATION MANUAL SETUP AND OPERATION MANUAL
PAGE 18 - PRODUcT SPEcIFIcATIONS PAGE 18
COLOR PART NUMBER
Red/Black 745-420-10
Blue/Black 745-422-10
Red/Red Tracer 745-437-10
Blue/Blue Tracer 745-433-10
Red/Black 745-290-10
Blue/Black 745-424-10
Red/Red Tracer 745-438-10
Blue/Blue Tracer 745-434-10
Red/Black 745-421-10
Blue/Black 745-425-10
Red/Red Tracer 745-298-10
Blue/Blue Tracer 745-299-10
Red/Black 745-293-10
Blue/Black 745-294-10
Red/Red Tracer 745-197-10
Blue/Blue Tracer 745-198-10
Red/Black 745-436-10
Blue/Black 745-427-10
Red/Red Tracer 745-432-10
Blue/Blue Tracer 745-435-10
Red/Black 745-296-10
Blue/Black 745-429-10
Red/Red Tracer 745-227-10
Blue/Blue Tracer 745-228-10
(RTN)
(-48V)

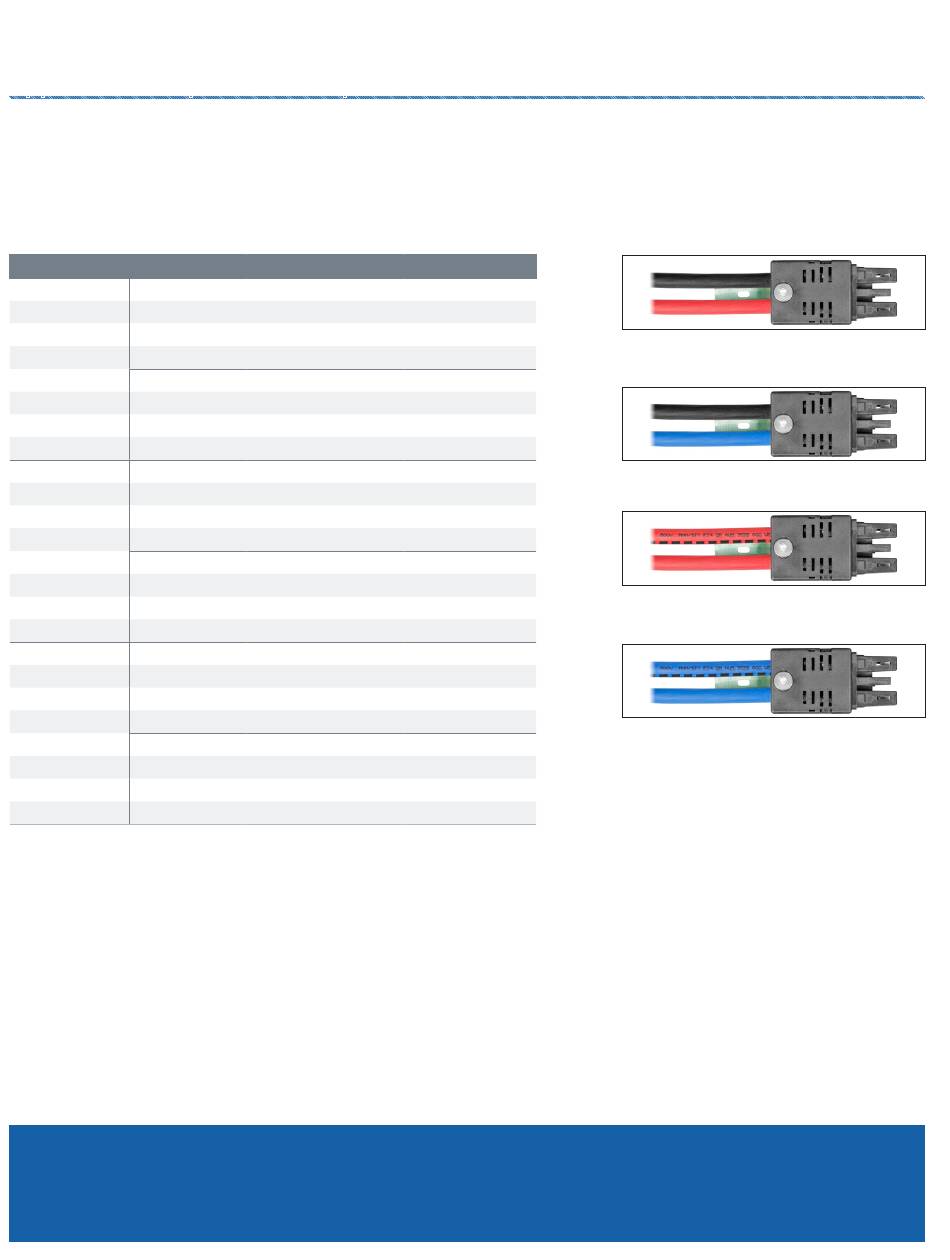

Red/black 40A connector cable assembly
(RTN)
(-48V)
Blue/black 40A connector cable assembly
(RTN)
(-48V)
Red/red tracer 40A connector cable assembly
(RTN)
(-48V)
Blue/blue tracer 40A connector cable assembly
