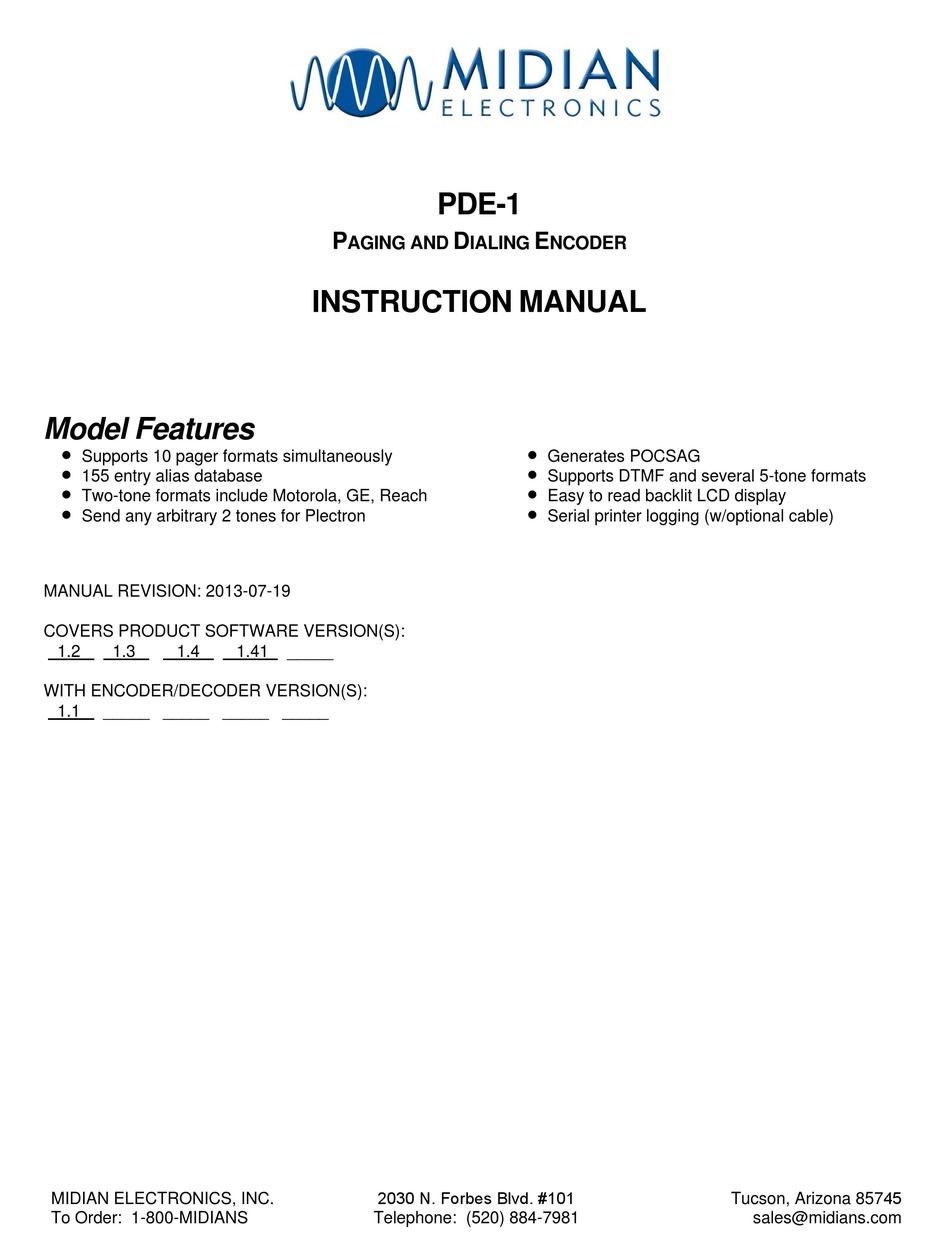

Midian PDE-1 Instruction Manual

Paging and dialing encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model Features
Supports 10 pager formats simultaneously
155 entry alias database
Two-tone formats include Motorola, GE, Reach
Send any arbitrary 2 tones for Plectron
MANUAL REVISION: 2013-07-19
COVERS PRODUCT SOFTWARE VERSION(S):
1.2
1.3
1.4
WITH ENCODER/DECODER VERSION(S):
1.1
_____ _____ _____ _____
MIDIAN ELECTRONICS, INC.
To Order: 1-800-MIDIANS
P
AGING AND
INSTRUCTION MANUAL
1.41
_____
2030 N. Forbes Blvd. #101
Telephone: (520) 884-7981
PDE-1
D
E
IALING
NCODER
Generates POCSAG
Supports DTMF and several 5-tone formats
Easy to read backlit LCD display
Serial printer logging (w/optional cable)
Tucson, Arizona 85745
sales@midians.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDE-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Midian PDE-1

Summary of Contents for Midian PDE-1

  • Page 1 Send any arbitrary 2 tones for Plectron Serial printer logging (w/optional cable) MANUAL REVISION: 2013-07-19 COVERS PRODUCT SOFTWARE VERSION(S): 1.41 _____ WITH ENCODER/DECODER VERSION(S): _____ _____ _____ _____ 2030 N. Forbes Blvd. #101 MIDIAN ELECTRONICS, INC. Tucson, Arizona 85745 To Order: 1-800-MIDIANS Telephone: (520) 884-7981 sales@midians.com...

  • Page 2: Specifications

    PECIFICATIONS Voltage/Current Mechanical Operating Voltage (nominal) ......... 12 VDC Dimensions: ........2⅞"H x 6½W x 8¾"L Operating Voltage (min-max) ......12-15 VDC Operating Temp ..........0° to 50° C Operating Current (standby @12 VDC) ....100 mA Operating Current (peak @15 VDC) ...... 500 mA Encode Formats AVCALL, GE, REACH, MOTOROLA QUICK CALL 1 Inputs...

  • Page 3: Table Of Contents

    IDIAN LECTRONICS NCORPORATED TABLE OF CONTENTS ........................... 2 PECIFICATIONS OVERVIEW ..........................4 INSTALLATION INSTRUCTIONS ....................4 ..........................4 ADIO NTERFACE ..........................4 UMPER ETTINGS ............................4 DJUSTMENTS OPERATION ..........................5 ..........................5 ASIC PERATION ............................ 6 ALLING ..........................6 ATABASE ...........................

  • Page 4: Electronics Incorporated

    NCORPORATED 2 OVERVIEW AUDIO INPUT/RX IN (P1-8) [Blue] The PDE-1 is a multi-format paging and dialing This connection is only required if you wish to hear encoder. It will support up to 10 different formats radio audio through the PDE speaker. Connect to a simultaneously from the over 35 available.

  • Page 5: Operation

    IDIAN LECTRONICS NCORPORATED OUTPUT LEVEL Use a service monitor to measure the modulation level generated by the unit. Cause the unit to generate tones by first pressing <SEND> at the CALL A UNIT prompt and then typing in 1000010000 and pressing <SEND>. Adjust R51 so that the modulation level is at 2/3 of the maximum system modulation (typically 3.3 kHz).

  • Page 6: Callinga Unit

    IDIAN LECTRONICS NCORPORATED for when entering User Names or messages for 4.2 C ALLING POCSAG alpha pagers. 4.2.1 Automatic Pager Profile Selection Entering alphabetic characters using the numeric At this time, you may wish to connect the audio output keypad is easy. All of the letters of the alphabet appear (green wire) of the PDE to an amplified speaker so you above the numbers on the keypad.

  • Page 7: Speed Dial Feature

    User Name shown in the display. be to use the password. If you do forget the password, contact Midian for the reset procedure. In either case, after pressing the right <SCROLL> button, the left and right scroll indicators will appear on the bottom line.

  • Page 8: Lock Or Unlock Command

    IDIAN LECTRONICS NCORPORATED Code of the unit you wish to call. be prompted to fill in the information for that user such as User Name and CAP Code. See EDIT USER for Direct Alphanumeric Entry mode – Key in the User more information.

  • Page 9: Saved Messages Menu

    IDIAN LECTRONICS NCORPORATED Default: blank speed dial entries 0-9 correspond to the number keys 0-9. To associate a unit to a speed dial number, it must be in the user database. For each speed dial, simply locate the user in the database much in the same way SAVED MESSAGES MENU as placing a call to a unit.
  • Page 10 IDIAN LECTRONICS NCORPORATED displayed on the print logs, the time clock must be set. 5.5.3.5 Contrast setting The unit must remain switched-on at all times in Allows the display contrast to be adjusted for best order to keep track of the time. The clock must be set viewing.
  • Page 11 IDIAN LECTRONICS NCORPORATED 5.5.4.3 2-Tone type EUROSIGNAL 5.5.4.3.1 Format field Select the format matching the pager from among the ZVEI following: DZVEI AVCALL/QC1 2+2 DDZVEI CCIR REACH MOT GENERAL NATEL MOTOROLA A MODAT MOTOROLA B 5.5.4.4.2 1 Tone Time field MOTOROLA C Enter the duration of the 1 tone in milliseconds.
  • Page 12 IDIAN LECTRONICS NCORPORATED 5.5.4.6.2 2 Tone Time field follows: Enter the duration of the 2 tone in milliseconds. In the Profile Name: PULSE 2805 PLECTRON fast format, this is 250 ms. All 4 digits Pager Type: Pulse Tone must be entered. Format: 2805 Make Time:...

  • Page 13: Appendix

    This is used by the factory for product testing. Do not select this function unless directed to do so by Default: 04 * 100 milliseconds Midian Technical Support. 5.5.5.2 COR Polarity setting Note: If not using the Busy Lockout feature, you may leave the COR input unconnected.
  • Page 14 Midian technical support to determine if that is the cause. Solution: Remove any old user names that are no longer in service. If this is not possible, contact Midian for possible alternative products. INVALID CAP CODE Reason: The number of digits in the CAP code are DATABASE ERROR incorrect for the pager format being used.

  • Page 15: Tone Charts

    IDIAN LECTRONICS NCORPORATED AVCALL 2+2 PDE-1 AVCALL TONE SPEED DIAL EMPTY CODE CODE FREQ Reason: You have pressed a speed dial number, but 0312.6 there is no user associated with it. The user may have 0346.7 been deleted, or no association was ever made.
  • Page 16 IDIAN LECTRONICS NCORPORATED 6.2.4 Motorola 2-tone Charts MOTOROLA QUICK CALL 1 TWO PLUS TWO (2+2) The following Motorola 2-tone information is provided OR CODE TYPE “Y” for your convenience. PDE-1 TONE CODE CODE FREQ SERIES A 0398.1 0441.6 0489.8 0543.3 0602.6...
  • Page 17 IDIAN LECTRONICS NCORPORATED 6.2.7 5/6-tone Chart The following 5/6-tone information is provided for your convenience. 6.2.8 Pager Timing Charts 6.2.6 REACH 2-tone Charts The following timing information is provided for your The following REACH 2-tone information is provided convenience. for your convenience.

  • Page 18: Menu System Map

    IDIAN LECTRONICS NCORPORATED YSTEM...
