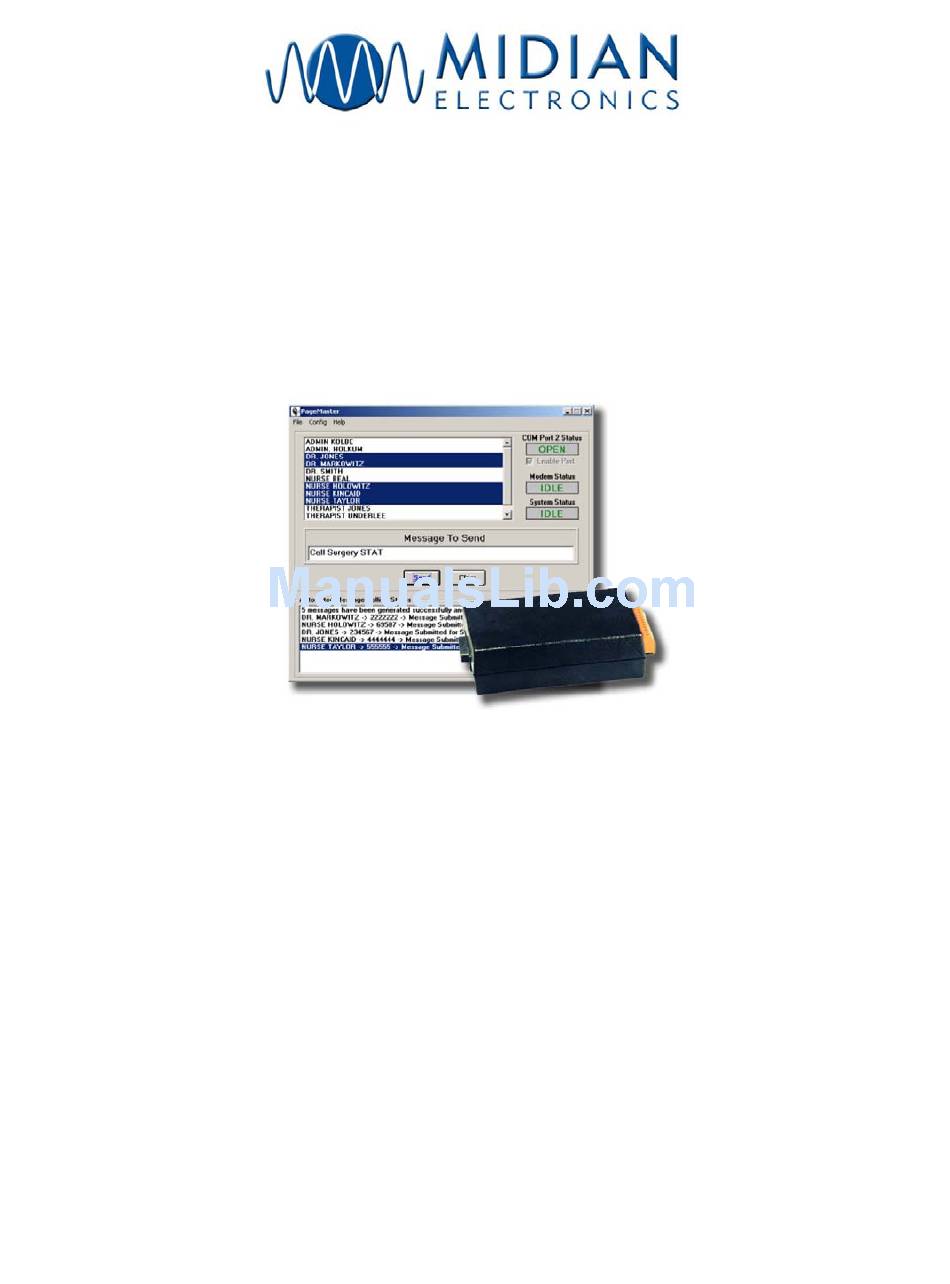

- Page 1 CAD-POCSAG PC BASED POCSAG ENCODER (Serial DB9 Version) CAD-POCSAGU PC BASED POCSAG ENCODER (USB Version) Manual Revision: 2012-05-09 Covers Firmware Revisions: CAD-POCSAG: 1.0 Covers Software Revisions: CAD-POCSAG: 2.5 & Higher Covers Hardware Revisions: CAD: 219F & Higher...
-
Page 2: Specifications
USB Version is ordered as CAD-POCSAGU. GENERAL INFORMATION Midian Electronics’ CAD-POCSAG enables the user to encode POCSAG pages to single or multiple pagers at one of three baud rates (512, 1200 or 2400). Files inserted into a network folder can also be encoded by the CAD-POCSAG. -
Page 3: Hardware Installation
P2-8 – Request To Send HARDWARE ALIGNMENT Output Level: To set the output level, command the CAD-POCSAG to send a lengthy page by typing a long message and sending to multiple pagers. Set R78 for a deviation of ±4.5 kHz at the transmitter. -
Page 4: Software Installation
2. After the new page appears click on the link in the main window labeled CAD Series Software. 3. This will open a page that lists all of our CAD products. Double-click on the link titled CAD-POCSAG (Page Master) > this will automatically start the installation program. -
Page 5: Product Programming
COR Polarity: This should match the active COR polarity of the radio. Data Polarity: This polarity is dependent upon the radio and can only be determined by experimentation. Key-Up Delay: This sets the delay from when the radio starts to transmit until the CAD-POCSAG encodes the POCSAG sequence. - Page 6 For more detailed instructions on how to use this product, please see the online help files after installing the product. These may be viewed by launching the CAD-POCSAG (Page Master) and going to Help > Contents. If you allow your mouse to hover over a data field or the label of a data field, you will see additional details and/or tips for that section.
-
Page 7: Operation
OPERATION Sending A Message: To send a POCSAG page select the client or clients to send the message to. Select a range of clients by selecting the first, holding the shift key, and selecting the last in the range. Multiple clients can also be selected by clicking on multiple clients while holding the control key. -
Page 8: Technical Notes
TECHNICAL NOTES Radio Compatibility: Midian has taken the utmost care to ensure the CAD integrates with the radio with minimal impact to the features of the radio. However, some features may not be available in the radio when a CAD is used. - Page 9 .47u .47u JP1:5 JP1:4 JP1:3 JP1:2 JP1:1 U5:5 P1:1 U3:5 U4:5 7.5K LMV324 LMV324 GROUND GROUND MIDIAN ELECTRONICS, INC. CAD-POCSAG DOCUMENT NAME U4:3 APPR SCHEMATIC DATE: 1995-12-30 DWN BY: SHEET PROJECT NUMBER 1 of 1 7219 2012-09-05 DESIGN: REV: COPYRIGHT ©...
- Page 10 This page intentionally left blank...
- Page 13 .47u .47u JP1:5 JP1:4 JP1:3 JP1:2 JP1:1 U5:5 P1:1 U3:5 U4:5 7.5K LMV324 LMV324 GROUND GROUND MIDIAN ELECTRONICS, INC. CAD-POCSAGU DOCUMENT NAME U4:3 APPR SCHEMATIC DATE: 1995-12-30 DWN BY: SHEET PROJECT NUMBER 1 of 1 7219 2012-09-05 DESIGN: REV: COPYRIGHT ©...
- Page 14 This page intentionally left blank...
