D Series Hardware Manual
Version 2.0.0.0
July 7, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Peavey D Series

Summary of Contents for Peavey D Series

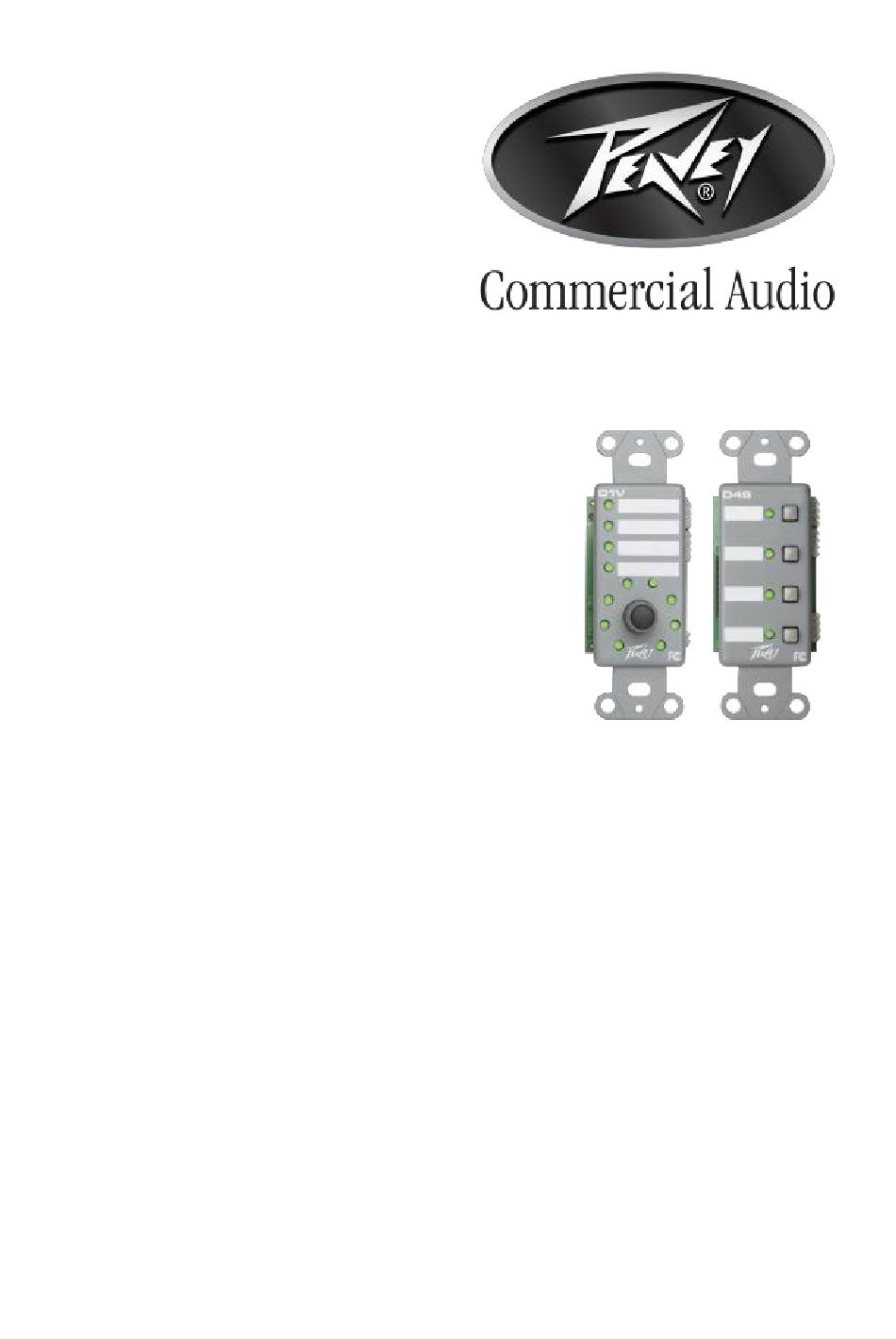

  • Page 1 D Series Hardware Manual Version 2.0.0.0 July 7, 2017...
  • Page 2 Copyright notice The information contained in this manual is subject to change without notice. Peavey Electronics is not liable for improper installation or configuration. The information contained herein is intended only as an aid to qualified personnel in the design, installation and maintenance of engineered audio systems. The installing contractor or end user is ultimately responsible for the successful implementation of these systems.

  • Page 3: Table Of Contents

    Applications .............................. 9 D1V front and rear panel .......................... 9 D4S front and rear panel ........................10 Chapter 4 Installing and configuring the D series ..........13 Introduction .............................14 Connecting up a D series panel ......................15 Setting the device ID for a panel ......................17 Setting end of line (EOL) terminations ....................24...

  • Page 5: Chapter 1 Important Safety Instructions

    C h a p t e r 1 Important safety instructions In This Chapter Safety warnings ....................2 July 7, 2017 Version 2.0.0.0...

  • Page 6: Safety Warnings

    16. If this product is to be mounted in an equipment rack, rear support should be provided. 17. Control panel devices, including the xControl range, D series and nTouch 60, are designed for mounting in NEMA metal enclosures. Grounding to the front plate is required.
  • Page 7 D Series Hardware Manual d) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red. 19. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.

  • Page 9: Chapter 2 Before You Start

    C h a p t e r 2 Before you start In This Chapter Warranty Registration ..................6 Important network considerations ..............6 What you will need ................... 6 What's in the box? ..................... 6 Thank You! ....................... 6 July 7, 2017 Version 2.0.0.0...

  • Page 10: Warranty Registration

    RJ-45, loop through connectors, to facilitate proper network configuration. Each D series device draws approximately 16mA. If you are using a NION, the RS-485 network will support a maximum of 32 devices. However, if you are using a Digitool MX16, MX32 or LIVE, a maximum of 15 devices may be used.
  • Page 11 C h a p t e r 3 Introduction to the D series In This Chapter Description ......................8 Features ......................8 Applications ...................... 9 D1V front and rear panel .................. 9 D4S front and rear panel ................... 10 July 7, 2017...

  • Page 12: Chapter 3 Introduction To The D Series

    Chapter 3 - Introduction to the D series Description The D series comprises two individual control units. This is a one-gang unit with four This is a one-gang unit with four programmable buttons and status LEDs. programmable virtual rotary controls and status LEDs.

  • Page 13: Applications

    D Series Hardware Manual Applications  Conference Rooms  Meeting Rooms  Combinable Ballrooms  Paging Systems  Entertainment Systems  Theater BOH (Back of House)  Bars & Restaurants  Schools  Medical Facilities  Institutional Facilities  Municipal Facilities ...

  • Page 14: D4S Front And Rear Panel

    The level is indicated by lit LEDs around the knob. Pushing the knob selects a device wired to the NWare D series device. Note: If the LEDs start flashing, this means no NWare D series device in the NWare project has been assigned the device ID set on the physical device.
  • Page 15 (source select) control, in some products. Refer to the product manuals for more information. Note: If the LEDs start flashing, this means no NWare D series device in the NWare project has been assigned the device ID set on the physical device.

  • Page 17: Chapter 4 Installing And Configuring The D Series

    In This Chapter Introduction ....................... 14 Connecting up a D series panel ................. 15 Setting the device ID for a panel ............... 17 Setting end of line (EOL) terminations ............. 24 Specifying switch or trigger mode for buttons (D4S only) ....... 25 July 7, 2017 Version 2.0.0.0...

  • Page 18: Introduction

    Note: NEMA encloses are not shipped with D series panels. They must be bought separately. For a proper finish, use only decorator wall plates to match the box gang size.

  • Page 19: Connecting Up A D Series Panel

    End of line (EOL) terminations (on page 24)). The diagram below shows a typical set up using a NION and two D series panels. Power is supplied via the NION RS-485/422 port. A maximum of 31 D series units can be daisy chained to the NION in this type of configuration.
  • Page 20 Chapter 4 - Installing and configuring the D series The diagram below shows a typical set up using a Digitool MX32 and two D series panels. Power is supplied via the Digitool RS-485 serial port. Without an external power source, a maximum of 15 D series units can be daisy chained to the Digitool in this type of configuration.

  • Page 21: Setting The Device Id For A Panel

    Setting the device ID for a panel In a D series control system, each panel must be assigned a device ID. This allows NWare to identify each physical control on the device when the user interacts with it. For the D4S, the physical controls are buttons.
  • Page 22 Chapter 4 - Installing and configuring the D series  The buttons on several D4S panels running in trigger mode form a larger single group, like a radio button group in software. When one button from a panel is on, all the others on the same panel and on the other panels will be in the off state.
  • Page 23 When using a Digitool, each DIP switch configuration sets up the D series device with a range of four ID numbers (see Digitool Device ID range column). For the D1V, the selected ID number is indicated by the four device selection LEDs.
  • Page 24 Chapter 4 - Installing and configuring the D series DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 17-20 exclusive trigger group. Creates mutually 21-24 exclusive router. DIP Switches Alias NION D4S Control Digitool Device Group...
  • Page 25 D Series Hardware Manual DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 41-44 exclusive trigger group. Creates mutually 45-48 exclusive router. DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 49-52 exclusive trigger group.
  • Page 26 Chapter 4 - Installing and configuring the D series DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 65-68 exclusive trigger group. Creates mutually 69-72 exclusive router. DIP Switches Alias NION D4S Control Digitool Device Group...
  • Page 27 D Series Hardware Manual DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 89-92 exclusive trigger group. Creates mutually 93-96 exclusive router. DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 97-100 exclusive trigger group.

  • Page 28: Setting End Of Line (Eol) Terminations

    Chapter 4 - Installing and configuring the D series DIP Switches Alias NION D4S Control Digitool Device Group Device ID range Mutually 113-116 exclusive trigger group. Creates 117-120 mutually exclusive router. DIP Switches Alias NION D4S Control Digitool Device Group...

  • Page 29: Specifying Switch Or Trigger Mode For Buttons (D4S Only)

    Before configuring the D4S, make sure that your system is completely wired and terminated correctly to the NION or Digitool.  The power to the NION or Digitool (and D series network) should be on.  To specify switch or trigger mode for buttons ...

  • Page 31: Warranty Statement

    PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO authorized by Peavey; (4) products on which the serial number has THE LENGTH OF THIS WARRANTY. been altered, defaced or removed; (5) products not purchased from Some states do not allow limitations on how long an implied an Authorized Peavey Commercial Audio Integrator.
  • Page 32 A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://www.peaveycommercialaudio.com/products.cfm/mm/ Features & Specifications subject to change without notice Copyright © 2016, All Rights Reserved 80305828...
