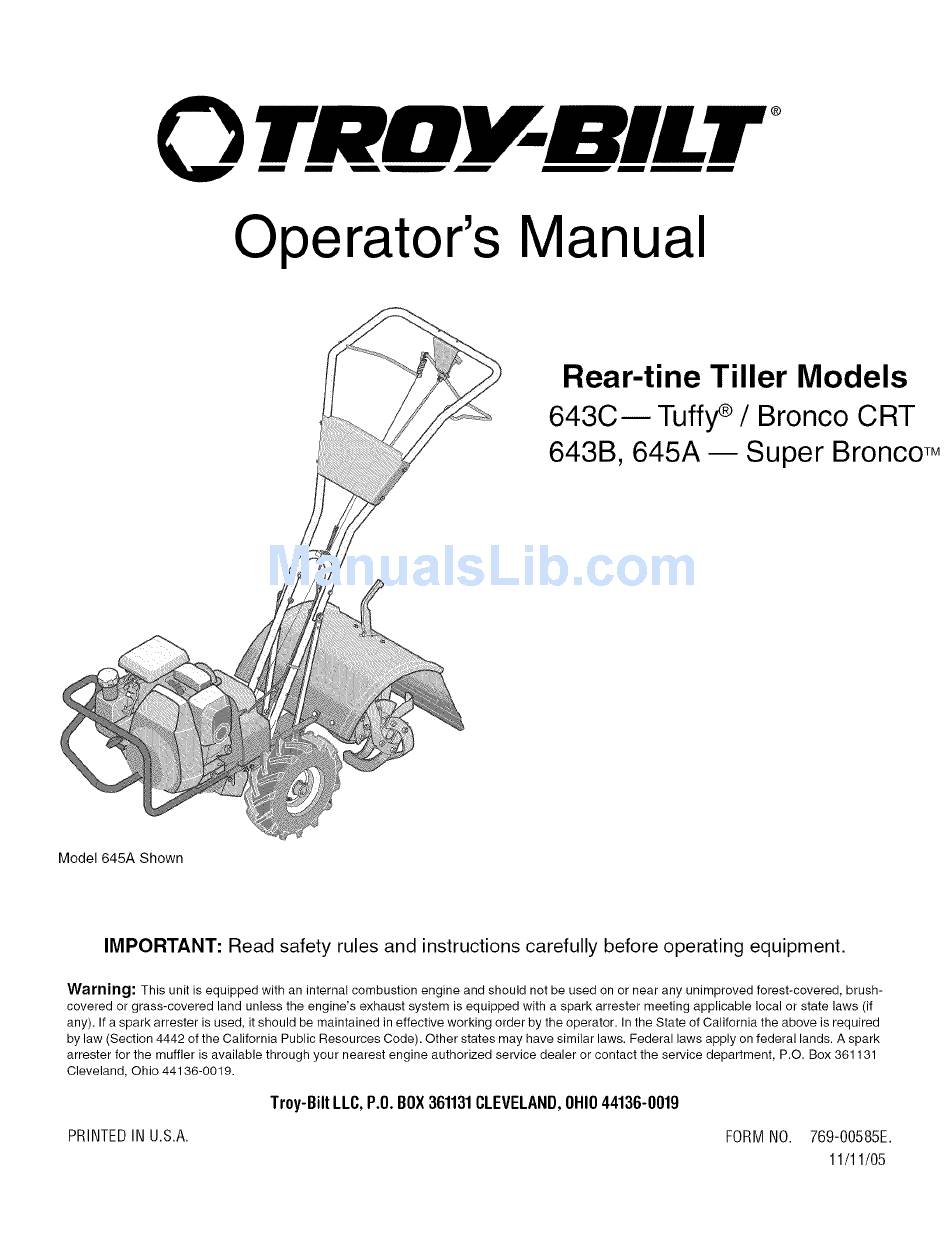

Operator's Manual
®
Rear-tine
Tiller
Models
643C m Tuffy¢ / Bronco CRT
643B, 645A -- Super BroncoTM
Mode1645A Shown
IMPORTANT:
Read safety rules and instructions
carefully
before operating
equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered,
brush-
covered or grass-covered
land unless the engine's exhaust system is equipped with a spark attester meeting applicable local or state laws (if
any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required
by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark
arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department,
P.O. Box 361131
Cleveland, Ohio 44136-0019.
Troy-Bilt LLC, P.O. BOX361131CLEVELAND, O HIO44136-0019
PRINTEDIN U.S.A.
FORMNO. 769-00585E.
11/11/05
