Troy-Bilt Tuffy 630B Operator's Manual
  1. Manuals
  2. Brands
  3. Troy-Bilt Manuals
  4. Tiller
  5. Tuffy 630B
  6. Operator's manual
Troy-Bilt Tuffy 630B Operator's Manual

Troy-Bilt Tuffy 630B Operator's Manual

Rear-tine tiller
Hide thumbs Also See for Tuffy 630B:
Table of Contents

Advertisement

Quick Links

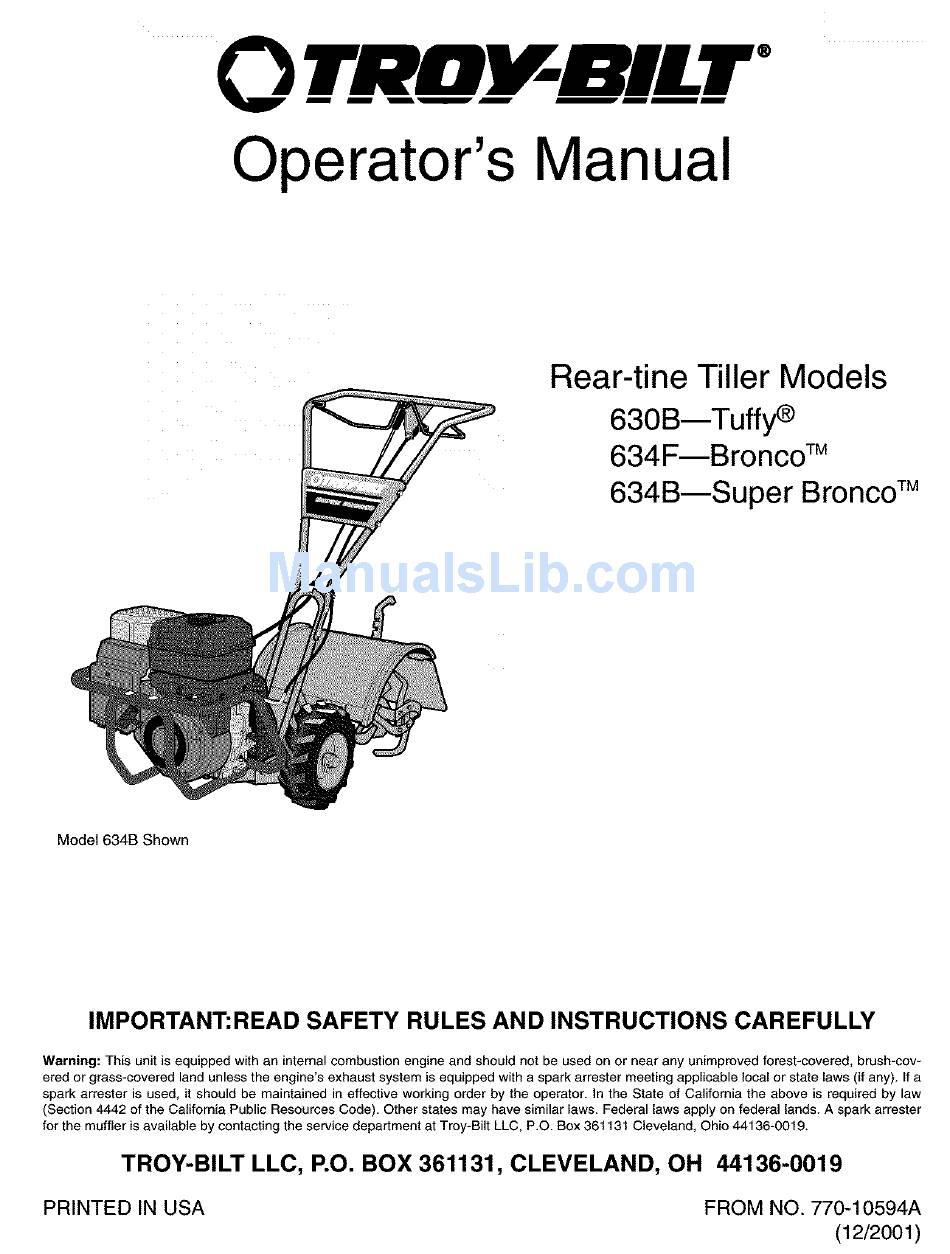

0 TRnV BILT'"
Operator's Manual
Rear-tine Tiller Models
630B--Tufty _
634F--Bronco
TM
634B--Super Bronco
TM
Mode1634B Shown
IMPORTANT:READ
SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning: This unit is equipped with an internal combustion
engine and should not be used on or near any unimproved
forest-covered,
brush-cov-
ered or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable
local or state laws (if any). If a
spark arrester is used, it should be maintained
in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available by contacting the service department
at Troy-Bilt LLC, P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT
LLC, P.O. BOX 361131, CLEVELAND,
OH 44136-0019
PRINTED
IN USA
FROM NO. 770-10594A
(12/2001 )
