Summary of Contents for progeo TEKNA TILT

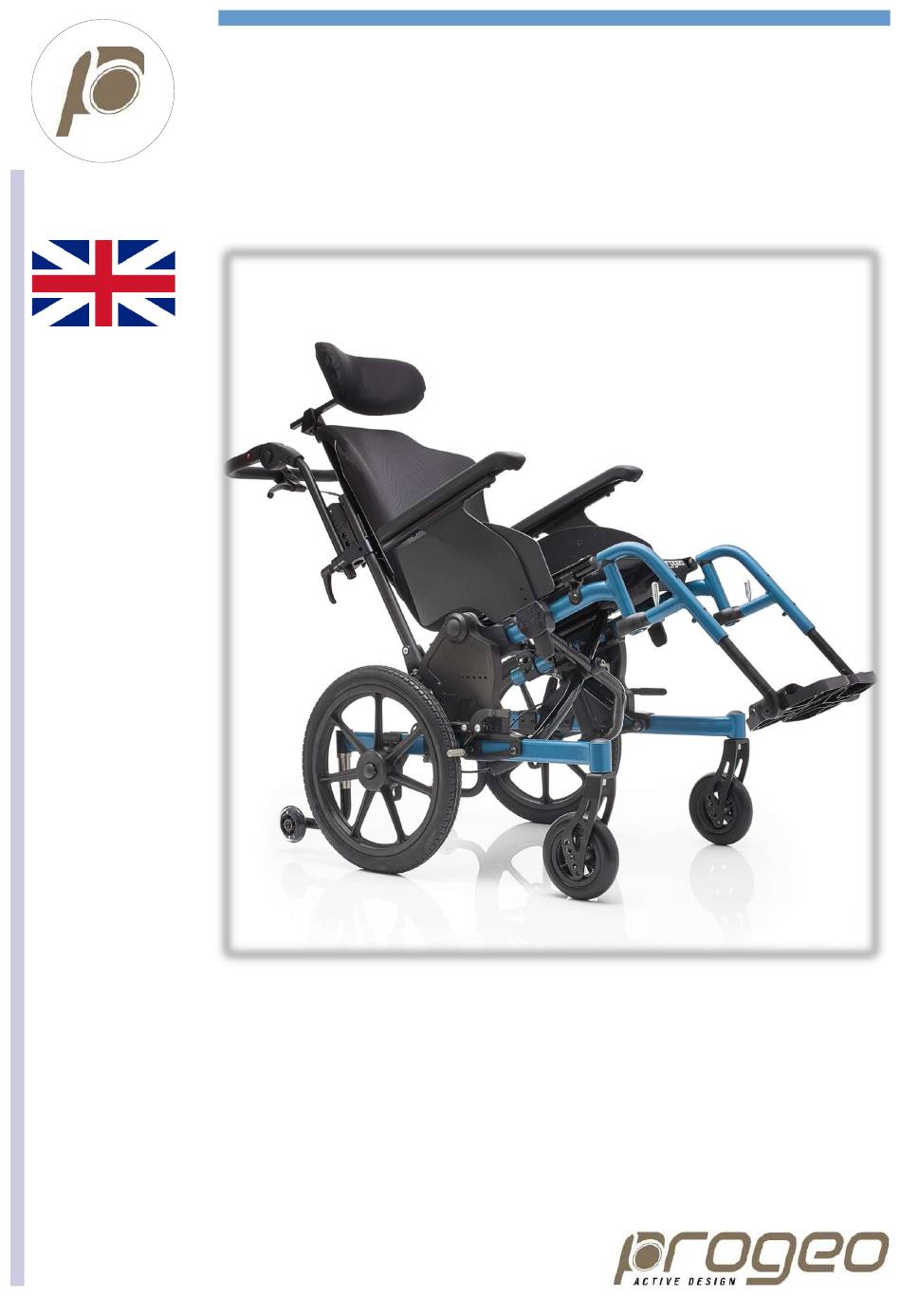

- Page 1 S E R V I C E M A N U A L TEKNA TILT Adult and Junior SERVICE MANUAL ENGLISH Rev. 0 - 06/05/2020 Service Manual TEKNA TILT 2.0 1 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 2 RehaTEAM® disclaims any responsibility for damage to the product or the peo- ple due to any modification that is not properly performed or that, in any case, does not guarantee safety to the user. Service Manual TEKNA TILT 2.0 2 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 3 BACKREST HEIGHT AND ANGLE BACKREST ANGLE SEAT DEPTH STANDARD REMOVABLE ARMREST SEAT WIDTH ENLARGEMENT QUICK RELEASE AXLE (rear wheel) FOOTPLATE FRAME LOCKING POSITION (only for Exelle Vario) Service Manual TEKNA TILT 2.0 3 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 4: Seat Height
Rear wheel plate orientation For 12” and 16” wheels, the plate is facing downward. For 22” and 24” wheels, the plate is facing upward. Service Manual TEKNA TILT 2.0 4 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 5 To raise the anti-tipper, screw off the bolt/washer/nut A and remove the tube. Cut off 15 mm per position . Insert the tube into the steel support and fix it with the bolt/washer/nut A Cutting lines Service Manual TEKNA TILT 2.0 5 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 6 Note: with 12” wheels, the brake is assembled reversed, with its tube facing frontward. The adjustment is the same. close to eachother Brake assembly with 12” wheels Service Manual TEKNA TILT 2.0 6 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 7 In these pictures, the brake is left. For the right side, the procedure is the same, just mind the symmetry. To reverse the assembly starting form the reversed assem- bly, proceed likewise. Service Manual TEKNA TILT 2.0 7 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 8 Finally, tighten the receiver B. If the nut is not a lock nut, spread 12” wheel 16” wheel some mild lock thread glue. Mind the seat height, see also adjustment sheet “seat height”. Service Manual TEKNA TILT 2.0 8 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 9 If you change from 22” to 24” wheel, you need to remove the brake first. Note: between the head of the receiver and the plate there is no spacers. 22” 24” Service Manual TEKNA TILT 2.0 9 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 10 In the pictures aside, with small rear wheels, the wheel plate is facing downward and the ring upward, whereas, with bis rear wheels, the as- sembly is opposite. Service Manual TEKNA TILT 2.0 10 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 11: Rear Wheels With Drum Brake
Between the drum brake unit and the wheel plate there should always be two 6 mm spacers A. Wheel plate facing down Wheel plate facing up For 12” e 16” For 22” e 24” wheels wheels Follows next page Service Manual TEKNA TILT 2.0 11 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 12 22” and 24” wheel: assembly for each position on the wheel plate Follow the instruction above. Here after, the combinations. Foro 5 Follows next page Service Manual TEKNA TILT 2.0 12 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 13 Note: in these pictures, the assembly refers to 22” or 24” wheels, the wheel plate is facing up. For 12” and 16” wheels, follow the same instructions. Service Manual TEKNA TILT 2.0 13 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 14 The tie-down ring has always to be mounted opposite to the part of the wheel plate with the height adjustment holes and with its bending facing externally. 12” and 16” wheels 22” and 24” wheels Service Manual TEKNA TILT 2.0 14 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 15 The caster does not turn smoothly Clean the bearings. FOOTPLATE The footplate tubes are adjusted at different height. Adjust the tubes at the same height Service Manual TEKNA TILT 2.0 15 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 16 That is to compensate the angle of the front frame adbuction. 76° 76° The tube is only short and it allows for two positions for the adjustment suport. Service Manual TEKNA TILT 2.0 16 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 17 LH supports two RH supports Service Manual TEKNA TILT 2.0 17 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 18 The plate is always orientated wit hits curves side facing front (however, you can reverse it, too.). Footplate tubular internal Footplate tubular external Follows next page Service Manual TEKNA TILT 2.0 18 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 19 Usually, when the footplate is lifted up the adjustment holds it in place. Service Manual TEKNA TILT 2.0 19 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 20: Elevating Leg Rest
Insert the footplate and, if footplate tube is to long, cut it off accordingly. ANGLE ADJUSTMENT Loosen the bolt F, tilt the plate and tighten the bolt. Follows next page Service Manual TEKNA TILT 2.0 20 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 21: Backrest Height
Should you irredeemably damage the thread of such hole, you can repass it with a 5 mm drill pin and fix the support with a longer bolt, washer and nut. 8 cm 5.5 cm FIX OR RECLINING ALUMINIUM TUBE FOLDING TITANIUM TUBE Threaded hole Service Manual TEKNA TILT 2.0 21 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 22: Backrest Angle
The adjustment of the two backrest tubes has to be the same otherwise, the push handlebar and/or the possible backrest postural system may not engage and lock correctly. Service Manual TEKNA TILT 2.0 22 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 23: Seat Depth
C, tighten the bolt A and the bolts/washers/nuts E and F. Advise To make operations easier, it is advisable to detach one side the push handlebar. Service Manual TEKNA TILT 2.0 23 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 24 Assemble the side guard. The holes for the bolts F remain the same. WARNING: do not tighten the bolt C and F excessively: it may damage the threaded hole until making it unusable. Possiible cutting line Service Manual TEKNA TILT 2.0 24 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 25 F is that which is used to enlarge the seat. The seat width enlargement is 10 mm for each support (total 20 mm). Service Manual TEKNA TILT 2.0 25 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 26: Quick Release Axle
Do not unscrew the button too much: the pin will come off and, consequently, the balls will fall to the ground. Service Manual TEKNA TILT 2.0 26 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 27 You can, however, carry out the same operation, It is advisable to spread a drop of mild lock thread glue on the headless bolts B. Service Manual TEKNA TILT 2.0 27 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
