Summary of Contents for Home HME030341N

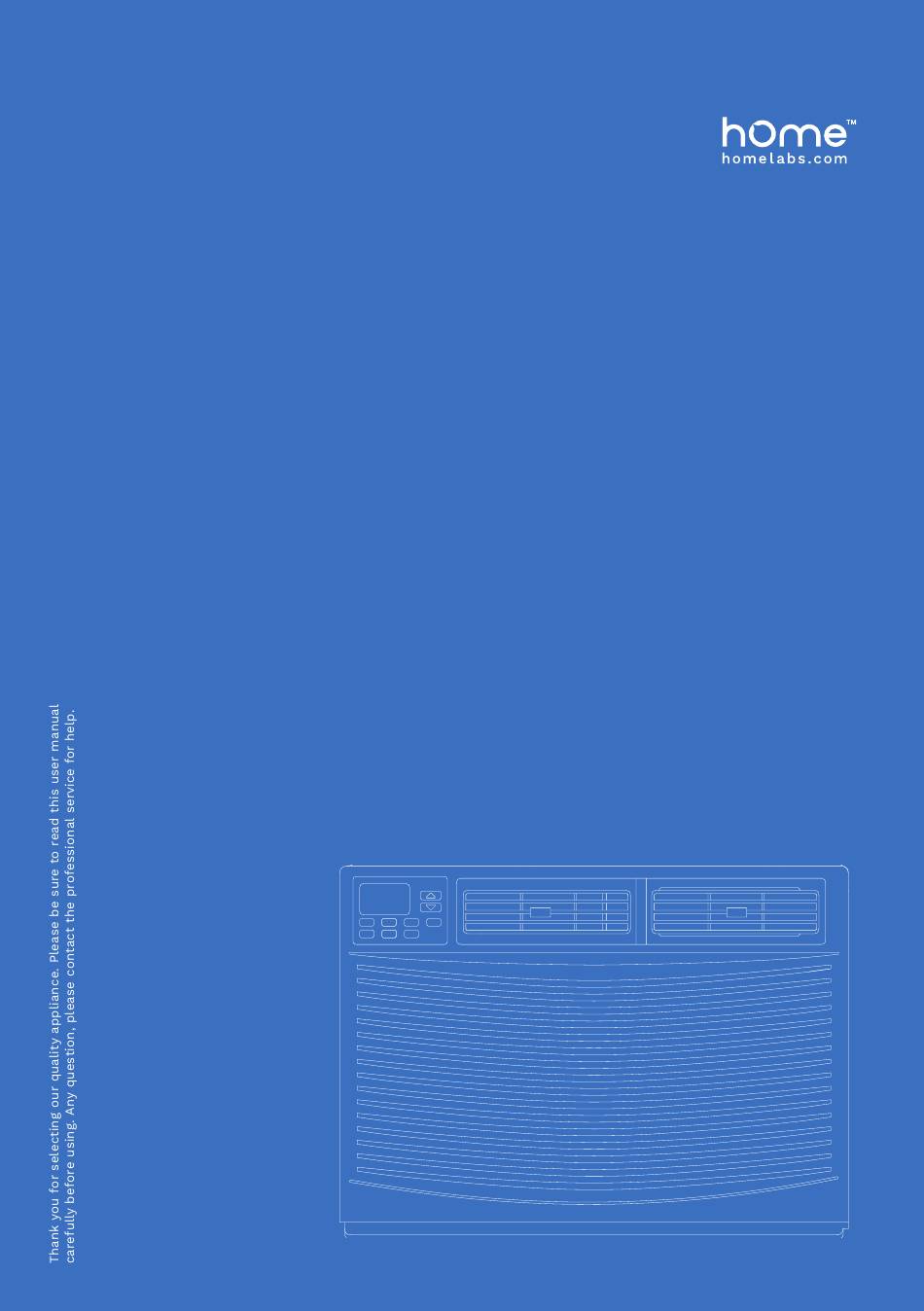

  • Page 1 Window AC HME030341N HME030342N...
  • Page 2 Defective product should be clearly marked or stored where it cannot be used again by mistake. Failure to retain the product may impede hOme ™ ’s ability to correct any legitimate problem ™ and may limit the extent to which hOme may provide recourse.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Satety Instructions Electrical Requirements Operating Instructions 9-19 Cleaning and Maintenance Troubleshooting Warranty Manufacturing Info Warning Contact Us...
  • Page 5 Congratulations on bringing home your new appliance! Don’t forget to register your product at homelabs.com/reg for updates, coupons, and other relevant information. Although greatly appreciated, product registration is not required to activate any warranty.

  • Page 6: Important Satety Instructions

    Important Safety Instructions SAVE THESE INSTRUCTIONS For Household Use Only Before installing and using your air conditioner, please read this owners manual carefully. Store this manual in a safe place for future reference. Your safety and the safety of others is very important to us.

  • Page 7: Electrical Requirements

    Electrical Requirements The electrical ratings for your air conditioner are listed on the model and serial number label located on the front left side of the unit (when facing the front). Specific electrical requirements are listed in the chart below. Follow the requirements below for the type of plug on the power supply cord.
  • Page 8 Electrical Requirements LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit. The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly.

  • Page 9: Operating Instructions

    Operating Instructions PACKING LIST IMAGE PART QUANTITY Window Air Conditioner Remote Control Top Mounting Rail (With sponge) Lock Frame Filler Panels (With “Left” & “Right” remark on the front face) Sash Lock(Two holes) Window Sash Seal (Sponge) 3/8” Screws 1/2” Screws 3/4”...
  • Page 10 Operating Instructions INSTALLATION & ASSEMBLY INSTRUCTIONS (USED FOR 8K) Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. 1. This air conditioner is designed to be installed in a standard double-hung window with a window width between 23”...
  • Page 11 Operating Instructions INSTALLATION & ASSEMBLY INSTRUCTIONS (USED FOR 10K/12K) Some assembly is required for your new air conditioner. Please read and follow these instructions carefully 1. This air conditioner is designed to be installed in a standard double-hung window with a window width between 26”...
  • Page 12 Operating Instructions TOP RAIL ASSEMBLY (ONLY USED FOR 8K) The top rail must be assembled prior to installing the air conditioner in the window. Tools Needed: Phillips Screw Driver Top Rail Hardware 3/8” Screw Rail Attaching the Top Rail to the Air Conditioner 1.
  • Page 13 Operating Instructions HOW TO INSTALL 2. Fasten the accordion styled window panel NOTE: expander pieces to the unit. They are marked Top Rail and Sliding Panels at each side are offset “Right” and “Left”. to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensed water Pull the leading edge to its maximum width.
  • Page 14 Operating Instructions HOW TO INSTALL 3. Carefully place the window air conditioner 5. Attach the sash lock between the top of the into the window where it is to be installed sliding window and window frame, using 1 of (it is recommended to handle by 2 people). the included ¾”...
  • Page 15 Operating Instructions IF AC IS BLOCKED BY STORM WINDOW Add wood as shown in figure below, or remove storm window before air conditioner is installed. FIG. 14 If storm window frame must remain, make sure the drain holes or slots are not caulked or painted shut. Accumulated rain water or condensation must be drained out.
  • Page 16 Operating Instructions USING YOUR AIR CONDITIONER Electronic Control Panel & Remote Control NOTE: This display always shows the room temperature in Fan Mode except when setting the Timer. HIGH COOL AUTO AUTO SPEED MODE SPEED MODE POWER POWER FILTER SLEEP TIMER Normal Operating Sounds •...
  • Page 17 Operating Instructions 4. Mode Button: Press the mode button to cycle through the various modes: Cool, Dry, Fan and Auto. Cool Mode: The cooling function allows the air conditioner to cool the room and at the same time reduces air humidity. Press the MODE button to activate the cooling function. To optimize the function of the air conditioner, adjust the temperature and the speed by pressing the button indicated.
  • Page 18 Operating Instructions REMOTE CONTROL Battery Size: AAA NOTE: Do not mix old and new batteries or different types of AAA batteries.
  • Page 19 Operating Instructions 1. POWER: Turn the air conditioner on or off. 2. Cool: Press the COOL button to enter COOL mode. : Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer. Temperature range: 61°F-88°F or 16°C-31°C. 4.

  • Page 20: Cleaning And Maintenance

    Cleaning and Maintenance Clean your air conditioner to keep it looking new and to minimize dust build-up. AIR FILTER CLEANING The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost.

  • Page 21: Troubleshooting

    Troubleshooting PROBLEMS POSSIBLE CAUSES SOLUTIONS The Air Conditioner The air conditioner is • Make sure the air conditioner plug is pushed will not start unplugged completely into the outlet The fuse is blown/circuit • Check the house fuse/circuit breaker box and breaker is tripped replace the fuse or reset the breaker Power failure...

  • Page 22: Warranty

    (“warranty period”) on all of our products purchased new and unused from hOme Technologies, LLC or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period.
  • Page 24 For household 1-800-898-3002 © 2016 hOme Technologies, LLC help@homelabs.com 37 East 18 Street, 7th Floor Use Only homelabs.com/help New York, NY 10003...
