Summary of Contents for Home HME020235N

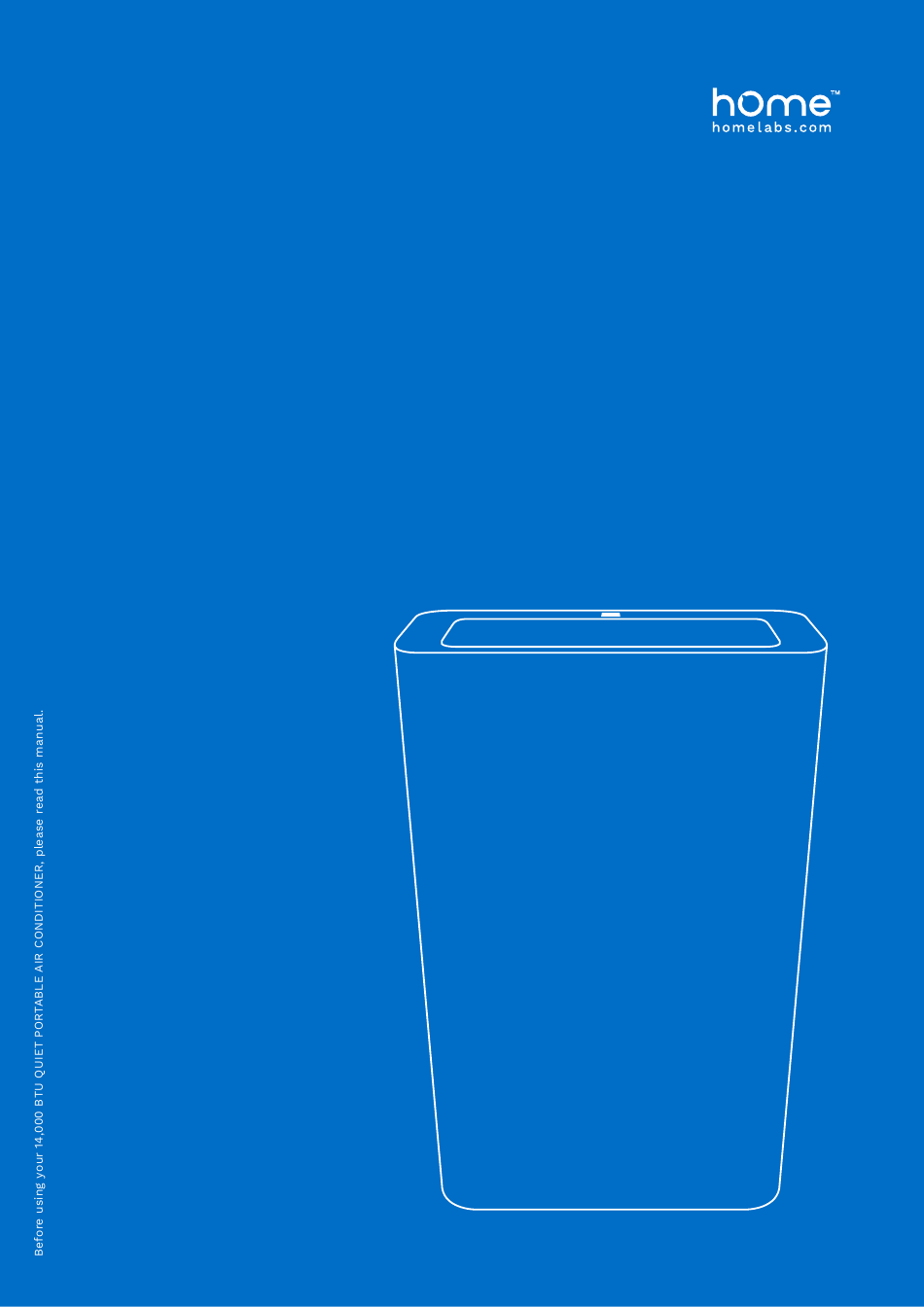

- Page 1 14,000 BTU QUIET PORTABLE AIR CONDITIONER HME020235N...
- Page 2 BEFORE FIRST USE: To prevent any internal damage, it is very important to keep refrigeration units (like this one) upright throughout their journey. Please leave it standing upright and outside the box for 24 HOURS before plugging it in.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Parts Description Operation 9-14 Maintenance Troubleshooting Warranty Manufacturing Info Warning Contact Us Additional Info... - Page 5 Congratulations on bringing home your new appliance! Don’t forget to register your product at homelabs.com/reg for updates, coupons, and other relevant information. Although greatly appreciated, product registration is not required to activate any warranty.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your hOme ™ 14,000 BTU Portable Air Conditioner, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury to persons. Incorrect operation due to ignoring instructions may cause harm or damage. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Do not remove any fastened covers. • Never use this appliance if it is not working properly, or if it has been dropped or damaged. • Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. -
Page 8: Parts Description
PARTS DESCRIPTION Control Panel Air Outlet Door Upper Air Filter Handle (Both Sides) Upper Air Intake Panel Drain Outlet Air Outlet Lower Air Filter Lower Air Intake Power Plug Socket Power Plug Socket Power Cord Wrap Power Cord Outlet Wheels Bottom Tray Drain Outlet FRONT BACK... -
Page 9: Operation
OPERATION INSTALLATION Your installation location should meet the following requirements: • Make sure that you install your unit on an even surface for minimal noise and vibration. • The unit must be installed near a grounded plug and the Bottom Tray Drain Outlet (on the back of the unit) must be accessible. •... - Page 10 OPERATION INSTALLATION Step Three: Preparing the Adjustable Window Slider 1. Based on the size of your window, adjust the size of the Window Slider. 2. If the length of the window requires two window sliders, use the bolt to fasten the window sliders once they are adjusted to the proper length.
- Page 11 OPERATION INSTALLATION Type 2: Sliding Window Installation 1. Cut Foam Seal A and B strips to the proper lengths and remove the adhesive backing. Attach them to the window sash and frame as shown. 2. Insert the Window Slider assembly into the window opening. 3.
- Page 12 OPERATION CONTROL PANEL SWING BUTTON: Press to initiate the Auto swing UP (+) AND DOWN (-) BUTTONS: This button allows feature. When the operation is ON, you can choose to you to adjust (increasing/decreasing) temperature press it to stop the Air Outlet Door at the desired angle. settings in 1°C/1°F increments in a range of 17°C/62°F SWING A complete swing takes about 30 seconds for the Air...
- Page 13 OPERATION OPERATION INSTRUCTIONS NOTE: The unit can be operated by use of the control panel or the Remote Control. Expect a 1-second delay when using the Remote Control to operate. COOL OPERATION -Press the MODE button until the "COOL" indicator light illuminates. - Press the ADJUST button "+"...
- Page 14 OPERATION WATER DRAINAGE During the dehumidifying process, remove the upper drain plug from the back of the unit, install the Drain Hose (5/8" universal female mender) with ¾" hose (locally purchased). For the models without the drain connector, just attach the Drain Hose to the hole. Place the open end of the hose directly over the drain area in your basement floor or a water reservoir.
-
Page 15: Maintenance
MAINTENANCE WARNING: -Always unplug the unit before cleaning or any repairs. -DO NOT use flammable liquids or chemicals to clean the unit. -DO NOT wash the unit under running water. -DO NOT operate the unit if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION The unit does not turn on when P1 Error Code The Water Collection Tray is full. pressing the ON/OFF button. Turn off the unit, drain the water from the Water Collection Tray and restart the unit. In COOL mode: the room temperature is lower Reset the temperature to a lower degree. -
Page 17: Warranty
(“warranty period”) on all of our products purchased new and unused from ™ hOme Technologies, LLC or an authorized reseller, with original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacturing, parts, or workmanship during the warranty period. The warranty does not apply where damage is caused by other factors, including but without limitation: (a) normal wear and tear;... -
Page 18: Manufacturing Info
MANUFACTURING INFO This manual is to be used with all items with the model number HME020235N SKU# : HME020235N PART#: HME020235MNL Rating: 115V, 1Ph, 60Hz, 1370W WARNING Keep all plastic bags away from children. CONTACT US CALL U S CHAT W ITH U S EMAIL US homelabs.com/chat... - Page 20 For Indoor 1-800-898-3002 © 2018 hOme Technologies, LLC help@homelabs.com 37 East 18 Street, 7th Floor Use Only homelabs.com/help New York, NY 10003...
Need help?
Do you have a question about the HME020235N and is the answer not in the manual?
Questions and answers
I can't find the remote for my home portable air conditioner and I cant it to turn on w out it
You can turn on the hOmeLabs portable air conditioner model HME020235N without the remote by using the direct buttons on the digital control panel located on the unit itself.
This answer is automatically generated
I can't find remember Mo how can I use it without the remote I can't get it to turn on it lights up for a second when I press timer and the temperature but it doesn't turn on and
To use the Home HME020235N without the remote, use the direct buttons on the unit. If the unit only lights up for a second when pressing the timer and temperature buttons, reset the device by unplugging it and then plugging it back in while holding the ON button down for about 3 seconds. After resetting, use only the direct buttons, as using both remote and direct buttons together can cause the unit to become unresponsive.
This answer is automatically generated
The unit turns on for just a second then turns off
I have a HomeLabs portable air conditioner model #HME020235N and the window slider adapter cracked, where can I order a replacement part?
