Home HME020003N User Manual

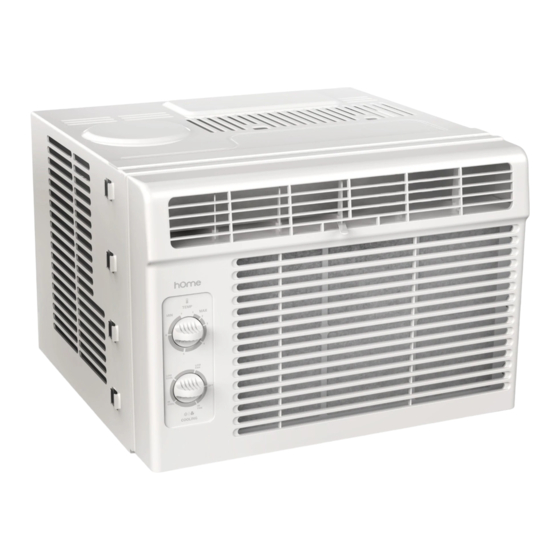

Window air conditioner
Hide thumbs Also See for HME020003N:

Advertisement

Table of Contents

See also: Manual
Window Air Conditioner
5000 BTU Unit
Before using your Air Conditioner, please read this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HME020003N and is the answer not in the manual?

Questions and answers

Related Manuals for Home HME020003N

Summary of Contents for Home HME020003N

  • Page 1 Window Air Conditioner 5000 BTU Unit Before using your Air Conditioner, please read this manual.

  • Page 2: Table Of Contents

    USER MANUAL TABLE OF CONTENTS Registration Reminder Important Safety Instructions Installation Instructions 7-10 Normal Sounds Air Directional Louvers Air Conditioner Features 11-12 Care and Cleaning Troubleshooting Tips 13-14 Warranty...

  • Page 3: Registration Reminder

    CONGRATULATIONS ...on purchasing your new hOme appliance! ® Don’t forget to register your product at www.home.family/reg for updates, coupons, and other relevant information. Although greatly appreciated, product registration is not required to activate any warranty.

  • Page 4: Important Safety Instructions

    If you review our chart of Troubleshooting Tips first, you may not need to call for service at all. If you encounter any issues, please feel free to contact hOme Customer ®...
  • Page 5 • Children should be supervised to ensure that they do 2 feet space to the combustible materials. not play with the appliance. • If the supply cord is damaged, please contact hOme ® customer service at 1-800-898-3002 in order to...
  • Page 6 TWO buttons on the plug head. • If power supply cord is damaged, it cannot be repaired. It MUST be Press the TEST button, you will replaced by one obtained from hOme . Please contact customer service ® notice a click as the RESET at 1-800-898-3002.

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Read these instructions completely and carefully. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. IMPORTANT - Save these instructions for local inspector’s use. Do not change the plug on the power cord of the air conditioner.
  • Page 8 INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Lower sash must open sufficiently to allow a clear C: Align the hole in the top rail with those in the top of vertical opening of 13 inches. Side louvers and the rear the unit as shown in Fig. B. of the AC must have clear air space to allow enough airflow through the condenser, for heat removal.
  • Page 9 INSTALLATION INSTRUCTIONS B. Slide the free end “ ” section of the panel directly SECURE THE ACCORDION PANELS into the cabinet as shown in Fig. 2. Slide the panel down. Be sure to leave enough space to slip the top A.
  • Page 10 INSTALLATION INSTRUCTIONS B. Drive 3/4” or 1/2” locking screws through frame IF A/C IS BLOCKED BY STORM WINDOW holes into window sash (Fig.8). Add wood as shown in Fig. 11, or remove storm window before air conditioner is installed. If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut.

  • Page 11: Normal Sounds

    NORMAL SOUNDS HIGH PITCHED CHATTER High efficiency compressors may have a high pitched chatter during the cooling cycle. FOAM SEAL Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. SOUND OF RUSHING AIR At the front of the unit, you may hear the sound of rushing air being moved by the fan...

  • Page 12: Care And Cleaning

    AIR CONDITIONER FEATURES COOL MODE The desired cool setting is selected by rotating the knob to the right to the appropriate location. HI COOL has maximum cooling effect and airflow. LO COOL has minimum cooling effect and airflow. FAN MODE Rotate the knob to the left to select your choice of fan speeds for air circulation.

  • Page 13: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before calling for hOme customer service, review this list. It may save your time and expense. This list includes common ® occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Air conditioner does not start Wall plug disconnected.
  • Page 14 TROUBLESHOOTING TIPS Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Water dripping INSIDE Improper installation. Tilt air conditioner slightly to the outside to allow water when unit is cooling.

  • Page 15: Warranty

    (“warranty period”) on all of our products purchased new and unused from ® hOme Technologies, LLC or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period. The warranty does not apply where damage is caused by other factors, including without limitation: (a) normal wear and tear;...
  • Page 16 HOUSEHOLD USE ONLY SKU#: HME020003N PART#: HME020003MNL © 2016 hOme Technologies, LLC 37 East 18 Street, 7th Floor. | New York, NY 10003 All rights reserved, hOme ® Printed in China.
