SonicWALL NSsp 12000 Installation Manual

®

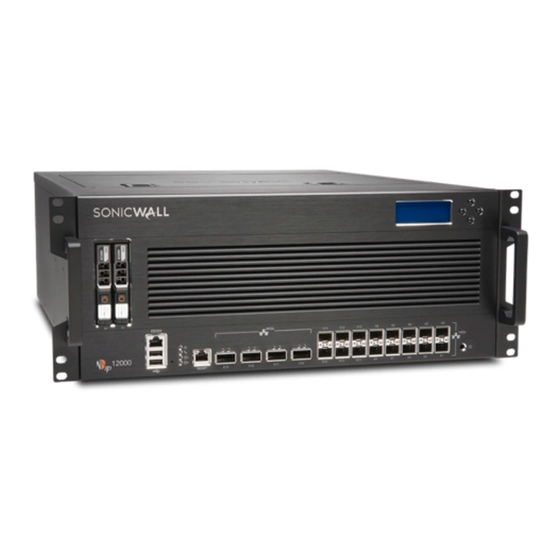

SonicWall NS 12000 Rail Kit
sp

Installation for Rack Mounting

This document provides illustrated rack mounting instructions for your
SonicWall NSsp 12000 network security appliance.
To install the rack mounting kit for the SonicWall NSsp 12000,
complete the following steps:

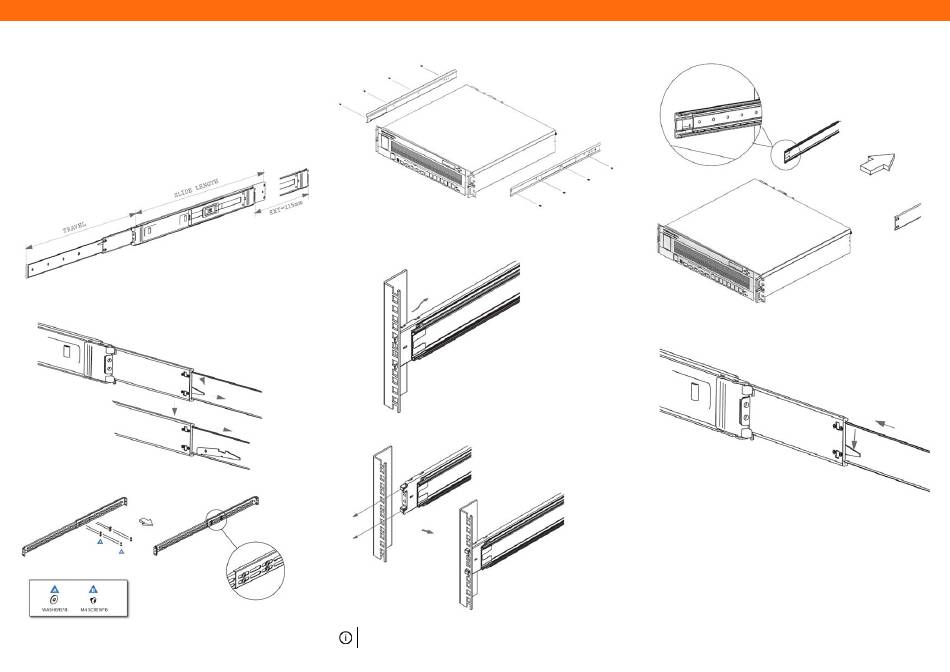

1 Assemble the slide rail.
2 Extend the slide rails.
3 Remove the chassis member from the slide rails.
4 Assemble the chassis rails using four (4) M4 screws and washers.
5 Mount the chassis rails to the chassis with eight (8) M4 screws.
6 Attach the bracket to the rails by inserting the barb into the square
hole.
7 Put the plastic inserts into the square holes to secure the rails.
NOTE: The brackets should be centered within the 4U rack space.
8 Install the chassis by sliding it into the frame.
9 Press the lever down to release the slide.
Installation du kit de rails pour montage sur
®
bâti de l'appareil SonicWall
Ce document fournit des instructions illustrées pour le montage sur
bâti de votre appareil de sécurité réseau SonicWall NSsp 12000.
Pour installer le kit de montage sur bâti de l'appareil SonicWall NSsp
12000, suivez les étapes suivantes :
1 Assemblez les glissières.
2 Déployez les glissières.
3 Retirez la partie châssis des glissières.
NS 12000
sp
