Airbrush Operation:
1. Press down on Trigger to release air and pull back on Trigger to control quantity of color.
2. To spray a fine line without heavy ends, start moving the airbrush without release of color. Then start
the color at the beginning of line and stop the color at the end, but continue the motion of the airbrush
after the color has stopped.
3. Practice until you can spray a fine line or a broad pattern without heavy build up at the beginning or
end of your strokes.
4. Speed of movement controls density of color and fading effects at beginning and end of strokes.
5. For detail, hold the airbrush very close to the surface and then push down for air and pull back very
slowly on the Trigger to release a small amount of paint.
6. For background work and broad effects, hold the airbrush away from the work surface and pull back
on Trigger to release required amount of color.
Head Sizes - Patterns - Fluid Thickness
Size 1 - Tip size .55mm
- Pencil Line to 1'' patterns
-thinner Paint than 3 & 5
Working Pressures:
• Operating pressures 20-55 PSI; Maximum pressure 75 PSI
• 20-30 PSI is best for detail spraying w/ properly thinned paint
• Use higher pressures for thicker material where fine detail is not critical
Equipment Set-up:
The Airbrush is held in the same manner as a pen, with the index finger comfortably over the Trigger.
1. Attach airhose to air supply and to airbrush. If using a regulator, set pressure between 20 -30 PSI.
2. Attach the color cup or bottle assembly to color socket.
REMOVING/REPLAClNG THE NEEDLE AND HANDLE (Illustration A):
1. Unscrew the handle and loosen the Locknut #12 by turning counterclockwise. Depress the Trigger
#7 and hold in Down position while removing or inserting the needle. This assures the needle moves
freely through the trigger. Gently remove the needle, rotating if necessary, Do NOT force out!
2. Inspect the condition of the needle. If it is bent or misshapen in any way, replace it with a new needle.
A bent needle can damage or split the Tip #4 causing bubbles or a rough spray pattern.
3. Hold trigger in DOWN position, insert the new needle into the Rocker Assembly #9. Gently push
needle through, rotating if necessary. until the needle stops in the front of the tip.
4. Release trigger and tighten locknut by turning clockwise.
REPLACING THE TRIGGER:
( If the Trigger #8 is removed, it must be replaced inside the airbrush shell, before the Rocker Assembly #9
and needle are re-inserted. )
1. Hold the trigger so the opening in the lever is in-line with the opening in the end of the airbrush shell
and the flat side of the trigger stem is to the rear.
2. Insert trigger so the bottom of the stem covers the round top of the valve plunger.
REPLACING THE TIP:
1. Remove handle, loosen Locknut #12 and withdraw needle about one inch (1").
2. Un-screw the Head #3 and remove. The Tip #4 can now be easily removed by hand. If stuck in shell tap
lightly with wrench.
3. Place a new tip into position and tighten head to shell with a wrench. Push needle forward until it
seats fully forward in tip and tighten locknut.
PERSONAL SETTINGS:
1. Needle Adjustment Sleeve - Used to increase or decrease spring tension for the trigger pull back.
Thread into the shell until the trigger stroke feels comfortable. Threading in until it stops can cause
the trigger to jam.
MIL – Airbrush
Double Action - Internal Mix
Siphon Feed
Size 3 -Tip size .73mm
-1/32'' to 1-1/2'' patterns
-Thicker paint than size 1

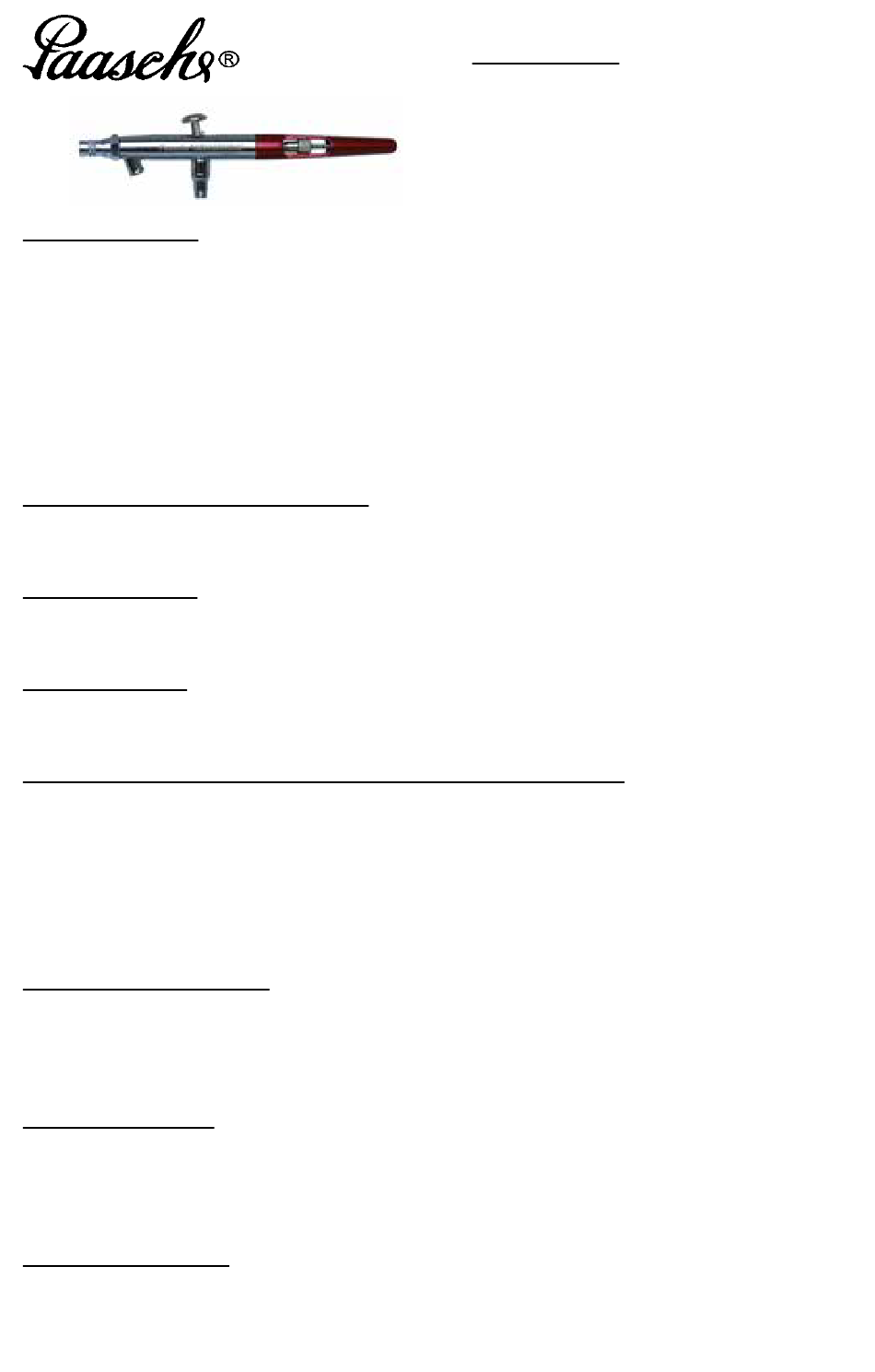

INSTRUCTIONS AND PARTS LIST MIL-8/31/2016
INTRODUCTlON:
Paasche® model MIL features hand crafted
construction using quality materials. The body
is machined brass, polished and chrome plated.
Fluid tips are nickel silver, needles are stainless
steel & the needle packing is PTFE. Preferred
by professional and hobbyist alike.
Size 5 -Tip Size 1.06mm
-1/16'' to 1-1/2'' patterns
-Thicker paint than size 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIL and is the answer not in the manual?

Questions and answers

Summary of Contents for paasche MIL

  • Page 1 INSTRUCTIONS AND PARTS LIST MIL-8/31/2016 Double Action - Internal Mix INTRODUCTlON: Siphon Feed Paasche® model MIL features hand crafted construction using quality materials. The body is machined brass, polished and chrome plated. Fluid tips are nickel silver, needles are stainless steel &...
  • Page 2: Troubleshooting

    ADJUSTING OR REPLACING WORN PACKING WASHER: 1. If PTFE Packing #19 becomes worn or loose it must be tightened or replaced. 2. You will need a small screwdriver to remove or tighten the Packing Nut #19. 3. When replacing your PTFE Packing press packing onto the Packing Nut #19. Use a small screwdriver to tighten packing nut into shell until it is tight then back out one-half turn, may vary.
  • Page 3: Optional Items

    Economical and suitable for all airbrushes spraying properly thinned fluids. Maximum 20 - 35 P.S.I. operating pressure depending on airbrush being used. The Paasche D500SR is an oilless piston unit and comes with the R-75 Regulator/Filter with gauge. It operates on 110-120 Volt, 1 phase, 60Hz, and delivers .4 C.F.M.
  • Page 4 Fütterung - PTFE Dichtung Luftdruckmaximal 75 psi . EINFÜHRUNG: Paasche ® - MILLENNIUM - Modell ist ein handgefertigtes Design mit hochwertigen Materialien. Die Körper sind Präzisionsdrehteile aus Messing, verchromt und poliert. Fluid Tipps sind aus Nickel-Silber-, Edelstahl-Nadeln, die Packungswäschers PTFE und Nylon-Griff. Diese Airbrush bevorzugt von Profi-und Amateur gleichermaßen - ermöglicht ein hohes Maß...
  • Page 5 VLN-1, 3 oder 5 Nadel (1 & 5 Optionale) es, die Standard-Farben fließen. MIL-12 O-Ring für MIL-10 Griff AUS-/EINBAUEN VON NADEL UND GRIFF: 1. Den Griff losschrauben und die Sicherungsmutter (12) gegen den Uhrzeigersinn lösen. Den Tasthebel (8) nach unten gedrückt halten und gleichzeitig die Nadel herausnehmen bzw. einsetzen. Auf diese Weise ist sichergestellt, dass die Nadel ungehindert am Tasthebel vorbeigeführt werden kann.
  • Page 6: Problembehebung

    PROBLEMBEHEBUNG: Blasenbildung im Becher: 1. VLH Kopf (3) mit Schlüssel festziehen Ungleichmäßiger oder unregelmäßiger Farbausstoß: 1. Zu dicke Farbe - Verdünner beigeben 2. Spitze nicht richtig festgezogen - VLH Kopf mit Schlüssel festziehen 3. Spitze geteilt oder Nadel beschädigt - Spitze bzw. Nadel austauschen 4.
  • Page 7 NOTICE D’UTILISATION ET PIÈCES DE RECHANGE INTRODUCTlON : Les modèle Paasche® - MILLENNIUM offrent une construction artisanale utilisant des matériaux de qualité. Les corps sont en laiton usiné, poli et chromé. Les buses de liquide sont fabriquées en argent nickelé, les aiguilles en acier inoxydable, la rondelle d’étanchéité...
  • Page 8 N° PIÈCE DESCRIPTION 18. VL-214 Piston de soupape (avec A-53) 9. MIL-4 Ensemble de culbuteur 19. A-22 Ressort de soupape 10. MIL-11 Ressort 20. A-23R Écrou de soupape à air 11. V-136A Gaine de réglage d’aiguille Articles en option : 12.
  • Page 9 Maximum de 20 à 35 P.S.I. Pression de service en fonction de l’aérographe utilisé. Le D500SR Paasche est une unité piston Oilless et vient avec le R-75 Régulateur / filtre avec manomètre. Elle opère sur 110-120 volts, 1 phase, 60 Hz, et délivre ,4 CFM@20 p.s.i. R75 Régulateur va réguler jusqu’à...
  • Page 10 Presión de aire máxima: 7 5 psi. INSTRUCCIONES Y PIEZAS DE RECAMBIO INTRODUCClÓN: Paasche ® Modelo del MILLENNIUM aerógrafo están construidos a mano y con materiales de calidad. Los cuerpos de bronce están maquinados, pulidos y cromados. Las boquillas para líquido están fabricadas de plata y níquel, las agujas son de acero inoxidable, la arandela de obstrucción es de PTFE y la empuñadura es de nylon.
  • Page 11: Solución De Problemas

    Contratuerca Elementos opcionales: VLN-1, 3 ó 5 Aguja (Los tamaños 1 y 5 Optativa) VLN-1POL Aguja pulida MIL-12 ‘O’ el anillo de MIL-10 Mango 13a. VL-54 Escariador MIL-10 recortes estándar de distancia de aluminio manejar 15a. TAL-34 Conjunto de maneta permite el preajuste de la MIL-9 Carcasa de la válvula...
  • Page 12 Máximo 20 a 35 P.S.I. presión de funcionamiento dependiendo de aerógrafo que se utiliza. El D500SR Paasche es una unidad de pistón sin aceite y viene con el R-75 Regulador / Filtro con indicador.Opera en 110-120 voltios, 1 fase, 60Hz, y ofrece .4CFM@20 p.s.i.R75Regulador regulará...
