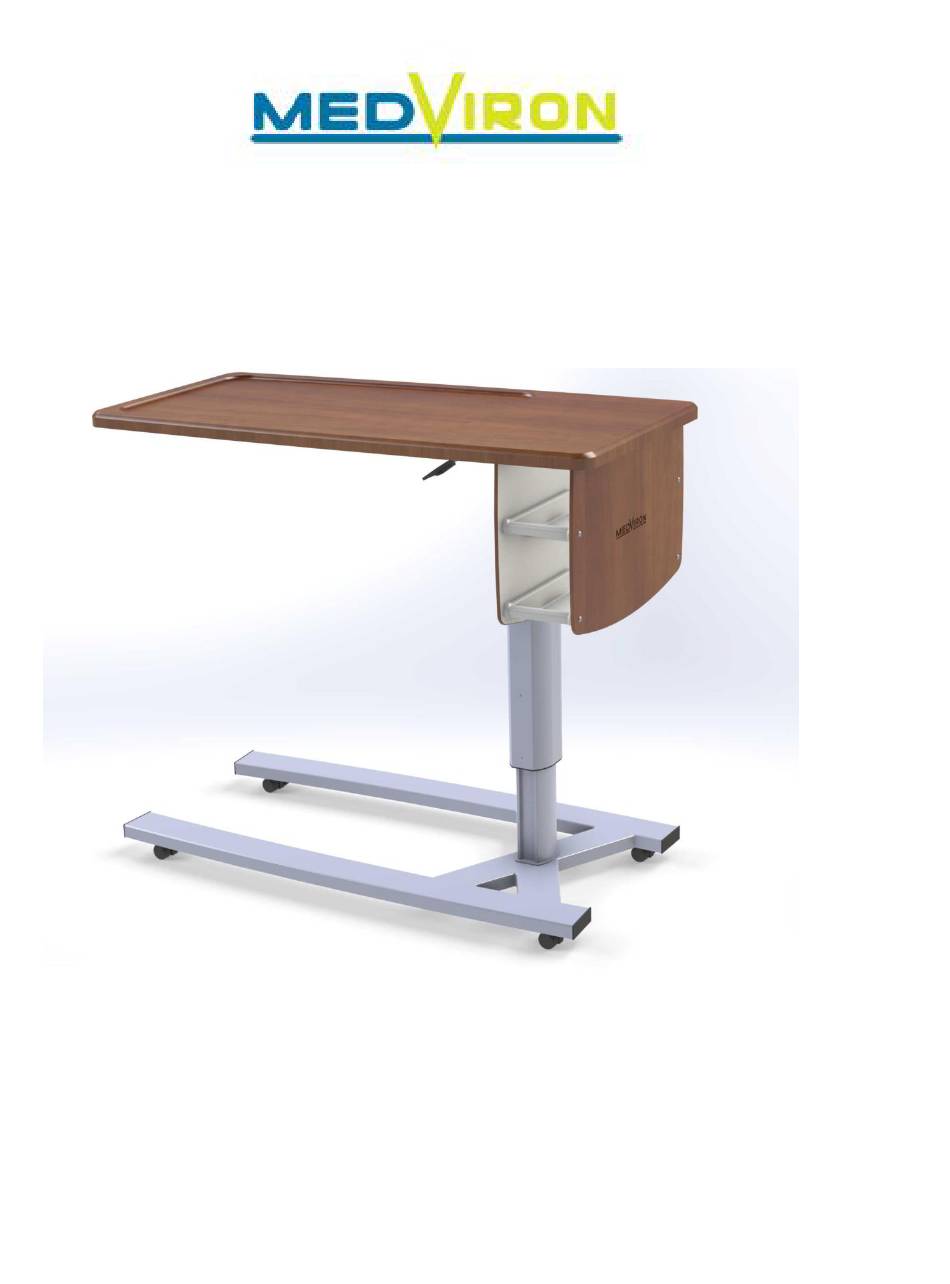

- Page 1 Service Manual 39” Medviron Overbed Table...
- Page 2 Table of Contents Section 1 Caster Replacement Section 2 Plug Replacement Section 3 Top Replacement Section 4 Gas Spring Replacement Section 5 Pedestal Service Section 6 Vanity Service...
- Page 3 Section 1: Service Instructions for MedViron Overbed Table Caster Replacement This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required ½”...
- Page 4 Section 2: Service Instructions MedViron Overbed Table Base Plug Replacement This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required ...
- Page 5 Section 3: Service Instructions OBT 39” Top Replacement This manual is intended for trained professionals for adjustment of the Medviron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required 5/32” Allen wrench #2 Square driver bit (Provided) 3.0 Remove the top...
- Page 6 Section 4: Service Instructions – Gas Spring Replacement MedViron 39” Overbed Table This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty.
- Page 7 Remove the top washer by removing the 2 screws that are attached to the upper column, NOTE: keep hold of the upper column while removing the screws to prevent the column from dropping. Next loosen the 2 nuts holding the gas spring to the top washer. Remove the top nut & the top washer & set aside.
- Page 8 Attach the X-Base to the column using the screws, washers & anti-mushroom plate removed in step 4.4 (Figure 5). Attach the top washer removed in step 4.3 to top of gas spring. Thread on the top nut. Adjust the nut setting so that the “L” lever is perpindicular (Figure 7). Figure 7 4.10 Attach the upper column to the top washer.
-
Page 9: Section 5: Service Instructions
Section 5: Service Instructions MedViron Overbed Table 39” Pedestal This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools that may be required ... - Page 10 Place the (6) connector bolts thru the new side and begin to thread them into the corresponding rods, make sure to place the (4) washers between the side & the lower (4) rods. Once all (6) connector bolts have been partially threaded, finish tightening them. If replacing two sides, repeat the process for the other side.
- Page 11 Section 6: Service Instructions Vanity Tray Replacement This manual is intended for trained professionals for adjustment of the Medviron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools that may be required...
- Page 12 the rail slightly closer to the vanity and retighten the screws. Repeat the process with the other (3) screws on the same rail. If the vanity is too tight, use the same process but move the rail slightly farther away from the vanity.
