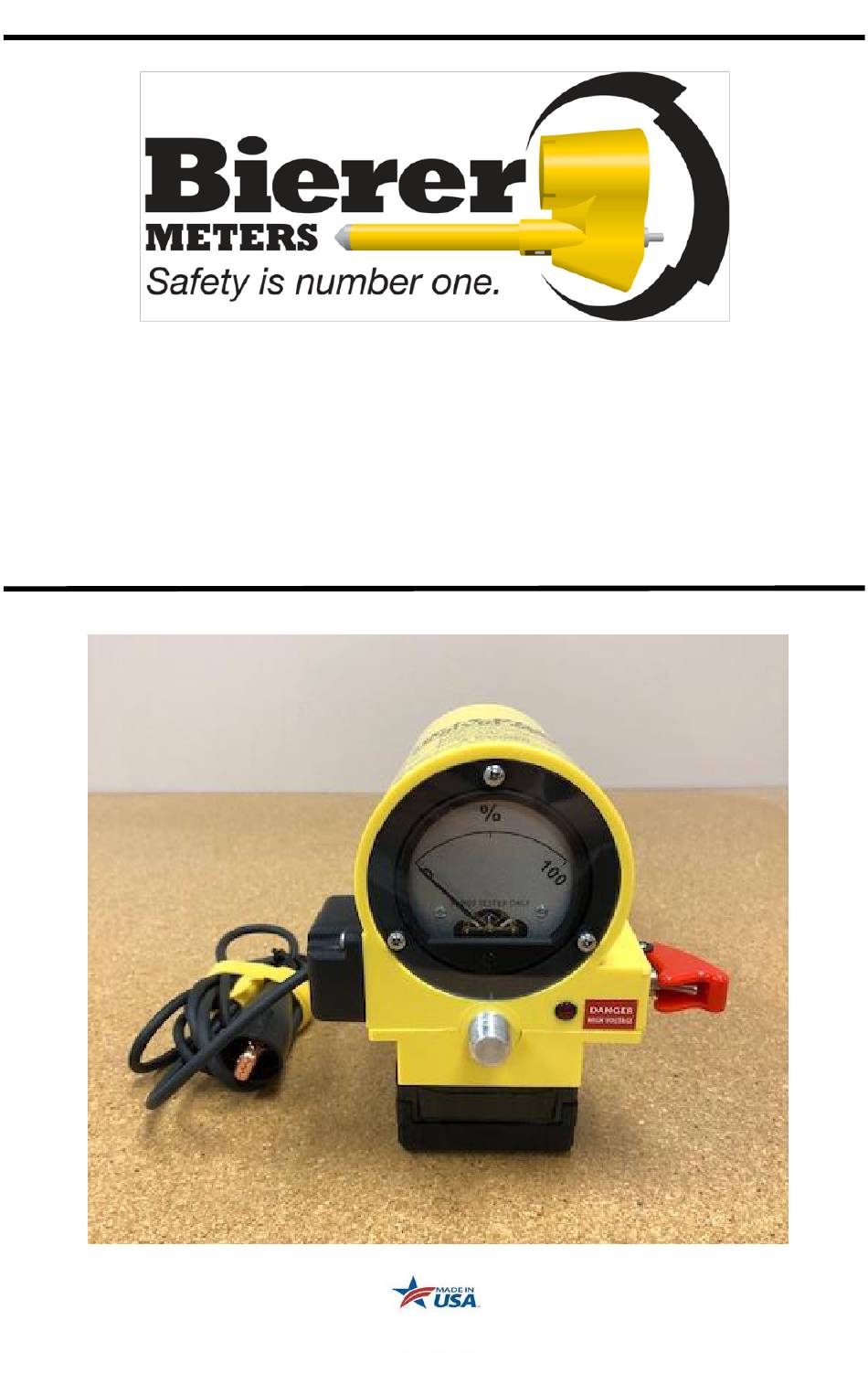

- Page 1 Manufacturing & Service: Bierer & Associates Inc. HP72-DCXL HI POT DEVICE Operating Instructions...
- Page 2 Bierer & Associates Inc. Bierer & Associates Inc. do not express or imply to be an insurer of these risks, and by purchasing or using this product you AGREE TO ACCEPT THESE RISKS. IN NO EVENT SHALL Bierer &...
- Page 3 PRODUCT SAFETY INFORMATION WARNING Meter assembly, interconnect cable assembly, and live line tool adapters shall be considered non-insulating. Do not let live line tool fittings come in contact with energized or grounded conductors. The live line tool adapters, fittings, and handles supplied with meters shall not be used on any other devices.
- Page 4 DESIGN and FUNCTION The HI POT DEVICE is designed to HI POT de-energized 15kV class cables. The tools transforms 18 volts from the battery to approximately 8,000 volts DC. When the battery is installed and the safety switch is in the closed position, the unit is in voltage detection mode.
- Page 5 URD CABLE DC LEAKAGE TESTER “Hi-Potting” WARNING – see “Meter Set-Up & Testing”, page 4. Testing De-Energized URD cable 1. Attach Meter to appropriate length live line tools for the voltage being worked. 2. Attach a bushing adapter to the end of the meter probe. 3.
- Page 6 NOTES______________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
- Page 7 Quick Change to Grip All Adapter 3403 Quick Change to Universal Adapter 8128EALB 15 – 25kV Elbow Adapter 8128TBALB 15 - 25kV Bushing Adapter Technical & Service Bierer & Associates Inc. Manufacturing & Repair 10730 Farrow Rd. Blythewood, SC 29016 Tel: (803) 786-4839 Fax:(803)786-5457 bierermeters.com...
