Page 1: Operating Instructions

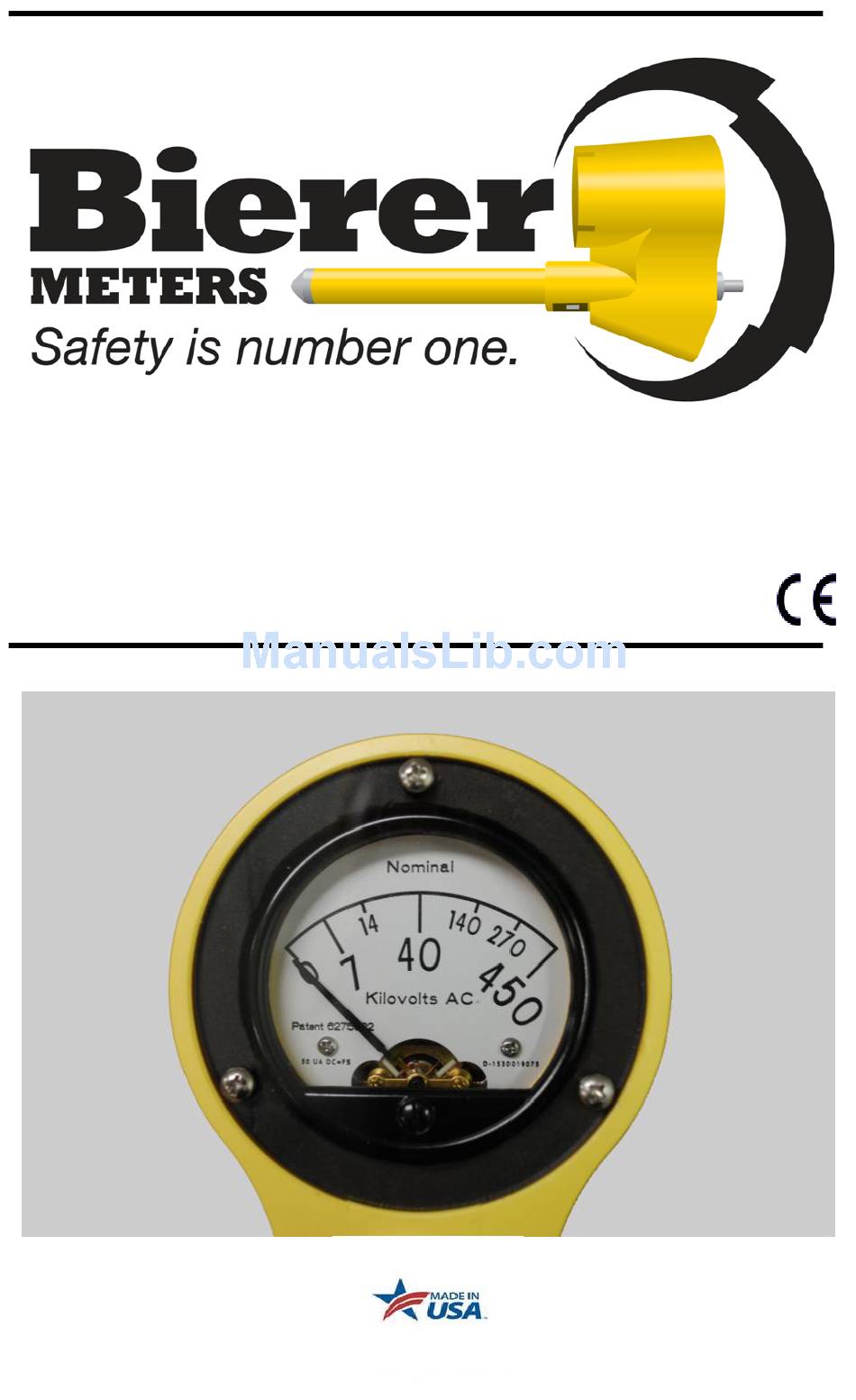

Analog Voltage Detector 1-450kV Operating Instructions VDAO450 Patent No. 6,275,022... -
Page 2: Table Of Contents
CONTENTS Limitation of Warranty and Liability Product Safety Information Design and Function Operating Procedure Accessories Notes... -
Page 3: Limitation Of Warranty And Liability
Bierer & Associates Inc. Bierer & Associates Inc. do not express or imply to be an insurer of these risks, and by purchasing or using this product you AGREE TO ACCEPT THESE RISKS. -
Page 4: Product Safety Information
PRODUCT SAFETY INFORMATION WARNING 1. Meter assembly and live line tool adapters shall be considered non-insulating. Do not let live line tool fittings come in contact with energized or grounded conductors. 2. Use appropriate length live line tools for voltage being worked and maintain minimum approach distances as outlined in OSHA 1910.269, Table R-6. -
Page 5: Design And Function
DESIGN and FUNCTION The VDA0450 is a direct contact, linear/ logarithmic scale (linear to 14), capacitive type voltage detectors for use on system voltages up to 500kV/765kV (Phase-to- Phase). Direct contact with line conductors and equipment indicates approximate nominal Line-to-Ground voltage or induced voltage. Completely shielded, the tester reads only contacted test points. -
Page 6: Operating Procedure
OPERATING PROCEDURES Test voltage detector for proper operation by turning the selector switch to the ''T'' position. Meter should deflect full scale (450kV) with a new battery in the “T” position. Readings below 140 indicate low battery. Install appropriate end fitting into the meter probe, straight, hook or bushing/elbow adapter for URD. -
Page 7: Accessories
Universal / Grip All Combo Adapter VDA18B Storage Box with Foam Padding 81280IE Insulated Zero Ohm Extension Adapter Technical & Service Bierer & Associates Inc. Manufacturing & Repair 10730 Farrow Rd. Blythewood SC 29016 Tel: (803) 786-4839 Fax: (803) 786-5457... -
