DentalEZ Fusion 9700 Operator's Manual

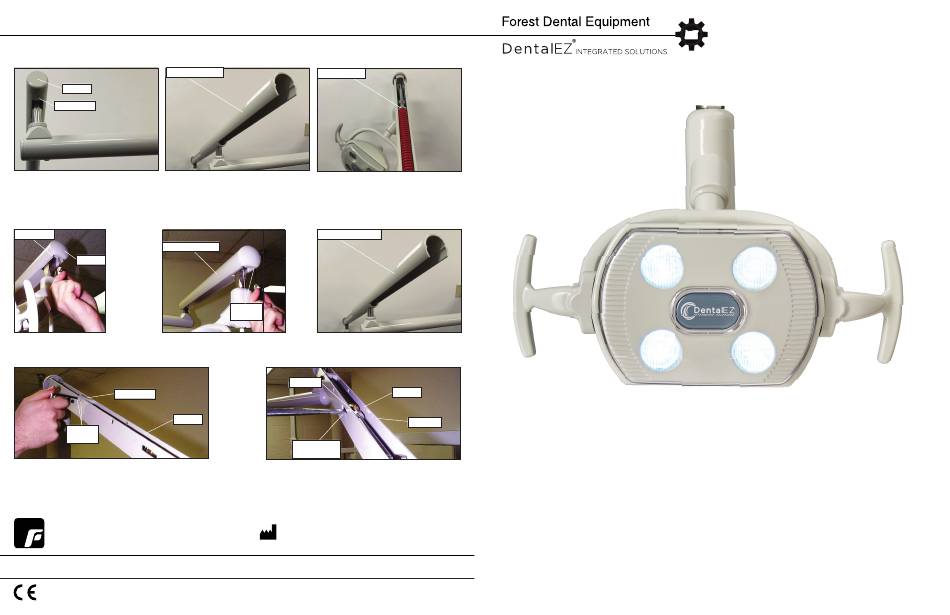

Adjusting Flex Arm Friction
Tools Required: Standard Hex Key Set, Large Flat-Head (slotted) Screwdriver and Phillips Head Screwdriver.
Pivot Post Light
Flex arm top cover
End cap
Phillips screw
1. Using a phillips head screwdriver, loosen the #6 screw under the cap at the end of the flex arm nearest the rigid arm.
2. Remove the end cap and slide off the flex arm top cover.
3. Insert a large flat-head screwdriver and tighten the slotted nut to adjust spring tension.
4. Replace the flex arm top cover and end cap securing with the phillips head screw previously removed.
Ceiling Light
Phillips screw
Flex arm top cover
End cap
1. Using a phillips head screwdriver, loosen the #6 screw under the cap at the end of the flex arm nearest the light head.
2. Using a 1/16" hex key, remove the four housing screws from the underside of the flex arm (two on each end). Then slide off the flex arm top
cover along with the end cap.
Friction block
Flex arm
Two small
holes
3. Insert a 9/64" hex key into the two small holes in the side of the flex arm and completely loosen the friction block
4. Insert a large flat-head screwdriver into the large slot and tighten the slotted nut to adjust flex arm spring tension.
5. Adjust the friction block to provide one to two pounds maximum of break-away force.
6. Replace the flex arm cover and secure using the four 5/64" hex key screws previously removed.
7. Replace the end cap and tighten the #6 screw using a phillips head screwdriver.
