Summary of Contents for Futura FUTIH2000W

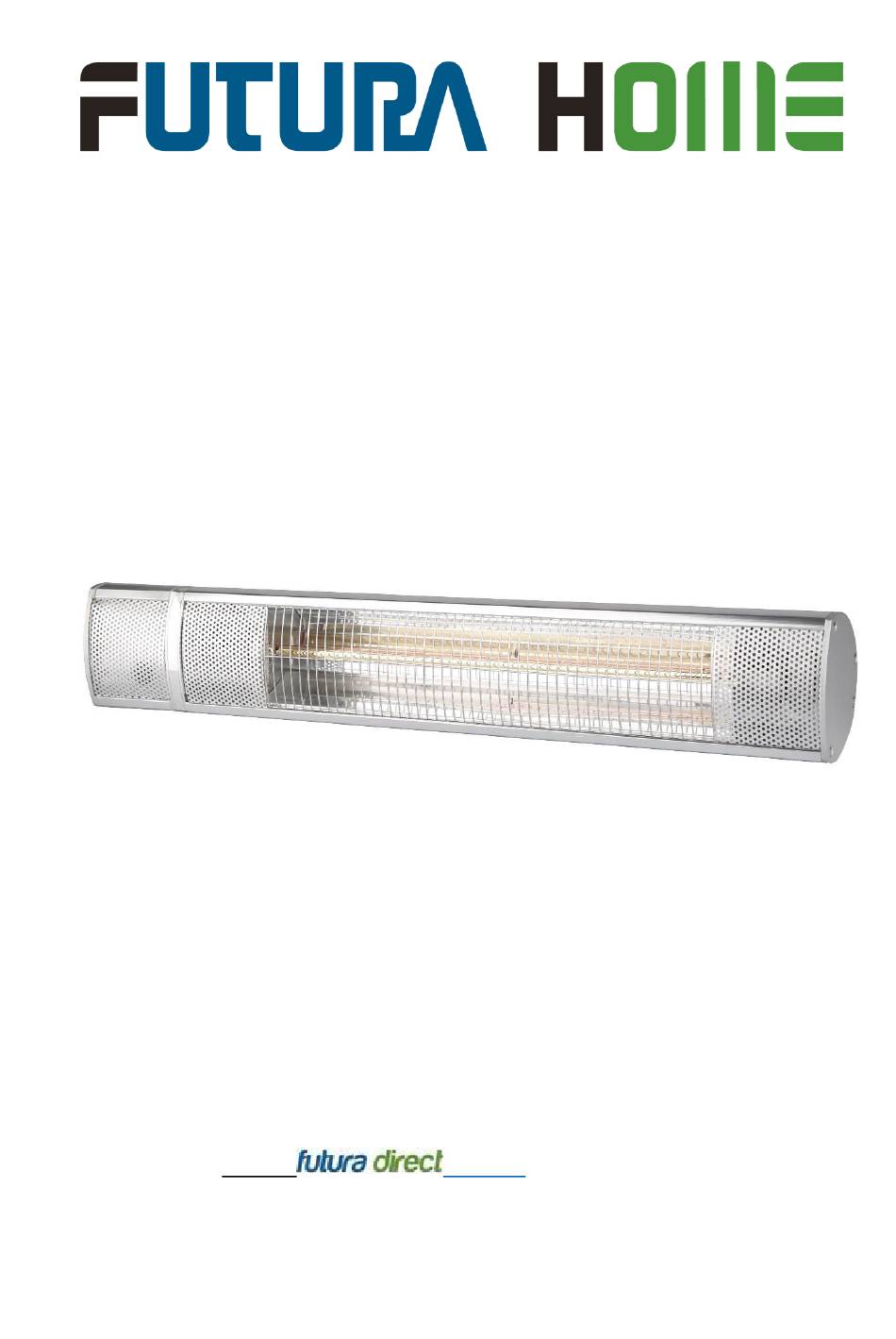

- Page 1 2000W Infrared Heater FUTIH2000W REGISTER YOUR GUARANTEE www. .co.uk/guarantee User Manual— Please read and retain for future reference...
- Page 2 Thank you for choosing our Futura Infrared Heater. Please be sure to read this users’ manual carefully before using the unit. If you should encounter any problems, please contact a qualified service technician for help. Contents Parts List Technical Information...
- Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
- Page 4 Technical Information 2000W Infrared Heater Model: FUTIH2000W Voltage: 220 - 240V~ 50Hz Rated Power: 2000 W Heating Setting: 750W/ 1500W/ 2000W Protection against electric shock: Class I Protection against harmful ingress of water: IP65 IMPORTANT Read these instructions fully before using the heater. Retain these instructions for future reference.
- Page 5 1. Do not use the appliance in areas where petrol, paints or other flammable substances are used or stored. The minimum distance of your appliance from the ground is 1.8 m (6 feet). 2. The minimum distance of your appliance from the ceiling is 0.7 m (2.5 feet).
- Page 6 Using your Units Fig. 2 Screw Installation the Ceiling and Wall Fig. 1 Min. Distance to the Ground Fig. 3 Attachment Installation Before Installation a. Before the installation, these matters need to attention: 1. Products should be put down gently 2.
- Page 7 should guarantee the bottom minimum height of 1.8 m from the ground, ceiling, roof, or other coverings minimum distance is 0.2 m, the minimum distance with both sides wall is 0.5 m (as shown in fig. c. Install set screw According to the product installation location, three position with percussion drill diameter of 8 mm round hole (as shown in fig.
- Page 8 Operation: (Fig. 4 and 5) On/Off Switch Fig. 4 Attachment Installation Fig. 5 Remote Control 1. The heater must be supplied with proper voltage and frequency (AC220-240V, 50Hz), and connected to an individual, properly grounded branch circuit, protected by a circuit breaker which in accordance with wiring rules.
- Page 9 Maintenance: Attention! Careful and regular maintenance of Infrared Heater is required to attain a long and efficient operation of your appliance. 1. Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning and maintenance instructions. 2.
- Page 10 collected and sent for recovery in an environmentally-friendly manner. Declaration of Conformity The declaration is to certify that it conforms to CE, EMC, LVD and RoHS directives: EN55014-1:2006 + A1 + A2 EN55014-2: 1997 + A1 + A2 EN55015: 2013 EN61547: 2009 EN61000-3-2: 2006 + A1 + A2 EN61000-3-3: 2013...
- Page 11 Please read the following carefully ACL Group (Intl) Ltd. and/or its distributor have provided the parts list and assembly diagram as a reference tool only. Neither ACL Group (Intl). Ltd. or its distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to do any repairs or replace any parts of this product.
- Page 12 Contact us at www.futuradirect.co.uk/contact Register at www. .co.uk/ guarantee We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the Heater is exclusively manufactured for Futura Direct Ltd and has been manufactured according to our full quality assurance procedures.
