Summary of Contents for Futura FPH400

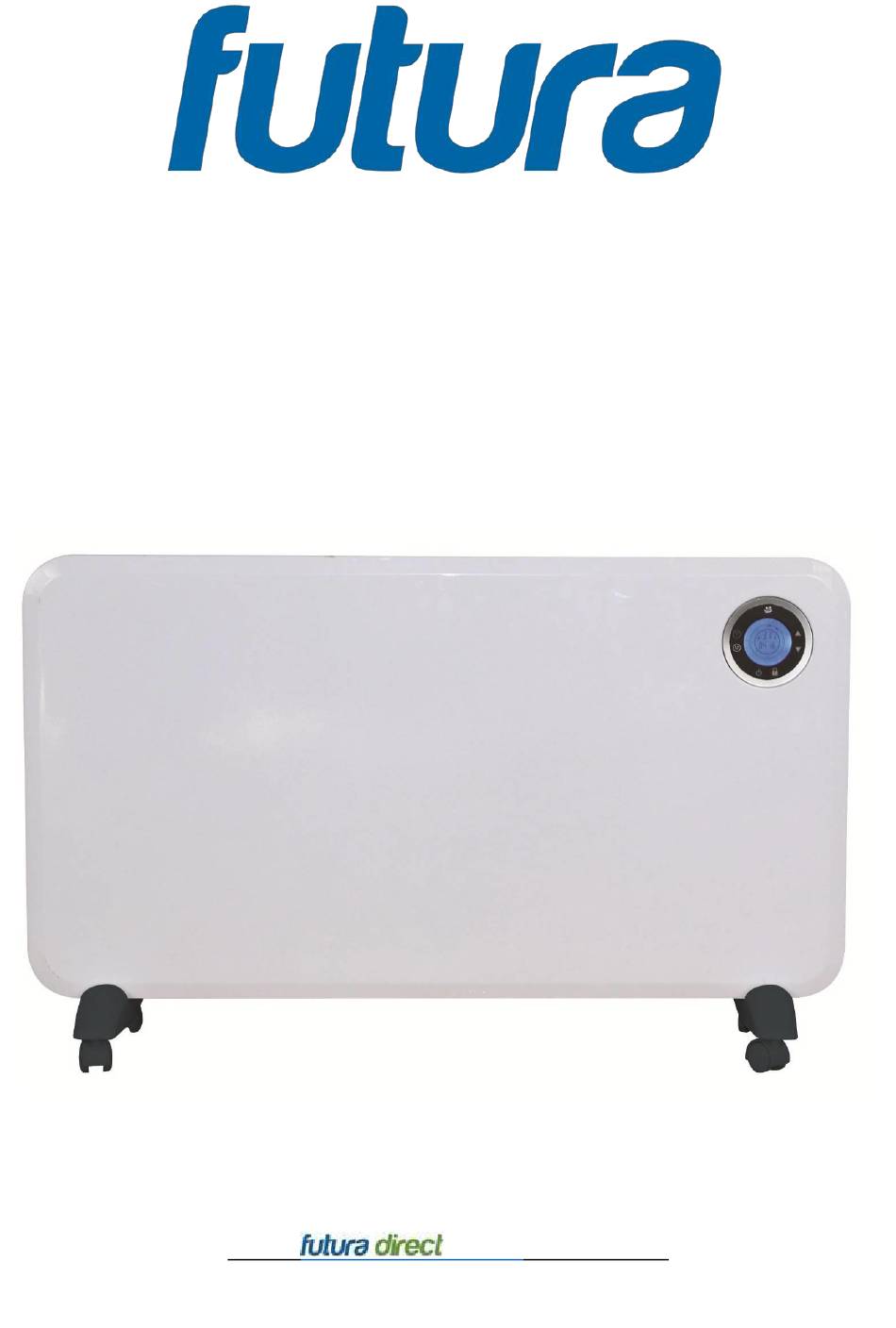

- Page 1 Digital Panel Heater FPH400 FPH1000 FPH1500 FPH2000 REGISTER YOUR GUARANTEE www. .co.uk/guarantee User Manual— Please read and retain for future reference...
- Page 2 Thank you for choosing our FUTURA Digital Panel Heater. Please be sure to read this users’ manual carefully before using the unit. If you should encounter any problems, please contact a qualified service technician for help. Contents Parts List Technical Information...
- Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
-
Page 4: Technical Information
4. Feet 5. Caster 6. Hanging Hook 7. Back Panel Fig. 1 Technical Information Digital Panel Heater Model: FPH400 Voltage: 220V-240V~ /50HZ Rated Power: 400W Heat Setting: 200W/ 400W IP rate: IP24 Model: FPH1000 Voltage: 220V-240V~ /50HZ Rated Power: 1000W... - Page 5 Model: FPH2000 Voltage: 220V-240V~ /50HZ Rated Power: 2000W Heat Setting: 1000W/ 2000W IP rate: IP24 IMPORTANT Read these instructions fully before using the Panel heater. Retain these instructions for future reference. Important Safeguard Instructions 1. The product is for household use only 2.
-
Page 6: Safety Instructions
Safety Instructions 1. Check whether or not the local power supply matches the appliance electric rating printed on the label before operation. 2. Children should be supervised to ensure that they do not play with the appliance. If the appliance is damaged, do not use it. 3. -
Page 7: Before Use
25. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Before use 1. Remove the heater carefully from the packaging. 2. - Page 8 4. Hang the product onto the hook holes of on the back. Fig. 3 Fig. 4 Fig. 5...
-
Page 9: Control Panel
Fig. 6 Using your Heater 1. Place the heater on flat stable surface or mount to the wall as previously shown. 2. Make sure the power switch is in the off position. 3. Plug the heater in. 4. If the appliance is not going to be used for a long time, switch it off with power switch and unplug the heater. - Page 10 Display Screen Economy Mode Comfort Mode Heating Frost-free Mode Program Timer Mode Display Days of week Clock Temperature Display Lock Hour Minute Heating Display Fig. 8 First Use Warning! Before using the equipment for the first time, check that the voltage supply is the same as the voltage details set out on the rating label.
- Page 11 1. Plug in the unit’s power plug into a 220-240V AC electrical outlet. 2. The first step when you want to use the appliance is to turn on the Power switch. 3. After the main switch is activated, the equipment will be in standby mode and the screen will light up.
-
Page 12: Setting The Temperature
Setting the Heating Mode “ ” Mode Button 1. Press “ ” button and choose the required heating function from the following 3 modes: Comfort mode , Economy mode ,Frost-free mode 2. When the heater is turned on the screen will display the symbol, the economy mode starts automatically as the default setting. - Page 13 Setting the Time & Day “ ” Time Button 1. Press and hold the “ ” button for 3 seconds, around the border of the screen the “day number” will flash. Press the “ ” and “ ” button to set current day. Note: 1 is Monday, through to 7 which represents Sunday.
- Page 14 1. Press the “Prog” Button and the symbol and “Day” icon will light up on the display. Press “ ” and “ ”button to set the required day. 2. After setting the Day, press the “Prog” button again, the hour number will flash on the screen.
- Page 15 From Monday to Friday Weekend Fig. 12 --- P2 Mode From Monday to Friday Weekend Fig. 13 --- P3 Mode Heating Modes Explained 1. Comfort mode: When the room temperature reaches 2 degrees lower than the pre-set temperature on the heater, the heating will switch on. The icon will display on screen.
-
Page 16: Resetting The Heater
display on screen. Once the room temperature reaches 4 degrees above pre-set temperature the heating switches off. The icon will now cease to display. 3. Frost-free mode: In this heating mode the heater only switches itself on when the heater reaches a temperature of 5 degrees. Once the temperature reaches 7 degrees the heater will automatically turn its self-off. -
Page 17: Declaration Of Conformity
FUTURA Direct Ltd. and its distributor expressly state that all repairs or parts replacement should be done by certified or licensed technicians. - Page 18 24 Months Limited Warranty If within 24 months from the date of purchase you experience any problems with your product, please return the product to its distributor/dealer for repair or replacement. This warranty DOES NOT COVER normal wear, or any damage as a result of accidents, misuse, abuse or negligence.
- Page 19 Contact us at www.futuradirect.co.uk/contact Register at www. .co.uk/ guarantee We FUTURA Direct Ltd, England DN6 7AY declare that the panel heater is exclusively manufactured for Futura Direct Ltd and has been manufactured according to our full quality assurance procedures.
