System Sensor RTS151KEY Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
RTS151KEY(-A)
Remote Test Station

SPECIFICATIONS

Dimensions:
Weight:
Power Requirements
Power LED (Green):
Alarm LED (Red):
Alarm Response Time:
Temperature:
Humidity:
Listing:
NOTE: RTS151KEY(-A) replaces RTS451KEY.
NOTICE: This manual shall be left with the owner/user of this equipment.
NOTE: A test coil is required only for use with D2/DNR/DH400/DH500
models.
For D2 models order part # DCOIL.

GENERAL INFORMATION

The System Sensor RTS151KEY(-A) is an automatic fire detector accessory
designed to test remotely located duct and beam detectors. For 4-wire detec-
tors, the RTS151KEY(-A) features a multi-colored LED that alternates between
steady green and red. Green indicates power and that the detector board is
in place. Red indicates alarm. For 2-wire detectors, the LED will show red for
alarm. Consult the detector installation instructions for additional information.
The National Fire Protection Association has published codes, standards, and
recommended practices for the installation and use of this product. It is rec-
ommended that the installer be familiar with these requirements, with local
codes, and any special requirements of the local authority having jurisdiction.

RTS151 CONTENTS

1 RTS151KEY(-A) remote test station
1 screw pack (2 mounting screws)
2 Keys

OPERATION

Test Function

Insert the key and turn clockwise to the "TEST" position.

Alarm Indication

With the key in the "TEST" position, some time will elapse (40 seconds maxi-
mum) depending on the detector type, before the alarm indicating LED will
turn red.

Reset Function

Turn the key counterclockwise to the "RESET" position and hold. The LED
should turn off. Then, turn the key back to the "NORMAL" position and re-
move. The RTS151KEY(-A) is capable of resetting only certain models of detec-
tors. Refer to the detector installation instructions for additional information.

Wiring Instructions

Consult the appropriate detector installation instructions for the applicable
wiring diagram. The RTS151KEY(-A) mounts to a single gang box (2.5˝ mini-
mum depth), or directly to the wall or ceiling.
In Canadian applications, the RTS151KEY(-A) is intended to be located in the
same room as the smoke detector and within 60 feet of the unit.
4.6˝ H × 2.75˝ W × 1.8˝ D (11.69 cm x 6.99 cm x 4.57 cm)
0.24 Lbs. (0.11 kg)
14 – 35 VDC, 12 mA maximum
2.8 – 32 VDC, 12 mA maximum
40 seconds maximum
–10°C to 60°C (14°F to 140°F)
95% relative humidity, noncondensing Max
UL, FM, CE

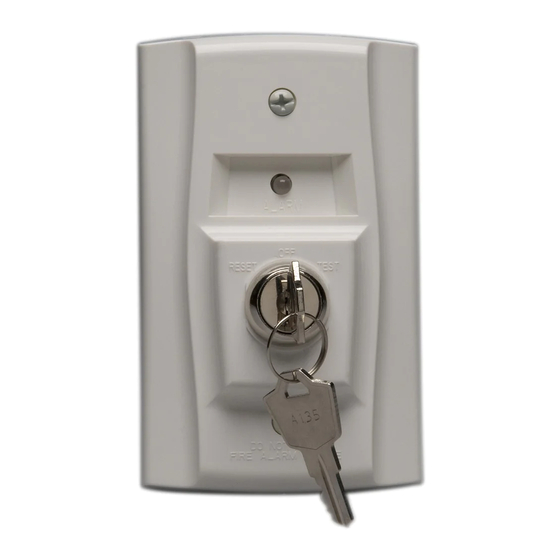

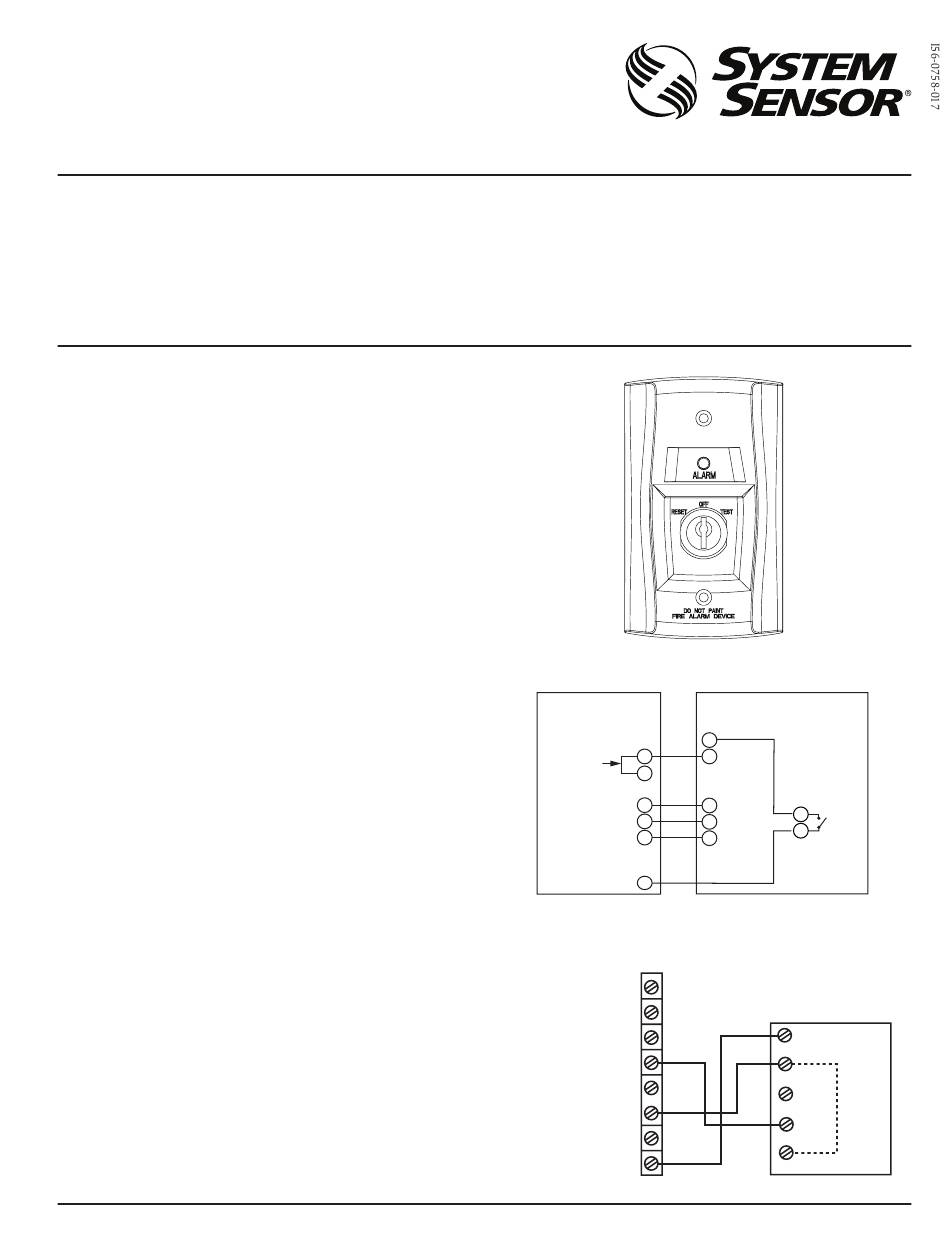

FIGURE 1. RTS151KEY(-A)
FIGURE 2. CONNECTING A RTS151KEY(-A) TO A D4120 4-WIRE DUCT
SMOKE DETECTOR
RTS451KEY(-A)
FIELD
2
INSTALLED
4
JUMPER
1
(RED LED)
ALARM
5
3
(GREEN LED)
POWER
6
* Sup. contacts cannot be used if they are wired to control panel.
FIGURE 3. CONNECTING A RTS151KEY(-A) TO A DNR 2-WIRE DUCT
SMOKE DETECTOR WITH REMOTE TEST CAPABLE HEAD
TEST COIL +
TEST COIL –
COMM +
OUT (CONV ONLY) +
COMM –
RA/RTS –
RA +
RTS +
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1.800.SENSOR2; Fax: 630.377.6495
www.systemsensor.com
D4120
AUX OUT +
19
20
AUX OUT –
*
15
ALARM
14
SUP, NO
11
R TEST
SUP, C
3
R RESET
2
H0582-21CDN
RTS451/RTS451KEY(-A)
RTS151/RTS151KEY(-A)
1
2
3 JUMPER
4
5
H0633-00CDN
I56-0758-017
05/29/2019
H0195-01
