INSTALLATION AND MAINTENANCE INSTRUCTIONS

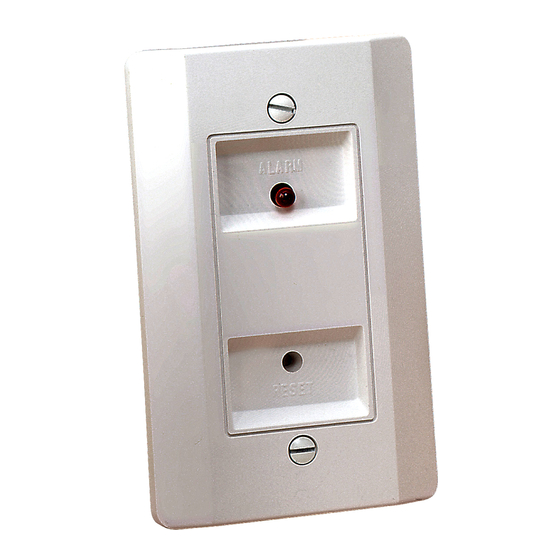

RTS451 Remote Test Station

Specifications

Dimensions:
Weight:
Power Requirements
Alarm LED:
Total Current:
Test Switch:
Reset Switch:
Alarm Response Time:
Temperature:
Humidity:
NOTICE: This manual shall be left with the owner/user of
this equipment.
NOTE: A test coil is required only for use with DH400/
DH500 models. For DH400 models order part # COIL400.
For DH500 models order part # COIL.

General Information

System Sensor's RTS451 is an automatic fire detector acces-
sory designed to test a remotely located detector. Consult
detector installation instructions for additional information.
The National Fire Protection Association has published
codes, standards, and recommended practices for the in-
stallation and use of the above product. It is recommended
that the installer be familiar with these requirements, with
local codes, and any special requirements of the local au-
thority having jurisdiction.

RTS451 Contents

1 RTS451 remote test station
1 #4 screw for mounting bracket
1 screw pack (2 mounting screws)
1 M02-04 test magnet

Wiring of RTS451

Consult the appropriate detector installation instructions
for the applicable wiring diagram. The RTS451 mounts to
a single gang box (2 1 / " minimum depth), or directly to the
2
wall or ceiling.
See Figure 2 for wiring diagram of RTS451 with DH100ACDC
Duct Smoke Detector.
In Canadian applications, the RTS451 is intended to be lo-
cated in the same room as the smoke detector and within
60 feet of the unit.
D440-01-00
4.6˝ H × 2.75˝ W × 1.5˝ D
.11 lbs.
2.8 – 32 VDC, 7.5 mA max.
105 mA max.
10 VA @ 32 VDC
10 VA @ 32 VDC
40 sec. max.
–10°C to 60°C (14°F to 140°F)
95% RH Non-condensing

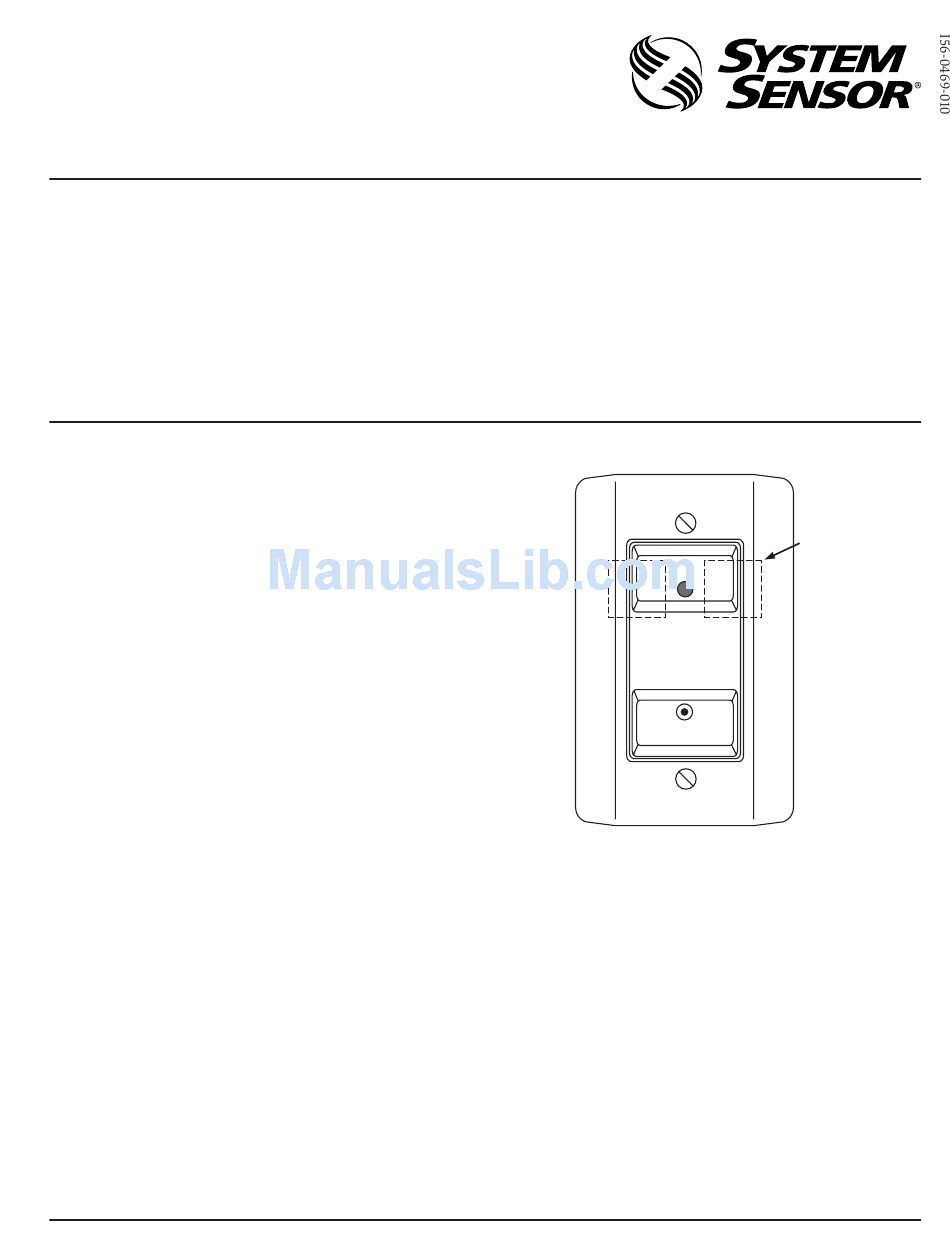

Figure 1. RTS451 Remote Test Station:

Operation

Test Function

Place and hold the painted side of the magnet to the RTS451
on the right or left side of the LED as indicated in the dia-
gram above.

Alarm Indication

With the magnet in place some time will elapse (40 sec.
maximum) depending on the detector type, before the
alarm indicating LED will light.

Reset Function

Gently insert a
til it stops and LED turns off. The RTS451 is capable of reset-
ting only certain System Sensor models of detectors. Refer to
detector installation instructions for additional information.
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
ALARM
RESET
1 / ˝ maximum diameter tool into the hole un-
8
www.systemsensor.com
M02-04
TEST MAGNET
LOCATIONS
H0196-00
I56-0469-010
