Summary of Contents for Viqua Sterilight PLATINUM SPV410-IHS22
- Page 1 SPV410-IHS22 Manufactured in Canada by: COMPONENT 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 623 8116 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com 520175-R-RevF...
- Page 3 WATER CONFIDENCE Each component of your VIQUA system has been designed and developed through extensive research and development to be part of an overall system that operates safely and efficiently over its entire lifetime. get genuine Sterilight lamps are: Safety certified.

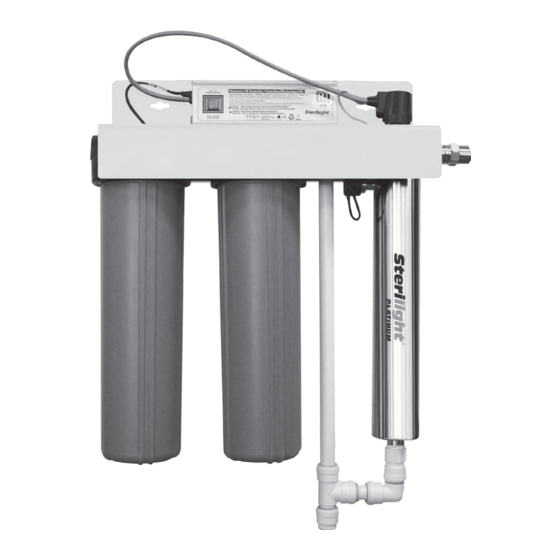

- Page 4 Congratulations , you have just purchased the Sterilight Platinum™ ® drinking water system. By purchasing this device, you have taken the first step in ensuring the safety of your water supply by using a totally non-intrusive, physical disinfection method. Your Sterilight system uses the most advanced UV technology on the market and is designed to provide you with...
-
Page 5: Table Of Contents
Table of Contents: Parts Safety Instructions Water Chemistry Installing Your UV Disinfection System Disinfection Procedure Operating and Maintenance Instructions 7-10 Operation 11-14 Troubleshooting Specifications Manufacturer’s Warranty *CSA/UL certification with approved power cord and lamps only. Potential Safety Measures Hazard UV Exposure Never illuminate UV Lamp outside of the UV Chamber. - Page 6 Symbols: Protective Caution Ground Electrical Fragile Warning WEEE (waste electrical or Eye Protection electronic equipment)* * This symbol indicates that you should not discard wasted electrical or electronic equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
-
Page 7: Parts
Parts: Hard glass, coated Sterilume ®- HO UV lamps for long, consistent life (9000 hours) Platinum Controller S410RL-HO POWER - 100-250V/50-60HZ SPC-ICE-HO lamp connector retaining clip 214 fused quartz sleeves with fire polished ends QS-410 gland nut RN-001 o-ring 410867 bracket 420574-R flow... -
Page 8: Safety Instructions
Safety Instructions: WARNING - Always shut-off water flow and release water pressure before servicing. WARNING - to guard against injury, basic safety precautions should be observed, including the following: 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. CAUTION - Always disconnect power before servicing. 3. -
Page 9: Water Chemistry
Water Chemistry: Water quality is extremely important for the optimum performance of your UV disinfection system. The following levels are recommended for installation: • Iron: < 0.3 ppm (0.3 mg/L) • Hardness*: < 7 gpg (120 mg/L) • Turbidity: < 1 NTU •... - Page 10 this manual. If the water is to be consumed while the system is off-line, the water must be boiled for twenty minutes prior to consumption. Select a suitable location for the disinfection system and its related components. As it is recommended to install a ground fault protected circuit (GFCI), make sure that this is taken into consideration prior to any installation.
- Page 11 power to the system and lamp illumination. It is important to NEVER LOOK DIRECTLY AT THE GLOWING UV LAMP . Allow the water to run for a few minutes to clear any air or dust that may be in the reactor. PLEASE NOTE: When there is no flow, the water in the cell will become warm, as the UV lamp...
-
Page 12: Disinfection Procedure
Disinfection Procedure: UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. Since UV does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be chemically disinfected to ensure that the water is free from any bacteriological contaminants. -
Page 13: Operating And Maintenance Instructions
OPERATION • Always disconnect power before performing any work on the disinfection system. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. • Replace the UV lamp annually (or biennially if seasonal home use) to ensure maximum disinfection. - Page 14 fully over the retaining nut, slide the metal ring back in to lock the connector in place (Figure 2E). As this connector is keyed to the reactor chamber, make sure the notch on the connector (Figure 2D) is located over the ground nut located on the reactor chamber.
- Page 15 UV Sensor Replacement / Cleaning: The UV sensor is very delicate instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse.
- Page 16 It is recommended to change the filter cartridges every six months (or earlier). A gradual drop in water pressure after the filtration device is an accurate method of determining that the pre-filter cartridges are nearing the end of their useful life! To change the cartridges, please follow the following procedures: Note: Prior to performing any work on the whole home system, ALWAYS DISCONNECT THE POWER SUPPLY FIRST.
-
Page 17: Operation
Operation: All Sterilight Platinum™ Integrated Whole Home Systems incorporate the ® Platinum ICE™ controller and Flow Pace™ UV sensor. The coupling of these two components provides the most advanced UV monitoring/diagnostic/control device on the market. These two components provide the following controls: Start-up diagnostics Upon power-up, the Platinum Controller runs through a complete set of diagnostic tests and reports either a PASS or FAIL on the push-button display switch. - Page 18 UV Intensity The Flow-Pace™ UV sensor detects the discrete 254nm wavelength of the UV lamp. This information is relayed to the Platinum ICE controller and is displayed in “% UV Output”. The intensity is displayed by pressing the push-button switch a single time. The intensity is displayed as follows: (Note: “H”...
- Page 19 Possible causes for low UV alarm conditions a) The quartz sleeve and/or the sensor window have become stained or dirty. Mineral deposits or sediment in the water that was not detected during the original water analysis may be the cause for this. b) The quality of the influent water has changed and is no longer within the acceptable operational range of the UV system.
- Page 20 Lamp Failure flashing red LAMP The controller continuously monitors the status of the UV lamp. Upon lamp FAILURE failure, the system reverts to the “Lamp Failure Mode” and tries to start the lamp for three times in succession. If unsuccessful, “LAMP FAILURE” is represented on the Controller in a flashing red screen and an audible alarm is activated.
-
Page 21: Troubleshooting
Troubleshooting Guide: Symptom Possible Causes Solutions • replace filter cartridge with appropriate 5 Sediment pre-filter micron cartridge clogged Note: check source water supply as fluctuations Pressure Drop may occur in source pressure • flow regulator will result in pressure drop Flow regulator when approaching full flow •... -
Page 22: Specifications
Two 20” high flow Shipping Weight 25 lbs (11.3 kg) Inlet Port Size / Outlet Port Size 1“ NPT Standard 55 System incorporates VIQUA/Sterilight SPV-410 Class A Other Approvals 1. Flow rates stated as determined by NSF/ANSI Standard 55 testing. -
Page 23: Manufacturer's Warranty
(2) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. Please return the defective part to your dealer who will process your claim. - Page 24 VIQUA does not assume any liability for personal injury or property damage caused by the use or misuse of any of the above products. VIQUA shall not in any event be liable for special, incidental, indirect or consequential damages. VIQUA’s liability shall, in all instances, be limited to repair or replacement of the defective product or part and this liability will terminate upon expiration of the applicable warranty period.
