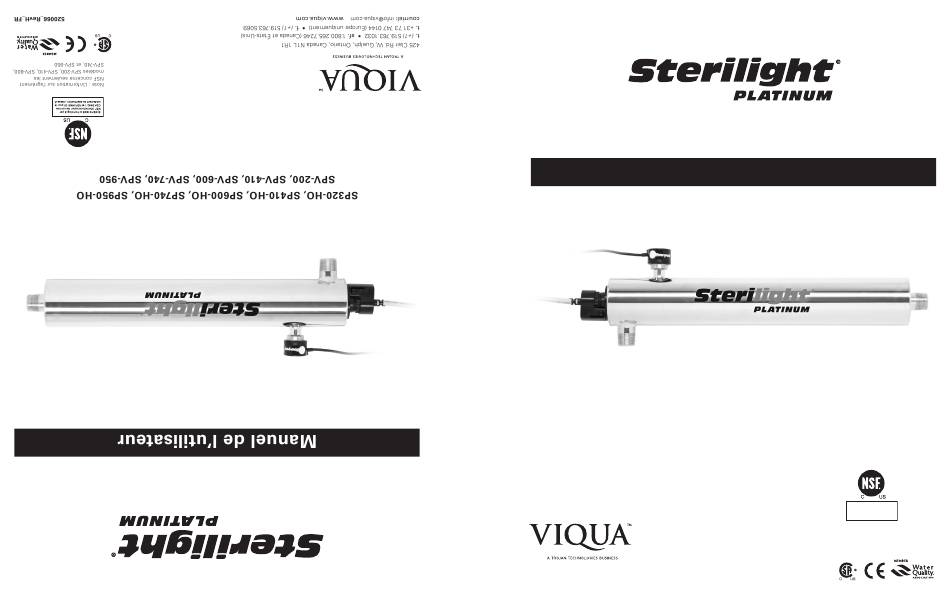

Owner's Manual
SP320-HO, SP410-HO, SP600-HO, SP740-HO, SP950-HO
SPV-200, SPV-410, SPV-600, SPV-740, SPV-950
425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1
t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only)
t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069
e-mail: info@viqua.com
www.viqua.com
System Tested and Certified by
NSF International against CSA
B483.1 and NSF/ANSI 55 for
Disinfection Performance, Class A
Note: NSF Information pertains only
to the SPV-200, SPV-410, SPV-600,
SPV-740, and SPV-950 models.
520066_RevH
Advertisement
Table of Contents
Related Manuals for Viqua Sterilight Platinum P410-HO
Summary of Contents for Viqua Sterilight Platinum P410-HO
- Page 1 SPV-200, SPV-410, SPV-600, SPV-740, and SPV-950 models. 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com 520066_RevH...
-
Page 2: Table Of Contents

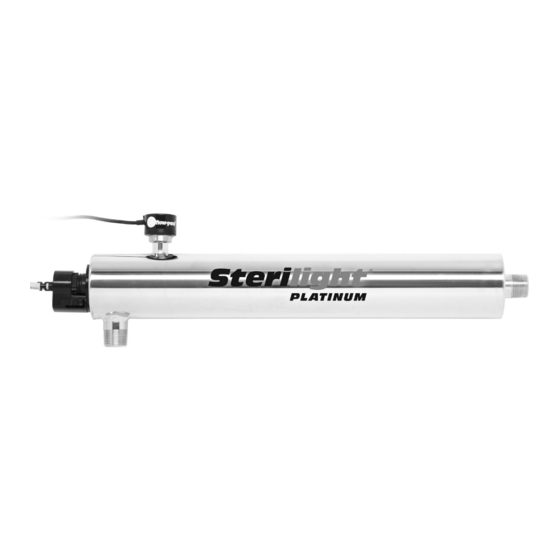

Congratulations, you have just purchased a Sterilight Platinum™ UV disinfection system. ® By purchasing this device, you have taken the first step in ensuring the safety of your water supply by using a totally non-intrusive, physical disinfection method. Your Sterilight system uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with minimal maintenance required. - Page 3 Potential Safety Measures Hazard UV Exposure Never illuminate UV Lamp outside of the UV Chamber. Never look directly at illuminated UV Lamp, even when using protective gear. Always use protective gear, including gloves and UV safety glasses. If accidental exposure occurs, immediately cool affected area and consult physician. Electrical Shock Disconnect power to system before performing any maintenance or repair.
-
Page 4: Parts
Parts: Although your system was quality inspected at the factory, please review this document and en- sure the following parts accompany this system: Controller Connector Lamp refer to page 9 for complete model and part numbers Spring Retaining Nut O-Ring refer to page 9 for complete Quartz Sleeve model and part numbers... -
Page 5: Safety Instructions
Installation: SAFETY INSTRUCTIONS: WARNING - Always shut-off water flow and release water pressure before servicing. WARNING - to guard against injury, basic safety precautions should be observed, including the following: 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. DANGER – to avoid possible electric shock, special care should be taken since water is present near electrical equipment. -
Page 6: Installing Procedure
INSTALLATION PROCEDURE: • The complete water system, including any pressure or hot water tanks, must be disinfected before start up by flushing with chlorine (household bleach) to destroy any residual contamination. • The disinfection system should be connected to a ground fault interrupter. •... - Page 7 4. Mount the Platinum ICE controller horizontally to the wall, near the reactor chamber. Ideally place the controller above the reactor and away from any water connection point, to prevent any water from potentially leaking onto the controller by means of a leak at a connection point or a “sweating” system.
-
Page 8: Lamp Installation And Replacement
LAMP INSTALLATION/REPLACEMENT: WARNING - Always shut-off water flow and release water pressure before servicing. Lamp replacement is a quick and simple procedure requiring no additional or special tools. The UV lamp must be replaced after 9,000 hours of continuous operation (approximately one year) in order to ensure adequate disinfection. -
Page 9: Disinfection Procedure
DISINFECTION PROCEDURE: UV disinfection is a physical disinfection process and adds nothing to the water. As there is no residual, it is imperative that the entire distribution system located after the UV be chemically disinfected to ensure that the water is free from any bacteriological contaminants. -
Page 10: Maintenance
Maintenance: QUARTZ SLEEVE REPLACEMENT/CLEANING: WARNING - Always shut-off water flow and release water pressure before servicing. Mineral deposits and sediment may accumulate on the quartz sleeve decreasing the UV energy detected. Good maintenance of filtration equipment will reduce the accumulation of residues. If necessary, remove the quartz sleeve and clean with a commercially available scale remover (CLR, Lime-Away, etc.) and a lint free cloth. -
Page 11: Uv Sensor Cleaning And Replacement
UV SENSOR REPLACEMENT/CLEANING: The UV sensor is an extremely sensitive and fragile instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse. -
Page 12: Replacement Parts
REPLACEMENT PARTS: Quartz Flow Sleeve Retaining Model UV Lamp Controller UV Sensor Clamp Sleeve Restrictor O-Rings SP320-HO S320RL -HO QS-320 SPC-ICE-HO 254NM-FP1 410867 410076 RN-001 SP410-HO S410RL -HO QS-410 SPC-ICE-HO 254NM-FP1 410867 410076 RN-001 SP600-HO S600RL -HO QS-600 SPC-ICE-HO 254NM-FP1 410867 410076 RN-001... -
Page 13: Warning Systems
WARNING SYSTEMS: All Sterilight® Platinum™ UV disinfection systems incorporate the Platinum ICE™ controller and Flow Pace™ UV sensor. The coupling of these two components provides the most advanced UV monitoring/diagnostic/control device on the market. These two components provide the following controls: Start-up diagnostics Upon power-up, the Platinum Controller runs through a complete set of diagnostic tests and reports either a PASS or FAIL on the push-button display switch. - Page 14 UV INTENSITY The Flow-Pace™ UV sensor detects the discrete 254nm wavelength of the UV lamp. This information is relayed to the Platinum ICE controller and is displayed in “% UV Output” . The intensity is displayed by pressing the push-button switch a single time.
- Page 15 POSSIBLE CAUSES FOR LOW UV ALARM CONDITIONS • The UV lamp has reached a level whereby it can no longer adequately provide a sufficient level of disinfection. The lamp should be replaced with a new lamp from the manufacturer of the same size and type. •...
-
Page 16: Troubleshooting
T RO U B L E SHO OT IN G G U I DE Caution: When performing any work on the disinfection system unplug the unit first and never look directly at the burning UV lamp. SY M PTO M POSSIBLE CAUSES REMEDY •... -
Page 17: Flow Rates And Uv Fluence
20 mJ/cm2 at a UVT of 75%. This is obviously a significant factor and MUST be taken into account when correctly sizing a UV system. We at VIQUA - a Trojan Technologies Company provide the customer with Fluence vs. - Page 18 SP320-HO SP410-HO Not Performance tested or certified by NSF.
- Page 19 SP600-HO SP740-HO Not Performance tested or certified by NSF.
- Page 20 16 mJ/cm 1966 U.S. Public Health document concerning UV disinfection. Currently the “Industry Standard” and a 30 mJ/cm level of disinfection that VIQUA has chosen to rate their systems at. Current regulatory approach as 40 mJ/cm indicated by: NSF/ANSI, EPA, DVGW, ÖNORM...
-
Page 21: Specifications
SPECIFICATIONS: Not Performance tested or certified by NSF. Models SP320-HO SP410-HO SP600-HO SP740-HO SP950-HO 28 gpm 37 gpm 40 gpm 55 gpm 55 gpm 16 mJ/cm (106 lpm) (140 lpm) (151 lpm) (208 lpm) (208 lpm) (6.4 m /hr.) (8.4 m /hr.) (9.1 m /hr.) - Page 22 SPECIFICATIONS: Models SPV-200 SPV-410 SPV-600 SPV-740 SPV-950 Flow Rate 2.6 gpm (9.9 lpm) 5.9 gpm (22.6 lpm) 8.6 gpm (32.7 lpm) 11.2 gpm (42.4 lpm) 14.9 gpm (56.6 lpm) 40 mJ/cm (0.5 m /hr.) (1.3 m /hr.) (1.9 m /hr.) (2.5 m /hr.) (3.4 m...
- Page 23 Platinum SPV Series (with flow regulator): Platinum SP Series with 1/2“ NPT Ports Pressure Drop vs. Flow Rate* (without flow regulators) Pressure vs. Flow Rate Not Performance tested or certified by NSF. * Due to the nature of flow regulators, actual flow may be up to 12% less than nominal at any specific pressure.
-
Page 24: Warranty
One-Year Limited Warranty for Lamps, Sleeves and UV Sensors VIQUA warrants lamps, sleeves and UV sensors to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. - Page 25 SPV-200, SPV-410, SPV-600, SPV-740, and SPV-950 models. 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 623 8116 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
