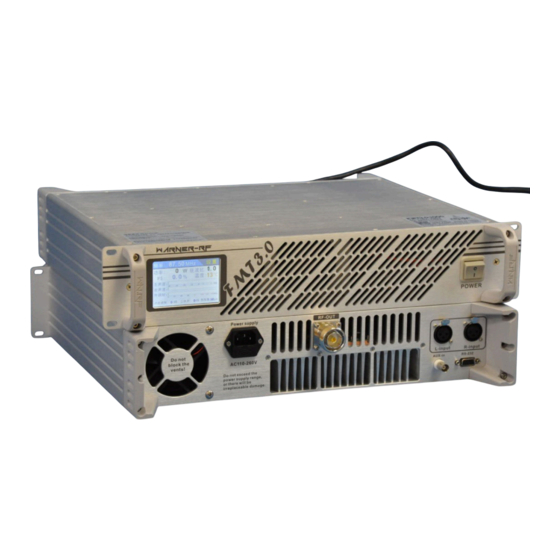

FMT3.0 English Manual
The preparation：
First of all, please set up the antenna and connect to the transmitter RF OUT port
with RF cable。If you need to testing equipment indicators, please pick up the attenuator
is greater than 1 kw，attenuation more than 50db。Connect the power cable then Access
to the XLR audio cable. There are "L" and "R" Channels。Turn on the "Power" button.
Equipment start after 5 seconds.
Advertisement
Related Manuals for Warner RF FMT3.0
Summary of Contents for Warner RF FMT3.0
- Page 1 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 FMT3.0 English Manual The preparation： First of all, please set up the antenna and connect to the transmitter RF OUT port with RF cable。If you need to testing equipment indicators, please pick up the attenuator is greater than 1 kw，attenuation more than 50db。Connect the power cable then Access to the XLR audio cable.
- Page 2 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401...
- Page 3 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 Transmitter operating interface: 1.Boot logo and system load 2.The main screen and enter the Settings Current Frequency /Current Power / Current SWR /Driving power tuning ratio Core temperature Around a track the level of UV indicator 0, 0 db is full load.Please input signal does not exceed 0 db so as not to affect the audio quality.
- Page 4 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 Pre-emphasis: 50us /75u s, 0 means” close preemphasis.” Press set button to enter the settings menu, six password into by default is 000008 Enter the password to enter the Settings menu Select frequency into frequency setting, manual or sweep Manually set into the manual tuning frequency.
-
Page 5: System Settings Menu
Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 Modulation mode menu: AF mode: audio mode is set. ternal modulation: AUX input closed mixed. Pre-emphasis: a u d i o p r e - e m p h a s i s o f c h o i c e Modulation: AUX modulation level tuning. - Page 6 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 S y s t e m a t p r e s e n t t i m e , t h e f i r s t t i m e u s e p l e a s e c o r r e c t l o c a l t i m e . D e v i c e t y p e s a n d v e r s i o n s , c o n t i n u o u s o p e r a t i o n t i m e a n d t o t a l r u n t i m e .
- Page 7 Contact:lanyue Email:lanyue@cantonmade.com Whatsapp:+86 13602420401 Password change Confirm change password input again. Transmitter operation exception information SWR high pls check your antenna. Antenna at least five meters from the ground, around 10 meters without sunscreen. Bending over 90 degrees will damage the feed tube 4.Transmitter troubleshooting tips If transmitter appear this page, please remember the error code, namely the number of internal error.The Numbers tell...
