User Guide
FIP-400B
Fiber Inspection Probe and
ConnectorMax2 Mobile

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIP-400B and is the answer not in the manual?

Questions and answers

Related Manuals for EXFO FIP-400B

Summary of Contents for EXFO FIP-400B

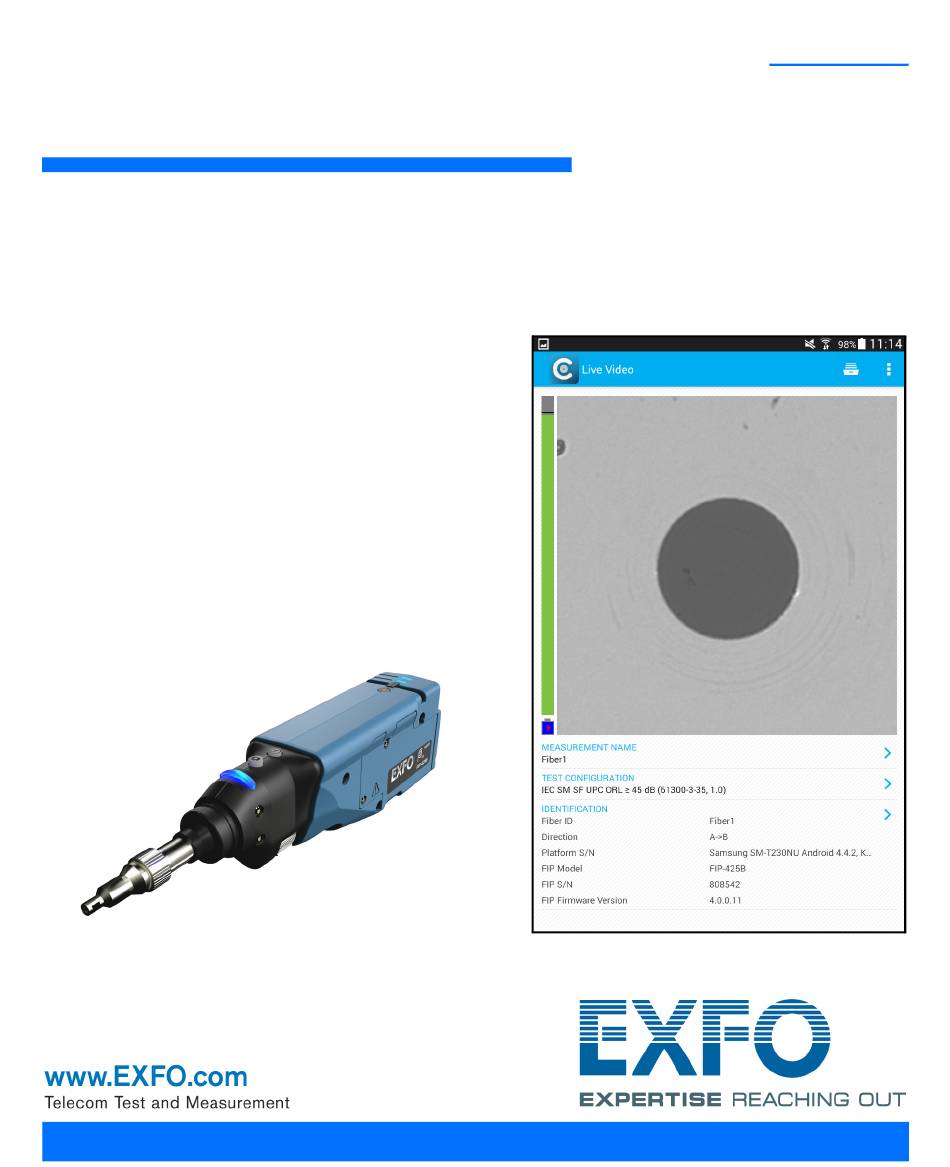

  • Page 1 User Guide FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile...
  • Page 2 Copyright © 2015 EXFO Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, be it electronically, mechanically, or by any other means such as photocopying, recording or otherwise, without the prior written permission of EXFO Inc.

  • Page 3: Table Of Contents

    Contents Certification Information ......................v 1 Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile ................1 Probe ............................1 Available Models ........................3 Probe Tips ..........................3 LED Indicators .........................4 ConnectorMax2 Mobile Software ..................6 Conventions ..........................7 2 Safety Information ..................9 Other Safety Symbols on Your Unit ..................10 Electrical Safety Information ....................11...
  • Page 4 Viewing Online Help ......................76 Transportation ........................77 7 Warranty ......................79 General Information ......................79 Liability ..........................80 Exclusions ..........................80 Certification ..........................80 Service and Repairs .......................81 EXFO Service Centers Worldwide ..................82 A Technical Specifications ................83 B Fiber Inspection Probe Tip Compatibility Chart ........85 Index .........................89 FIP-400B...

  • Page 5: Certification Information

    Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards. The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 6 This device does not contain any user-serviceable components. Any  unauthorized product changes or modifications will invalidate warranty and all applicable regulatory certifications and approvals. FIP-400B...
  • Page 7 Hereby, EXFO declares that the radio equipment type “Wide Band Data Transmission” is in compliance with Directive 2014/53/EU. An electronic version of the complete declaration of conformity for your product is available on our website at www.exfo.com.

  • Page 9: Introducing The Fip-400B Fiber Inspection Probe And Connectormax2 Mobile

    Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile The FIP-400B Fiber Inspection Probe is a portable video microscope used to inspect fiber ends. Unlike traditional microscopes, the FIP-400B facilitates the examination of patchcord connectors and also hard-to-reach connectors on the back of patch panels and bulkhead adapters.
  • Page 10 Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile Probe The capture control button allows you to capture an image, perform an  analysis, or return to the Live Video mode. The retaining nut holds tips securely in place, ensuring they are always ...

  • Page 11: Available Models

    Note: When the internal temperature of the FIP-435B is too low, the probe performs a warm-up that can last up to a minute. Probe Tips The FIP-400B comes with two interchangeable tips included in two different packages (UPC or APC). Additional models are also available. UPC package: ...

  • Page 12: Led Indicators

    Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile LED Indicators LED Indicators The LED located on the probe gives you information about the probe or the analysis results. Battery LED Wi-Fi LED Status LED Status LED Status Flashing blue...
  • Page 13 Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile LED Indicators Battery LED Status Flashing blue USB connected, battery charging Blue USB connected, battery fully charged Battery error (only visible when connected to a USB cable) Flashing yellow USB connected, battery not charging...

  • Page 14: Connectormax2 Mobile Software

    Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile ConnectorMax2 Mobile Software ConnectorMax2 Mobile Software ConnectorMax2 Mobile is the application used to view the fiber inspections. You can also use specific test configurations and analyze the fibers automatically upon capturing a picture.

  • Page 15: Conventions

    Introducing the FIP-400B Fiber Inspection Probe and ConnectorMax2 Mobile Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.

  • Page 17: Safety Information

    Safety Information ARNING Do not install or terminate fibers while a light source is active. Never look directly into a live fiber and ensure that your eyes are protected at all times. ARNING The use of controls, adjustments and procedures, namely for operation and maintenance, other than those specified herein may result in hazardous radiation exposure or impair the protection provided by this unit.

  • Page 18: Other Safety Symbols On Your Unit

    Direct current Alternating current The unit is equipped with an earth (ground) terminal. The unit is equipped with a protective conductor terminal. The unit is equipped with a frame or chassis terminal. On (Power) Off (Power) On/Off (Power) Fuse FIP-400B...

  • Page 19: Electrical Safety Information

    Use only the listed and certified AC adapter/charger provided by  EXFO with your unit. It provides reinforced insulation between primary and secondary, and is suitably rated for the country where the unit is sold.
  • Page 20 Measured in 0 °C to 31 °C (32 °F to 87.8 °F) range, decreasing linearly to 50 % at 40 °C (104 °F). Equipment must be normally protected against exposure to direct sunlight, precipitation and full wind pressure. Not exceeding ± 10 % of the nominal voltage. FIP-400B...

  • Page 21: Setting Up Your Fiber Inspection Probe And Connectormax2 Mobile

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile When you receive your wireless probe, and before you start working, you need to download the ConnectorMax2 Mobile application on your smart device. The application is available for smart devices supporting Android 4.2, mainly Samsung Galaxy Note 3 and 4, as well as Samsung Galaxy Tab 4 with an 8-inch screen.

  • Page 22: Connecting Or Disconnecting The Wireless Probe

    To install ConnectorMax2 Mobile: 1. Ensure you have access to an Internet connection. 2. Tap the Google Play Store icon. 3. In the Google Play Store (or Play Store) application, search for EXFO or ConnectorMax2 Mobile. 4. Follow the instructions on-screen.
  • Page 23 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Connecting or Disconnecting the Wireless Probe To connect the wireless probe: 1. Ensure the power saving mode is disabled on your smart device. 2. Turn on the probe by pressing the ON button. 3.
  • Page 24 Connecting or Disconnecting the Wireless Probe To disconnect the wireless probe: 1. From the main window, tap Note: Depending on the smart device you are using, the application settings can be found in the menu button instead. 2. Select Disconnect probe. FIP-400B...

  • Page 25: Changing The Fiber Inspection Probe Tip

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Changing the Fiber Inspection Probe Tip Changing the Fiber Inspection Probe Tip You can use various tips depending on the type of connector you are inspecting. For more information about tips you can use, see the Fiber Inspection Probe Tip Compatibility Chart on page 85, or contact your vendor for additional information.

  • Page 26: Setting Up Autonaming

    (test is not done yet). Otherwise, the parameters will not be displayed. In Capture and Archive modes, it is possible to change the name of the file without changing the settings. FIP-400B...
  • Page 27 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting up Autonaming To configure the automatic file naming: 1. From the main window, tap the at the end of the Identification row. Note: You can also tap the at the end of the Measurement Name row. Fiber Inspection Probe...
  • Page 28 4. Under Filename Edition, you can customize the information displayed next to Custom Filename. Note: You can edit information either with the virtual keyboard or with the microphone. A microphone is part of the virtual keyboard on your smart device. FIP-400B...
  • Page 29 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting up Autonaming 5. If you want to select the separator in the automatic numbering section, tap the line next to Separator. 5a. Navigate through the separators by scrolling through the words that are greyed.

  • Page 30: Setting Up Identification

    B), the Connector ID, or the Frame. To configure the identification: 1. From the main window, tap the at the end of the Identification row. Note: You can also tap the at the end of the Measurement Name row. FIP-400B...
  • Page 31 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting up Identification 2. If necessary, select the Identification tab. Fiber Inspection Probe...
  • Page 32 A microphone is part of the virtual keyboard on your smart device. 4. Tap to confirm your new settings and to return to the main window. The new settings will apply the next time you perform a capture. Note: Some identifiers are also displayed as read-only information. FIP-400B...

  • Page 33: Setting Up The Increment

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting up the Increment Setting up the Increment The file name is made of one or more static parts (alphanumeric) and one or more variable parts (numeric) that will be incremented or decremented, according to your selection, as follows: If you choose incrementation...
  • Page 34 The application fills the empty spaces with zeros before the increment or decrement to ensure the appropriate format is displayed. For example, if you select two "#" and the value is to be incremented from 1 to 10, it becomes 01, 02, 03, ... 09, 10. FIP-400B...
  • Page 35 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting up the Increment To configure the incrementation: 1. From the main window, tap the at the end of the Identification row. Note: You can also tap the at the end of the Measurement Name row. Note: Setting up the increment is only possible in Live Video mode.
  • Page 36 Note: To decrement values, the start number must be higher than the stop number. 5. Tap to confirm your new settings and to return to the main window. The new settings will apply the next time you perform a capture. FIP-400B...

  • Page 37: Setting Up Auto Capture

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting Up Auto Capture Setting Up Auto Capture Note: The auto capture is a feature available for FIP-435B probes only. As soon as the application detects that you are working in Live Video mode, the feature is enabled in the Application Settings, and if the focus level is acceptable, a capture is made automatically.
  • Page 38 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Setting Up Auto Capture 2. Select Application Settings. 3. Under Probe, active the ON button next to Auto capture. 4. Tap to return to the main window. FIP-400B...

  • Page 39: Selecting Test Configurations

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Selecting Test Configurations Selecting Test Configurations If you are testing single fibers, you can select specific test configurations according to the type of fiber you are analyzing, the connector type or the type of anomaly you are looking for.
  • Page 40 On or Off button. Note: If you want to select more than one test configurations at a time, press and hold the desired test configurations. Note: You cannot select the current test configuration. 3. Tap to return to the main window. FIP-400B...
  • Page 41 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Selecting Test Configurations To show or hide test configurations: 1. From the main window, tap the at the end of the Test Configuration row. Fiber Inspection Probe...
  • Page 42 2. In the Test Configuration window, tap the test configuration you want to hide. Note: If you want to select more than one test configurations at a time, press and hold the desired test configurations. Note: You cannot select the current test configuration. FIP-400B...
  • Page 43 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Selecting Test Configurations 3. Tap the icon to hide the test configurations. 4. Tap the icon to show all test configurations. 5. Tap to return to the main window. Fiber Inspection Probe...

  • Page 44: Modifying The File Format

    By default, you will be prompted to select the file format with which you want to work. To modify the file format: 1. From the main window, tap Note: Depending on the smart device you are using, the application settings can be found in the menu button instead. 2. Select Application Settings. FIP-400B...
  • Page 45 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Modifying the File Format 3. Under Sharing, tap Preferred file format. 4. Navigate through the preferred file format by scrolling through the words that are greyed. 5. Tap OK to confirm your choice. 6.

  • Page 46: Selecting The Sharing Application

    You can configure the unit to always start your favorite application directly instead. To select the sharing application: 1. From the main window, tap Note: Depending on the smart device you are using, the application settings can be found in the menu button instead. FIP-400B...
  • Page 47 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Selecting the Sharing Application 2. Select Application Settings. 3. Under Sharing, tap Preferred application. 4. Navigate through the preferred application by scrolling through the words that are greyed. 5. Tap OK to confirm your choice. 6.

  • Page 48: Sharing Data When No Connection Is Available

    Note: You need to disconnect the probe before trying to share data. Otherwise, the data will be buffered anyway. If you prefer not to be prompted each time no connection is available, you can configure the application to always send the files to the buffer directly instead. FIP-400B...
  • Page 49 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Sharing Data When No Connection Is Available To share data when no connection is available: 1. From the main window, tap Note: Depending on the smart device you are using, the application settings can be found in the menu button instead.
  • Page 50 3. Under Sharing, tap Preferred behavior when no connection is available. 4. Navigate through the preferred behavior by scrolling through the words that are greyed. 5. Tap OK to confirm your choice. 6. Tap to return to the main window. FIP-400B...

  • Page 51: Restoring To Default Settings

    Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Restoring to Default Settings Restoring to Default Settings At any time, you can restore to default settings in your smart device. The Restore default settings button restores all values that were changed in the Application Settings.
  • Page 52 Setting up Your Fiber Inspection Probe and ConnectorMax2 Mobile Restoring to Default Settings 3. Tap the Restore Default Settings button. 4. Tap to return to the main window. FIP-400B...

  • Page 53: Inspecting Fiber Ends

    Always use your FIP-400B Fiber Inspection Probe. Inspecting Fiber Ends When you connect the FIP-400B Fiber Inspection Probe to your smart device, you can view and inspect fiber ends right away. This direct viewing mode is known as the Live Video mode.
  • Page 54 A vertical black bar displays the peak focus level. Note: The peak focus level is shown only when the auto focus sequence is complete. For more information on analysis, see Analyzing Captures on page 56. FIP-400B...
  • Page 55 Inspecting Fiber Ends Inspecting Fiber Ends To inspect fiber ends (single fiber) in Live Video mode: 1. Install a probe tip (see Changing the Fiber Inspection Probe Tip on page 17). 2. Insert the fiber into the probe tip. 3. Start ConnectorMax2 Mobile if it is not already started. 4.

  • Page 56: Saving Files

    When it is not possible to save a file, the application displays a message. All the files (saved manually or automatically) are sent to the following folder: Storage/Emulated/0/Documents/EXFO/cmax2. For smart devices supporting Android 4.4 (kit kat) and above, the files are sent to the following folder: /Android/data/com.exfo.cmax2.mobile.android/files/.
  • Page 57 Inspecting Fiber Ends Saving Files To save a file: 1. In Live Video mode, press and hold the image on screen. 2. In Capture mode, tap Fiber Inspection Probe...
  • Page 58 Inspecting Fiber Ends Saving Files To save file automatically: 1. From the main window, tap Note: Depending on the smart device you are using, the application settings can be found in the menu button instead. 2. Select Application Settings. FIP-400B...
  • Page 59 Inspecting Fiber Ends Saving Files 3. Under Saving, select the type of auto save you want to use by activating the ON button. 4. Tap to return to the main window. Fiber Inspection Probe...

  • Page 60: Managing Files

    To share files, see Transferring Results With Third-Party Applications on page 60. The .cmax2 files, when saved with the ConnectorMax 2 smart device, are compatible with any EXFO applications. To open a file: 1. From the main window, tap FIP-400B...
  • Page 61 Inspecting Fiber Ends Managing Files 2. In the Archive window, select a file. 3. Tap the selected file to open it. Fiber Inspection Probe...
  • Page 62 Inspecting Fiber Ends Managing Files To delete a file: 1. From the main window, tap FIP-400B...
  • Page 63 Inspecting Fiber Ends Managing Files 2. In the Archive window, tap 3. By default, all files are highlighted but you can unselect the files you want to keep by pressing and holding the screen. MPORTANT All highlighted files will be deleted. Ensure to unselect the files you want to keep.

  • Page 64: Analyzing Captures

    The Results are displayed when a capture is made. When you are ready to inspect another fiber, you have to return to the Live Video mode first. The results are available as an image or in a detailed table. FIP-400B...
  • Page 65 Inspecting Fiber Ends Analyzing Captures The Image shows the snapshot of the fiber when you captured it. You  can see all the anomalies that have been detected. The overlay shows the status of the analysis, the status per zone, the analysis zones, any anomaly (defects, scratches) found on the fiber endface, and the global status in the upper right part of the main window.
  • Page 66 By default, the overlay is shown after an analysis, but you can hide it by tapping the image on screen. The Results show detailed information for scratches and defects  detected in each test zone and the corresponding test status. FIP-400B...
  • Page 67 Inspecting Fiber Ends Analyzing Captures To view the results: 1. In Live Video mode, press and hold your finger on the screen. 2. In Capture mode, tap the at the end of the Inspection Results row. Tap the pass or fail icon located on the upper right part of the main window.

  • Page 68: Transferring Results With Third-Party Applications

    You need to disconnect the probe first if you want to share data with the smart device. Otherwise, the application buffers the FIP measurements. MPORTANT If you want to transfer results with the DropBox third-party application, you need to open a DropBox account first. FIP-400B...
  • Page 69 Inspecting Fiber Ends Transferring Results With Third-Party Applications To transfer results with third-party applications: 1. Ensure the Wi-Fi is activated on your smart device. 2. Ensure you are connected to a Wi-Fi network. 3. From the main window, tap Fiber Inspection Probe...
  • Page 70 Inspecting Fiber Ends Transferring Results With Third-Party Applications 4. In the Archive window, select the measurement files you want to share by pressing and holding your finger on the screen. FIP-400B...
  • Page 71 Inspecting Fiber Ends Transferring Results With Third-Party Applications 5. Tap 6. Select the type of file (.cmax2 or .png) you want to share. 7. Select the third-party application you want to work with (Google Drive or Drop Box for example). 8.

  • Page 73: Maintenance

    Recycling and Disposal (Applies to European Union Only) For complete recycling/disposal information as per European Directive WEEE 2012/19/UE, visit the EXFO Web site at www.exfo.com/recycle. Fiber Inspection Probe...

  • Page 74: Recharging The Battery

    AUTION Only charge the battery with the USB cable and adapter/charger provided by EXFO with your unit. You can purchase a new battery from EXFO. MPORTANT The battery is not charged at the factory. You must fully charge ...
  • Page 75 Maintenance Recharging the Battery The micro USB adapter connector recharges the battery of the probe when it is low. You can recharge the battery with the provided USB cable and the adapter/charger that you connect to a power outlet. You can also use the provided USB cable alone that you connect to a USB port of a computer.

  • Page 76: Replacing The Battery

    Your unit uses a three-cell battery that has been especially  designed for EXFO. For this reason, you can only replace it with a battery of the same type and model. The use of other batteries may damage your unit and compromise your safety.
  • Page 77 Maintenance Replacing the Battery To replace the battery: 1. Turn off the probe. 2. Unplug any power cable. 3. Using a screwdriver, remove the two screws that are located on the side of the probe. Screws Battery compartment door 4. Remove the battery compartment door. AUTION Gently pull on the battery to avoid damaging the wires.
  • Page 78 5. Remove the battery. Wires Battery 6. Replace the battery, respecting the polarity (black, yellow, and red wires). 7. Close the battery compartment door. 8. Using a screwdriver, put the screws that you have removed at step 3 back in place. FIP-400B...

  • Page 79: Troubleshooting

    Ensure the probe is on.  The FIP internal Let the FIP cool down. temperature is too high Violation of EXFO Contact EXFO for technical support. embedded software copyright The auto centering does Clean the connector.  not function properly Adjust the image focus.
  • Page 80 There was an analysis error. Repeat the inspection process. for 2 seconds in Capture mode and no analysis results are available The user interface Change font size in the smart device settings to facilitate displayed in the reading comprehension. application is truncated. FIP-400B...
  • Page 81 Troubleshooting Solving Common Problems Problem Solution The list of available FIPs Ensure the Wi-Fi is on.  is empty. Ensure the probe is on.  The FIP measurement is The corruption seems to be caused by the smart device  corrupted when it is drivers.

  • Page 82: Contacting The Technical Support Group

    Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.

  • Page 83: Viewing Information About Connectormax2 Mobile

    Troubleshooting Viewing Information About ConnectorMax2 Mobile Viewing Information About ConnectorMax2 Mobile You can view information about ConnectorMax2 Mobile such as the version number and different policies on your smart device. To view ConnectorMax2 Mobile information: 1. From the main window, tap Note: Depending on the smart device you are using, the about button can be found in the menu button instead.

  • Page 84: Viewing Online Help

    Note: Depending on the smart device you are using, the online help can be found in the menu button instead. 2. Select Help. 3. Under Guides, select the document you want to view. 4. Tap to return to the main window. FIP-400B...

  • Page 85: Transportation

    Troubleshooting Transportation Transportation Maintain a temperature range within specifications when transporting the unit. Transportation damage can occur from improper handling. The following steps are recommended to minimize the possibility of damage: Pack the unit in its original packing material when shipping. ...

  • Page 87: Warranty

    Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use.

  • Page 88: Liability

    Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part.

  • Page 89: Service And Repairs

    5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.

  • Page 90: Exfo Service Centers Worldwide

    Crossing), No. 467, support.asia@exfo.com National Highway 107, Xixiang, Bao An District, Shenzhen, China, 518126 To view EXFO's network of partner-operated Certified Service Centers nearest you, please consult EXFO's corporate website for the complete list of service partners: http://www.exfo.com/support/services/instrument-services/ exfo-service-centers. FIP-400B...

  • Page 91: A Technical Specifications

    The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. PRELIMINARY SPECIFICATIONS Size (H x W x D)
  • Page 92 Video inspection probe (FIP-425B/435B) Bulkhead and patch cord tips GP-2175: Protective cap and cord assembly FIPT-BOX: Compartmentalized plastic case for tips GP-10-094: Soft pouch for FIP-400 and FIP-400B GP-2225: USB to Micro USB cable GP-2226: Rechargeable battery (qty:1) GP-2227: USB AC Adapter...

  • Page 93: B Fiber Inspection Probe Tip Compatibility Chart

    Fiber Inspection Probe Tip Compatibility Chart With some tips that include lenses, and before performing an automatic focus, you must adjust the focus manually for the first inspection. Note: The tips for which the probe requires a manual focus before the first inspection are listed in the table below.
  • Page 94 149 mm, Extended FIPT-400-MU-L- MU tip for PC bulkhead adapter ODC 4 Pin Plug FIPT-400-ODC- (female) Guide tip 4PIN-P ODC Socket (male) FIPT-400-ODC-S ODC Universal FIPT-400-ODC-U Guide tip ODC 2 Pin Plug FIPT-400-ODC- (female) Guide tip 2PIN-P D4 bulkhead FIPT-400-D4 adapter FIP-400B...
  • Page 95 Fiber Inspection Probe Tip Compatibility Chart Analysis Connector Inspection (FIP-425B Auto focus Auto Tip Description Tip Code (all models) (FIP-435B) detection FIP-435B) (FIP-435B) FIPT-400-U20M2 is FIPT-400-U20M2 for male ferule connector FIPT-400-Lemo for FIPT-400-Lemo bulkhead adapter OptiTap for APC FIPT-400-OTAP- bulkhead adapter LC for PC bulkhead FIPT-400-LC LC for APC FIPT-400-LC-APC...
  • Page 96 – APC-L extended A manual focus is required for the first inspection. Only with a 125 μm ferrule. Contact your vendor for additional information regarding the most recent Fiber Inspection Probe tips that are not listed above. FIP-400B...

  • Page 97: Index

    Index Index connecting the probe ......14, 15 ConnectorMax2 Mobile 3G, 4G, LTE communications ...... 15 application..........13 3G, 4G, Wi-Fi external connection ..40, 60 installation ..........14 introduction..........6 conventions, safety........7 customer service.......... 81 about window..........75 after-sales service ........
  • Page 98 ....2 label, identification ........74 magnification control button....1 LED..............4 micro USB adapter connector .... 2, 67 Li-ion polymer battery ......66, 68 protective cap .......... 2 live mode ............ 45 retaining nut..........2 FIP-400B...
  • Page 99 .......... 29 identification ......... 22 settings, factory .......... 43 viewing fiber ends ........45 sharing virtual keyboard........20, 24 application selecting......38 data ..........40, 60 files............60 shipping to EXFO ........81 showing test configurations......33 Fiber Inspection Probe...
  • Page 100 ........3, 45 warranty certification ........... 80 exclusions ..........80 general ..........79 liability........... 80 null and void.......... 79 watermark........... 45 Wi-Fi frequency band data ......vii network ..........13 wireless probe connection........14, 15 disconnection ........14, 16 FIP-400B...
  • Page 101 CHINESE REGULATION ON RESTRICTION OF HAZARDOUS SUBSTANCES NAMES AND CONTENTS OF THE TOXIC OR HAZARDOUS SUBSTANCES OR ELEMENTS CONTAINED IN THIS EXFO PRODUCT EXFO Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006...
  • Page 102 MARKING REQUIREMENTS Product Environmental protection use period (years) Logo This E product EXFO Battery If applicable.
  • Page 103 Tel.: 1 978 367-5600 · Fax: 1 978 367-5700 EXFO FINLAND Elektroniikkatie 2 FI-90590 Oulu, FINLAND Tel.: +358 (0) 403 010 300 · Fax: +358 (0) 8 564 5203 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2015 EXFO Inc. All rights reserved. Printed in Canada (2015-03) ...
