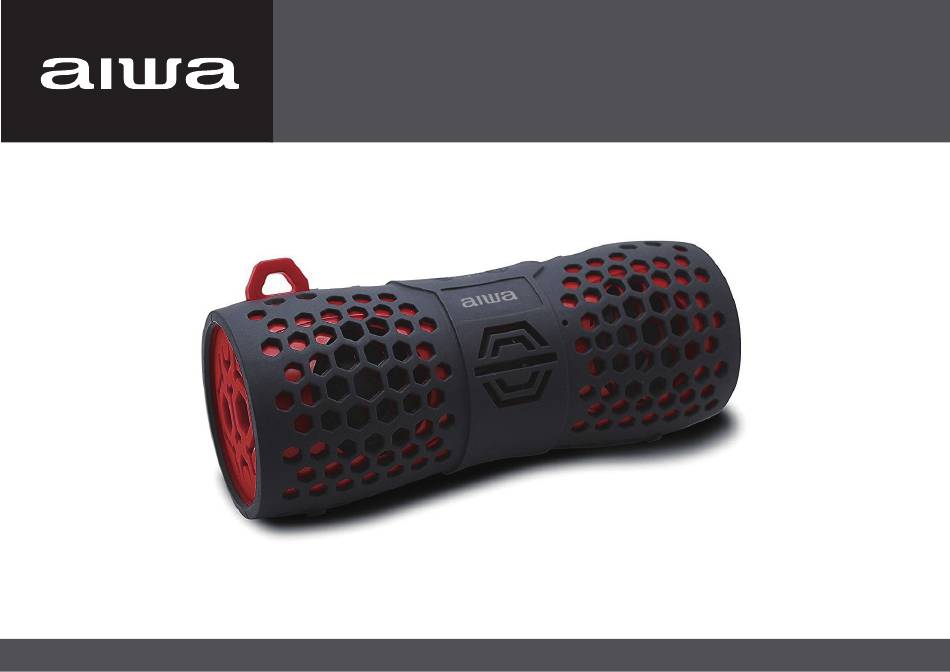

- Page 1 BLUETOOTH ADVENTURE SPEAKER ABT-1244BR / ABT-1244BBL Instruction Manual...
-
Page 3: Important Safety Instructions
Important Safety Instructions Warning: To avoid electrical shock, do not dismantle. Refer all servicing to qualified service personnel. 1. Please read all of the instructions carefully and retain for future reference. 2. When using electrical appliances, basic safety precautions should always be followed. 3. - Page 4 Description: 9 10...
- Page 5 1.ON/OFF button 6.Red LED(Charging) 2.Play/Pause/Phone 7.Green LED(AUX) 3.MIC 8.Blue LED(Bluetooth) 4.Previous/Volume – 9.Micro USB Charging Port 5.Next/Volume + 10.AUX in Port Included: 1.Speaker 2.Micro USB Charging Cable 3.3.5 mm Audio Cable 4.User Manual 5.Warranty Card...
-
Page 6: Specifications
Specifications Bluetooth Version : 5.0 Supported Profiles: A2DP, HFP, AVRCP Bluetooth Range: 33ft (10m) Playback time: 6 hours at 80% volume Dimensions: 180 mm x 70 mm x 68 mm Battery: 1000mAh rechargeable lithium battery Charging: DC 5V 500mA Operation Power On Press and Hold "ON/OFF"... -
Page 7: Bluetooth Mode
- Place your Bluetooth-enabled device within 10 metres of the speaker. Navigate to the Bluetooth setting menu on your device and search for new devices. The Bluetooth name for this speaker is 'Aiwa ABT-1244'. - After the unit has paired and connected, it will reconnect automatically when the unit is powered on and the device is in range. -
Page 8: Begin Streaming Music
Begin Streaming Music Press “ ” to start playing music. Press and Hold“ ” 2 seconds to play the next track. Press and Hold“ ” 2 seconds to play previous track. Press either “ ” or “ ” for volume control. Note: You will hear an audio alert when the maximum / minimum volume level has been reached. - Page 9 Aux-In Mode Plug in the supplied 3.5 mm cable into the unit. Connect the other end to the AUX out port on your device. The Green LED will only illuminate when in “Aux” mode. Please note music and volume can be controlled on your device. Charging Attach the USB cable to the unit, and plug into any USB charger.
-
Page 10: Led Status
LED Status Blue LED flashing & Blue LED solid Bluetooth Mode Green LED on solid Aux Mode Red LED Charging Red LED off Fully charged... -
Page 11: Troubleshooting
Troubleshooting Speaker needs to be connected/ Unit doesn’t connect to device re-paired to device A tone is heard every few seconds Speaker needs to be charged Speaker needs to be charged Unit will not power on Speaker needs to be in Bluetooth Unit doesn’t control track(s)/volume mode for full control The device volume needs to...
