Aiwa AI6006-BLK User Manual

Aiwa AI6006-BLK User Manual

Exos home speaker

Advertisement

Exos Home Speaker
2 x 15W RMS
with high/mid/low dimmer control
-
User Manual
Item: AI6006
-BLK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AI6006-BLK and is the answer not in the manual?

Questions and answers

James F. Burkart
May 19, 2025

What is the short black cable on the back of the unit with a flat tip. As you face the front of the unit it's on right.

1 comments:
Mr. Anderson
May 23, 2025

The short black cable with a flat tip on the back of the Aiwa AI6006-BLK unit is the FM antenna. Its function is to receive FM radio signals for the speaker's radio feature.

This answer is automatically generated

Carol Williams
March 25, 2025

is there a feature that shows the title of the piece playing

De
March 7, 2025

The radio stations are not setting when hitting the memory button.

Summary of Contents for Aiwa AI6006-BLK

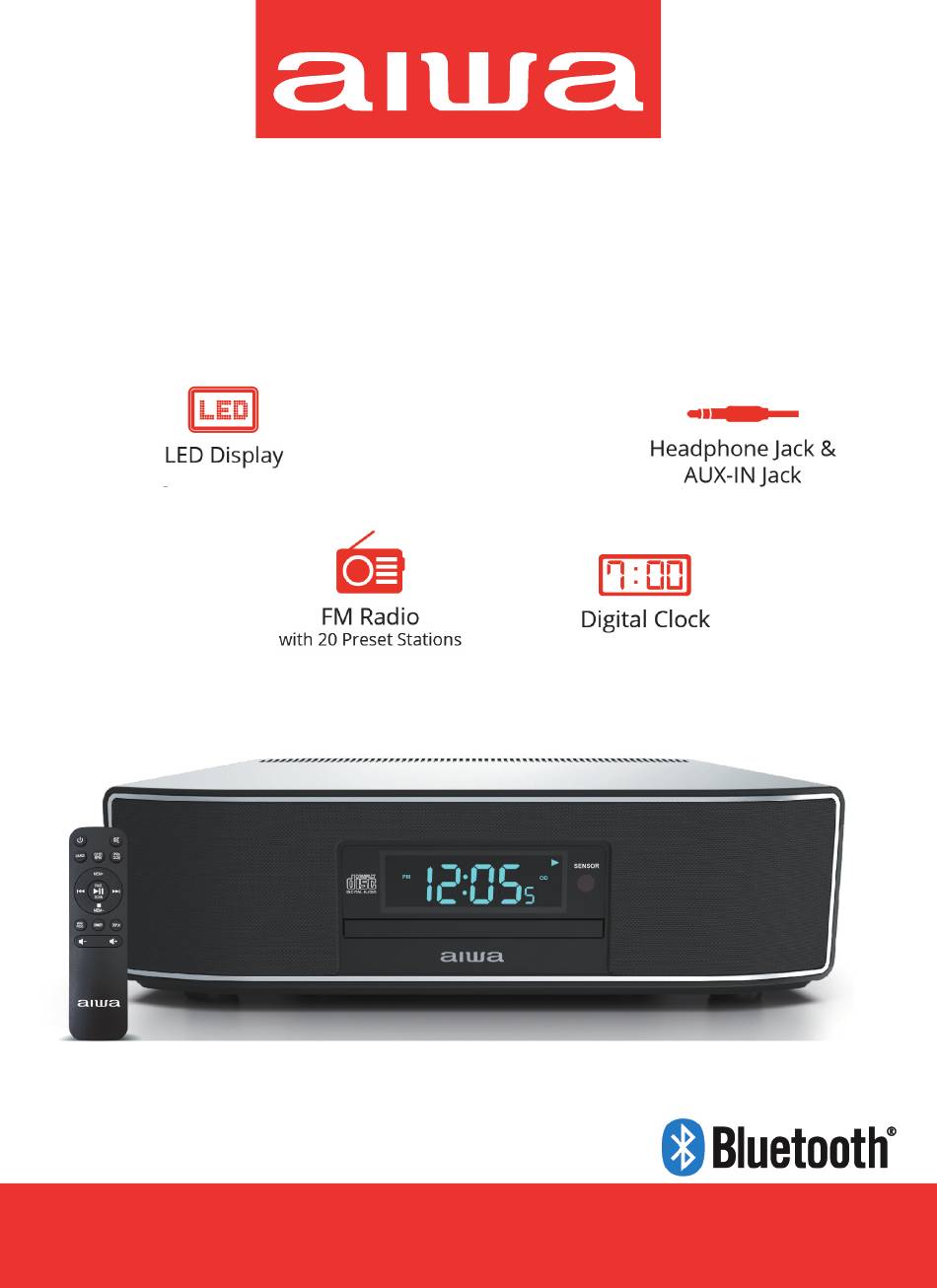

  • Page 1 Exos Home Speaker 2 x 15W RMS with high/mid/low dimmer control User Manual Item: AI6006 -BLK...
  • Page 2: Safety Precautions

    Safety Precautions 1. READ AND FOLLOW ALL INSTRUCTIONS. HEED ALL WARNINGS . 2. Do not use device near water. 3. Clean only with dry cloth. 4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
  • Page 3: What's Included

    Safety Precautions CONT. FOLLOW THE ADVICE BELOW FOR SAFE OPERATIONS ON PROTECTION AGAINST LASER ENERGY EXPOSURE: •As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the casing. •Stop operation immediately if any liquid or solid object falls into the cabinet. •Do not touch the lens or poke at it.
  • Page 4: Your Remote

    YOUR REMOTE Mute Standby/On Clock Set/Repeat Open/Close Source Mem+ Pair/Play/Pause/Scan Previous Track Next Track Stop/Mem- Dimmer Mem/Program Display Volume - Volume + Inserting Batteries 1. Your remote control takes 2 AAA batteries (included). 2. Open the battery compartment on the rear of your remote. 3.
  • Page 5: Your Speaker

    YOUR Speaker Front View 12 05 Rear View 4 5 6 7 1. LED Display Screen 2. IR Sensor 3. CD Compartment Door 4. FM Antenna 5. OPTICAL IN Jack 6. Headphone Jack 7. AUX IN Jack 8. DC INPUT Jack 9.
  • Page 6 POWERING AC POWER OPERATION 1. Insert the DC plug adapter into the DC INPUT Jack at the back of your speaker. 2. Plug the AC adapter plug into a standard 120V AC outlet in your home. 3. Press the Power Switch to the ON position to power up the speaker. The speaker will turn on standby mode and the display screen will flash 12:00 to indicate the clock is ready to be set up.
  • Page 7: Setting The Time

    Setting the TIME While the speaker is on standby mode, you can set the time on your display screen. To set the hour: 1. Press and hold the Clock Set button on the remote until the hour digits start to blink on the display screen.
  • Page 8: Using Your Remote

    USING YOUR REMOTE Press the Standby/On button to put device into standby mode. Press the Mute button to mute sound/music. Press the Source button to switch between modes CD, FM, AUX IN, Bluetooth and OPTICAL IN. Press and hold the Clock Set/Repeat button on standby mode to set the time.
  • Page 9 CD Function IMPORTANT NOTE The CD player is designed to work with all commercial discs. It may not play some recordable CDs or computer CDs. USING THE SPEAKER TO PLAY CDs 1. Press the Standby/On button to power on the speaker. 2.
  • Page 10 CD Function CONT. SETTING UP PROGRAMS This function allows tracks to be played in a programmed sequence. TO SET UP A PROGRAM: 1. In CD stop mode, press the Program button. The program indicator (”PROG”) will illuminate and Program Number “P01” will show on the display screen.
  • Page 11: Bluetooth Function

    2. To pair a new device, go to the Bluetooth settings menu of your Bluetooth enabled device, and make sure Bluetooth is turned on. Go to the Bluetooth menu and select “Aiwa Exos Home” from the list of available devices (If required, enter the pass code “0000” to connect).
  • Page 12: Aux In Function

    AUX IN FUNCTION You can play other music sources (iPods, MP3 players or other digital audio players) through the speakers of the speaker by connecting the AUX IN Jack to your external player’s audio out jack or headphone jack. 1. Plug one end of a 3.5mm audio cable (not included) into the AUX IN Jack located at the back of the speaker and the other end of the cable to the headphone jack of your digital audio player.
  • Page 13 TV/oPTICAL aUDIO fUNCTION 1. Plug one end of an optical cable (not included) into the OPTICAL IN Jack located at the back of the speaker and the other end of the cable to the optical out jack of your TV or digital audio player. 2.
  • Page 14: Fm Radio Function

    FM RADIO FUNCTION 1. Press the Standby/On button to put your speaker in standby mode. 2. Press the Source button repeatedly until FM mode is accessed. The “FM” indicator on the display screen will light up. Using Your Remote Control On FM Radio Mode Press the button or the button to search through available FM radio...
  • Page 15: Connect Your Headphones

    Connect your headphones Insert the plug of your headphones (not included) into the Headphone Jack located on the rear panel. After successful connection, the speakers will disconnect and the sound will channel through the headphones. Read this Important Information before Using Your Headphones --Avoid extended play at very high volume as it may impair your hearing.
  • Page 16: Troubleshooting Guide

    Troubleshooting guide Problem Solution Possible Cause The device does not Reconnect to the AC outlet. The device is disconnected respond (no power) from the AC outlet. The AC outlet has no power. Try another AC outlet. Device is ON but there is Volume set too low.
  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE 1. Do not subject the unit to excessive force, shock, dust or extreme temperatures. 2. To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. 3. Do not tamper with the internal components of the unit. 4.
  • Page 18: Fcc Statement

    FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19: Warranty

    To Obtain Warranty Service and Troubleshooting Information: Call (877) 397-8200 or visit our website at www.aiwa.co. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures.
  • Page 20 ©2022 Sakar International 195 Carter Drive Edison, NJ 08817 www.sakar.com Support: (877)-397-8200...
