holes in the heat shield and the fryer cabinet
must line up. See Figure 1-2.
splash
shield
heat
shield

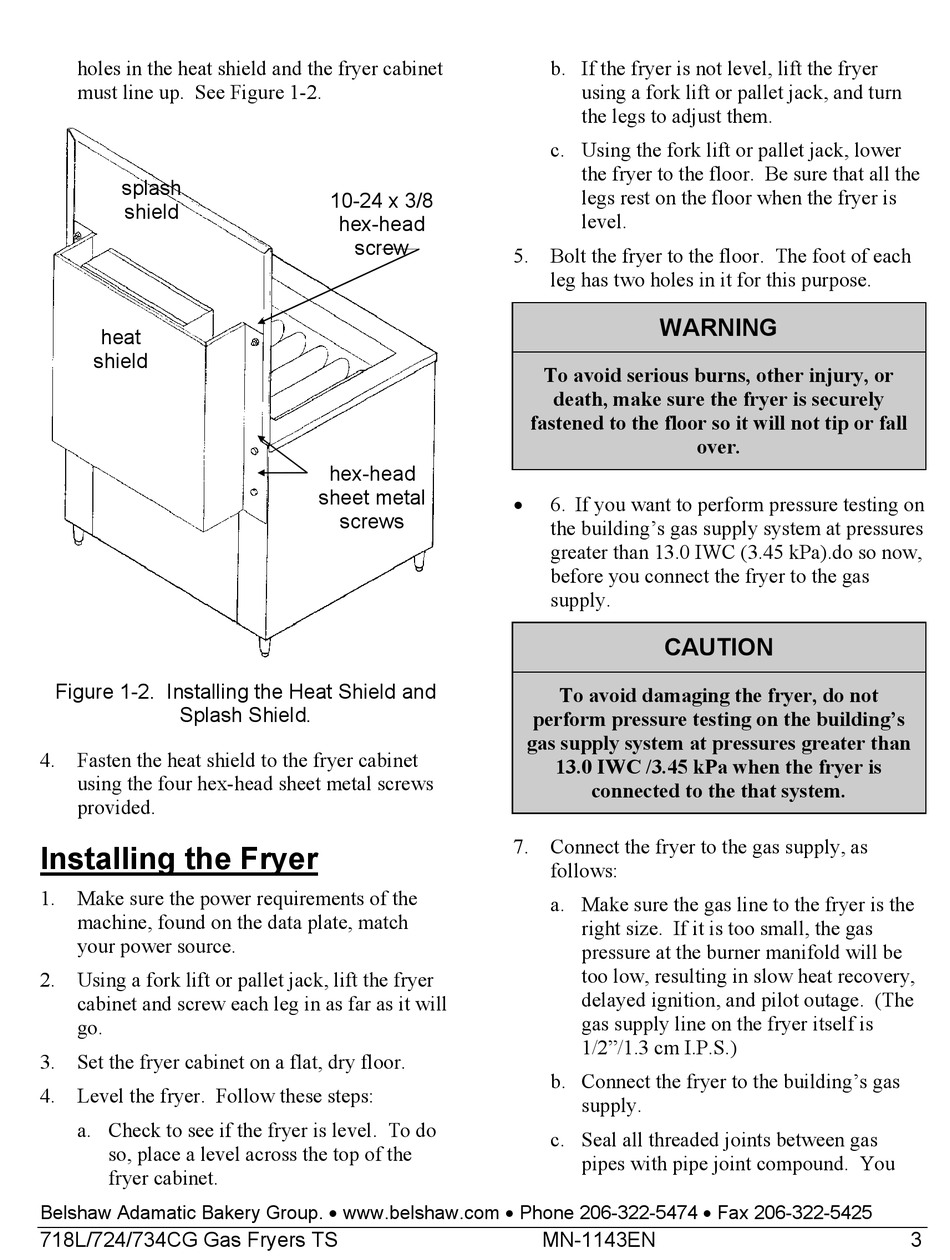

Figure 1-2. Installing the Heat Shield and
Splash Shield.
4. Fasten the heat shield to the fryer cabinet
using the four hex-head sheet metal screws
provided.

Installing the Fryer

1. Make sure the power requirements of the
machine, found on the data plate, match
your power source.
2. Using a fork lift or pallet jack, lift the fryer
cabinet and screw each leg in as far as it will
go.
3. Set the fryer cabinet on a flat, dry floor.
4. Level the fryer. Follow these steps:
a. Check to see if the fryer is level. To do
so, place a level across the top of the
fryer cabinet.
Belshaw Adamatic Bakery Group.  www.belshaw.com  Phone 206-322-5474  Fax 206-322-5425
718L/724/734CG Gas Fryers TS
10-24 x 3/8
hex-head
screw
hex-head
sheet metal
screws
b. If the fryer is not level, lift the fryer
using a fork lift or pallet jack, and turn
the legs to adjust them.
c. Using the fork lift or pallet jack, lower
the fryer to the floor. Be sure that all the
legs rest on the floor when the fryer is
level.
5. Bolt the fryer to the floor. The foot of each
leg has two holes in it for this purpose.
WARNING
To avoid serious burns, other injury, or
death, make sure the fryer is securely
fastened to the floor so it will not tip or fall

6. If you want to perform pressure testing on
the building's gas supply system at pressures
greater than 13.0 IWC (3.45 kPa).do so now,
before you connect the fryer to the gas
supply.
CAUTION
To avoid damaging the fryer, do not
perform pressure testing on the building's
gas supply system at pressures greater than
13.0 IWC /3.45 kPa when the fryer is
connected to the that system.
7. Connect the fryer to the gas supply, as
follows:
a. Make sure the gas line to the fryer is the
right size. If it is too small, the gas
pressure at the burner manifold will be
too low, resulting in slow heat recovery,
delayed ignition, and pilot outage. (The
gas supply line on the fryer itself is
1/2"/1.3 cm I.P.S.)
b. Connect the fryer to the building's gas
supply.
c. Seal all threaded joints between gas
pipes with pipe joint compound. You
MN-1143EN
over.
