LEGRAND Finelite E1 Installation Instructions

Magnetic Washer

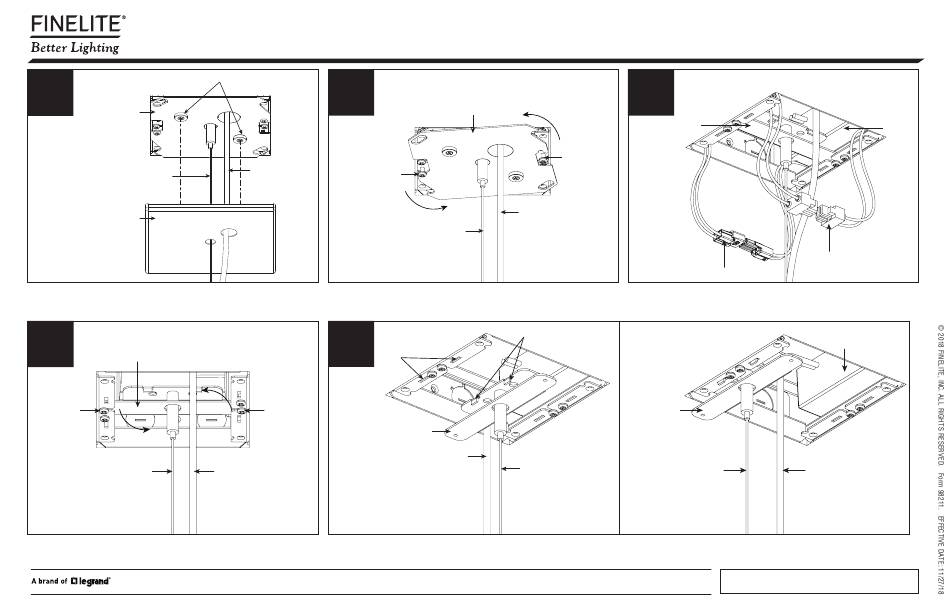

Step 1
Primary Cover Plate
Aircraft Cable
Decorative Cover
Remove decorative cover.
Step 4
Center Bracket
#6 - 32 Screw
Aircraft Cable
Remove center bracket by removing 2X #6-32 screws and rotating bracket.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • 510 / 441-1100 • Fax: 510 / 441-1510 • www.finelite.com
E1 - Indirect (Linear) Driver Replacement Installation Instructions
Step 2
Power Cable
#6 - 32 Screw
Remove primary cover plate by loosening 2x #6-32 screws and rotating cover plate.
Step 5
Slots
#6 - 32 Screw
Center Bracket
Power Cable
Engage hooks on center bracket with slots on the side of the box. Leave power cable attached to center bracket.
Primary Cover Plate
#6 - 32 Screw
Power Cable
Aircraft Cable
Hooks
Power Cable
Aircraft Cable
Step 3
Center Bracket
Line Voltage
(Building Power)
Locate and unplug all driver disconnects.
Center Bracket
Aircraft Cable
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Patent Pending
Driver
Low Voltage
(Fixture)
P
Driver
Power Cable
