See Genelec Accessories Catalogue on www.genelec.com for a complete list of
mounting hardware options. The accessories can come with instructions on the
proper methods of installation.
THREADS FOR
WALL MOUNT
BRACKET
ETHERNET
PORT

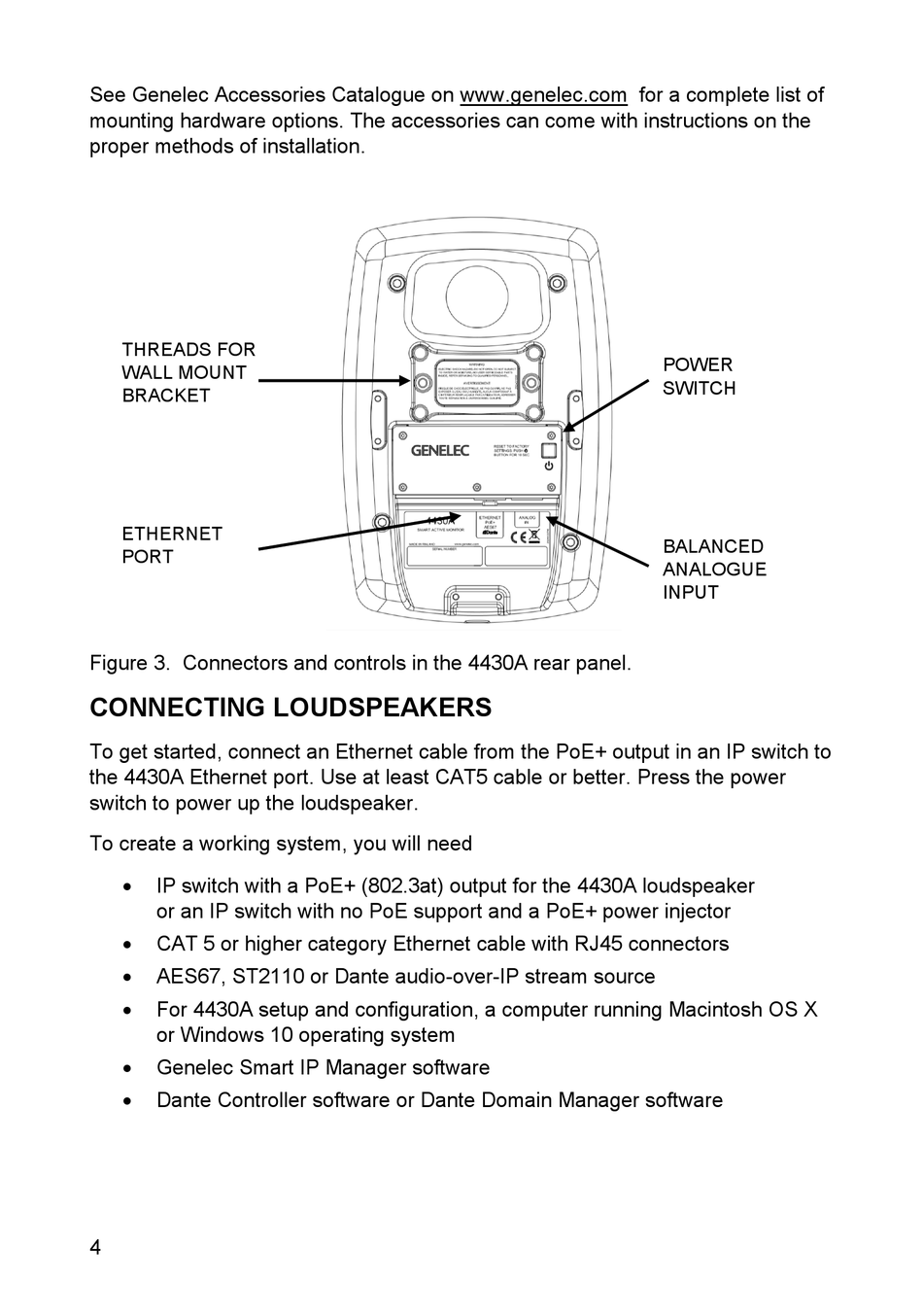

Figure 3. Connectors and controls in the 4430A rear panel.

CONNECTING LOUDSPEAKERS

To get started, connect an Ethernet cable from the PoE+ output in an IP switch to
the 4430A Ethernet port. Use at least CAT5 cable or better. Press the power
switch to power up the loudspeaker.
To create a working system, you will need
IP switch with a PoE+ (802.3at) output for the 4430A loudspeaker

or an IP switch with no PoE support and a PoE+ power injector
CAT 5 or higher category Ethernet cable with RJ45 connectors

AES67, ST2110 or Dante audio-over-IP stream source

For 4430A setup and configuration, a computer running Macintosh OS X

or Windows 10 operating system
Genelec Smart IP Manager software

Dante Controller software or Dante Domain Manager software

4
POWER
SWITCH
BALANCED
ANALOGUE
INPUT
