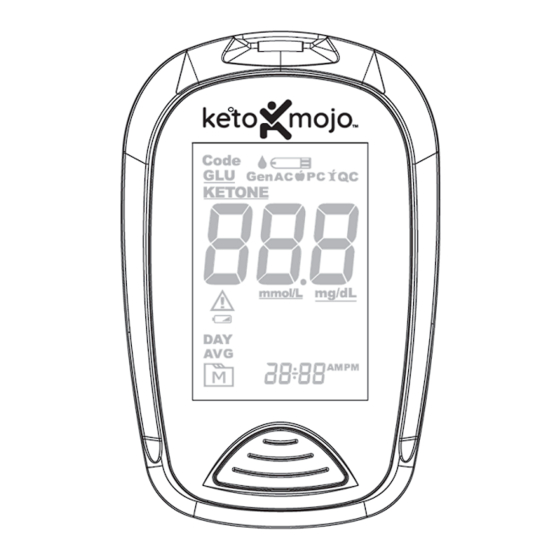

Keto-Mojo TD-4279 Owner's Manual

B-ketone & blood glucose monitoring system
Hide thumbs Also See for TD-4279:
Table of Contents

Advertisement

Quick Links

β-Ketone & Blood Glucose Monitoring System
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-4279 and is the answer not in the manual?

Questions and answers

Related Manuals for Keto-Mojo TD-4279

Summary of Contents for Keto-Mojo TD-4279

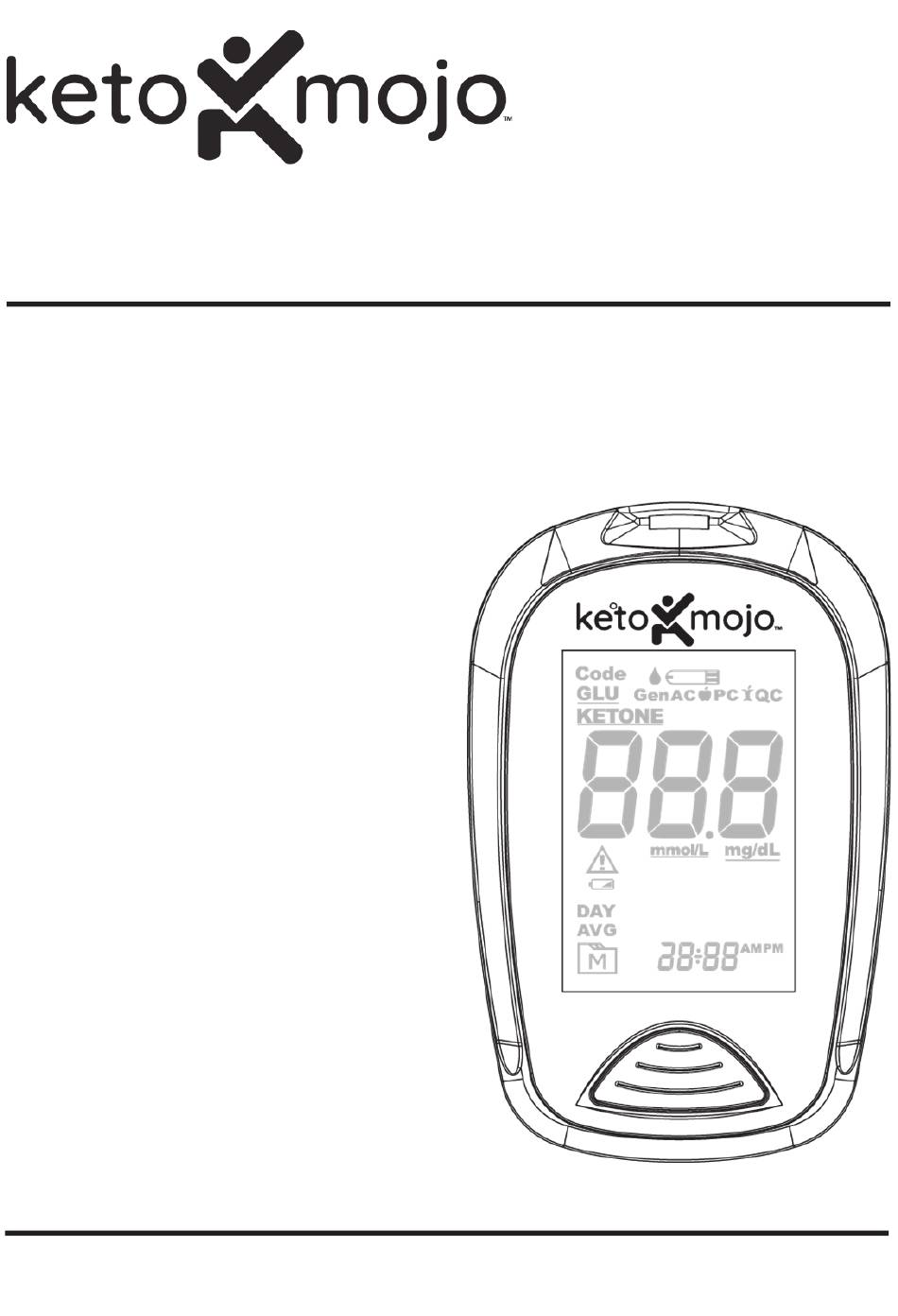

  • Page 1 β-Ketone & Blood Glucose Monitoring System Owner’s Manual...
  • Page 2 β-ketone levels can help you and your doctor gain better control of your diabetes. Due to its compact size and easy operation, you can use the Keto-Mojo β-Ketone & Blood Glucose Monitoring System to easily monitor your blood glucose and β- ketone levels by yourself anywhere, any time.
  • Page 3 Test Principle Your system measures the amount of glucose/β-ketone in whole blood. The glucose/β-ketone testing is based on the measurement of electrical current generated by the reaction of glucose/β-ketone with the reagent of the strip. The meter measures the current, calculates the glucose/β- ketone level, and displays the result.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS READ BEFORE USE  The meter and lancing device are for single patient use. Do not share them with anyone including other family members! Do not use on multiple patients!  All parts of the kit are considered biohazardous and can potentially transmit infectious diseases, even after you have performed cleaning and disinfection.
  • Page 5 10. Use only Keto-Mojo Glucose Test Strips with Keto-Mojo β-Ketone & Blood Glucose Monitoring System to obtain accurate results, and be covered by the manufacturer’s warranty.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS   BEFORE YOU BEGIN .................... 1   Important Information..............1   Limitation ..................1   Meter Overview ................2   Display Screen................3   Test Strip ..................4   Contents of System ..............5   SETTING THE METER ................... 5  ...

  • Page 9: Before You Begin

    BEFORE YOU BEGIN Important Information  If your blood glucose results or β-ketone are lower or higher than usual, and you do not have any symptoms of illness, first repeat the test. If you have symptoms or continue to get results which are higher or lower than usual, follow the treatment advice of your healthcare professional.

  • Page 10: Meter Overview

    Meter Overview ① Test Strip Slot / Strip Port Communication Insert test strip here to turn the meter on for testing. Connect strip port cable for data transmission. ② Bluetooth Indicator Light ③ Display Screen ④ Main Button (M) ⑤ Test Strip Ejector Eject the used strip by pushing up this button.

  • Page 11: Display Screen

    Display Screen ⑫ Glucose Symbol Measuring Mode ① Ketone Symbol AC – before meal ② PC – after meal Gen – any time of day Test Result ⑬ Test Strip Symbol ③ ⑭ Error Message/ Blood Drop Symbol ④ Ketone Waning ⑮...

  • Page 12: Test Strip

     The Keto-Mojo monitor should only be used with Keto-Mojo Glucose or β-Ketone Test Strips. Using other test strips with this meter can produce inaccurate results.  Do not use any other test strips including any other Keto-Mojo test strips or the result may be incorrect.

  • Page 13: Contents Of System

    Contents of System 1. Keto-Mojo β-ketone & blood glucose monitoring system 2. Keto-Mojo β-ketone test strips 3. Keto-Mojo glucose test strips 4. Lancing device 5. Lancets 6. Protective wallet 7. Batteries 8. Manual/instructions Test strips (e), control solution (f), lancing device (g) or sterile lancets (h) are optional and may not be included in the kit (please check the contents in your product box).
  • Page 14 2. Setting the time format Press M to select the desired time format ---12h or 24h. Press S. 3. Setting the time With the HOUR / MINUTE flashing in sequence, press M until the correct hour/minute appears. Press S. 4. Setting the unit of measurement Press M to switch between mg/dL and mmol/L.
  • Page 15 8. Setting the auto send (For Keto-Mojo) Press M to select the auto-send (“AS”) “On” or “OFF”. Press S. NOTICE: When the alarm beeps, press M to switch it off. Otherwise, it will beep for 2 minutes then switch off.

  • Page 16: The Measuring Modes

    THE MEASURING MODES For Blood Glucose Testing The meter provides you with three modes for measuring, General, AC, and PC. You can switch between each mode by: 1. Start with the meter switched off. Insert a test strip to turn on the meter.

  • Page 17: Checking The Code Number (C)

    2. Remove the code strip, the display will show “OK”. This tells you that the meter has finished coding and is ready for β-ketone testing. Checking the Code Number (c) You need to make sure that the code number displayed on the meter matches the number on your test strip vial before you proceed.

  • Page 18: Performing A Control Solution Test

    CONTROL SOLUTION TESTING Our Control Solution contains a known amount of glucose/β-ketone that reacts with test strips and is used to ensure your meter and test strips are working together correctly. Do a control solution test when:  You first receive the meter ...
  • Page 19 NOTE:  To avoid contaminating the control solution, do not directly apply control solution onto a strip.  For blood glucose or β-ketone test, your device will tag this measurement as QC test automatically. 3. Read and compare the result After counting down to 0, the control solution test result will appear on the display.

  • Page 20: Testing With Blood Sample

    TESTING WITH BLOOD SAMPLE WARNING: To reduce the chance of infection:  Never share a lancet or the lancing device.  Always use a new, sterile lancet. Lancets are for single use only.  Avoid getting hand lotion, oils, dirt, or debris in or on the lancets and the lancing device.

  • Page 21: Performing A Blood Glucose Or Β-Ketone Test

    Please follow the suggestions below before obtaining a drop of blood:  Select the puncture site at fingertips.  Rub the puncture site for about 20 seconds before penetration.  Clean the puncture site using cotton moistened with 70% alcohol and let it air dry.
  • Page 22 3. Obtaining a blood sample (j) Use the pre-set lancing device to puncture the desired site. Wipe off the first appeared drop of blood with a clean cotton swab. The size of the drop should be at least as big as․(actual size), which is 1.0 microliter (μL) of volume.
  • Page 23 0. The result will be stored in your memory automatically. If your test result is lower than expected using the keto-Mojo meter, contact your healthcare professional immediately for the further testing. 6. Remove the used test strip and lancet (l) Eject your test strip by pushing the eject button on the side.

  • Page 24: Meter Memory

    METER MEMORY This meter stores the 1000 most recent blood glucose/β-ketone test results, dates and times in its memory. To enter the meter memory, start with the meter switched off. Reviewing Test Results 1. Press and release M. “ ” will appear on the display. Press M again, and the first reading you see is the last blood glucose or β-ketone result along with date, time and the measuring mode.

  • Page 25: Bluetooth Pairing

    Data Transmission via Bluetooth You can transmit your data from the meter to your device via Bluetooth. The Keto-Mojo app is designed to assist you easily monitoring your blood glucose, and β-ketone levels. How to Install and Update the Keto-Mojo app You must connect to the internet to download the app.
  • Page 26 2. With the meter off, push the Bluetooth switch for 3 seconds to turn Bluetooth on. 3. Follow the instruction of the Keto-Mojo app to pair the device. (Ex: Search to find the meter and then add it into app.) 4.

  • Page 27: Maintenance

    MAINTENANCE Battery Your meter comes with two 1.5V AAA size alkaline batteries. Low Battery Signal The meter will display one of the messages below to alert you when the meter power is getting low. 1. The “ ” symbol appears. The meter is functional and the result remains accurate, but it is time to change the batteries.

  • Page 28: Caring For Your Meter

    Caring for Your Meter To avoid the meter and test strips attracting dirt, dust or other contaminants, please wash hands thoroughly with soap and water before and after use. Why the cleaning and disinfection should be performed Cleaning and disinfection are different. Cleaning is the process of removing dirt (e.g.

  • Page 29: Disinfecting Procedures

    Disinfecting Procedures 1. Wipe all meter’s exterior surface display and buttons by three passes vertically and three passes horizontally with a folded disinfecting towelette. Hold the meter with the test strip slot pointing down and wipe the area around the test slot but be careful not to allow excess liquid to get inside.
  • Page 30 Please contact the customer service for a replacement meter if any of the signs of deterioration are noticed. NOTE:  Do NOT clean and disinfect the meter while performing tests.  If another person is assisting with the measurement and he or she is responsible for operating the meter, that person should clean and disinfect the meter and lancing device prior to the measurement.

  • Page 31: Caring For Your Test Strips

    Caring for Your Test Strips Storage conditions: 35.6 F to 86.0 F (2 C to 30 C), between 10%  and 85% relative humidity (non-condensing). Do NOT freeze. Store your test strips in their original vial only. Do not transfer to ...

  • Page 32: Important Control Solution Information

    Important Control Solution Information Use only our control solutions with your meter.  Do not use the control solution beyond the expiration date or 3  months after first opening. Write the opening date on the control solution vial and discard the remaining solution after 3 months. It is recommended that the control solution test be done at room ...

  • Page 33: Measurement Results Readings

    MEASUREMENT RESULTS READINGS For Blood Glucose Test MESSAGE WHAT IT MEANS < 10 mg/dL (0.56 mmol/L) 10 mg/dL - 239 mg/dL (0.56 mmol/L - 13.2 mmol/L) ≥ 240 mg/dL (13.3 mmol/L) The User’s blood glucose level has exceeded 240 mg/dL (13.3 mmol/L), possible of ketoacidosis.

  • Page 34: Detailed Information

    Detailed Information Blood glucose plus β-ketone monitoring plays an important role in diabetes control. A long-term study showed that maintaining blood glucose levels close to normal can reduce the risk of diabetes complications by up to 60%* . The results provided by this system can help you and your healthcare professional monitor and adjust your treatment plan to gain better control of your diabetes.

  • Page 35: Comparing Meter And Laboratory Results

    Comparing Meter and Laboratory Results The meter provides you with whole blood equivalent results. The result you obtain from your meter may differ somewhat from your laboratory result due to normal variation. Meter results may be affected by factors and conditions that do not affect laboratory results in the same way.

  • Page 36: Error Messages

    If the problem persists, please down, or insufficient blood contact the local customer volume. service for help. Repeat the test with a new test strip. If the meter still does not Problem with the meter. work, please contact Keto-Mojo Customer Support for assistance.

  • Page 37: Troubleshooting

    Test strip inserted upside down or Insert the test strip with contact bars incompletely. end first and facing up. Please contact Keto-Mojo Customer Defective meter or test strips. Support for assistance. 2. If the test does not start after applying the sample:...
  • Page 38 20°C to or too cold. 25°C (68°F to 77°F) before testing. Defective test strip. Repeat the test with a new test strip. Please contact Keto-Mojo Customer Meter malfunction. Support for assistance. Improper working of meter and Please contact Keto-Mojo Customer test strip.

  • Page 39: Specifications

    SPECIFICATIONS Model No.: Keto-Mojo Dimension & Weight: 96 (L) x 61 (W) x 26 (H) mm, 67.2 g Power Source: Two 1.5V AAA alkaline batteries Display: LCD Memory: 1000 measurement results with respective date and time External Output: Bluetooth Auto electrode insertion detection...
  • Page 40 β-ketone Test: 0.1 to 8.0 mmol/L Expected Service Life: 5 years The Keto-Mojo β-ketone & blood glucose monitoring system is intended for use in the home environment. The customer or user of the system should ensure that it is used in such an environment.
  • Page 41 Manufactured for: Keto-Check Inc, 952 School St. Suite 212 Napa, CA 94559-2824 Tel: 800.513.1965 10am-4pm PST Please contact your healthcare provider outside hours of operation. www.Keto-Mojo.com For Self-testing. Read instructions before use.
