AOG IRB-18 Quick Start Manual

Infrared burner kit

Advertisement

Quick Links

INFRARED BURNER KIT
INSTRUCTIONS
Model # IRB-18

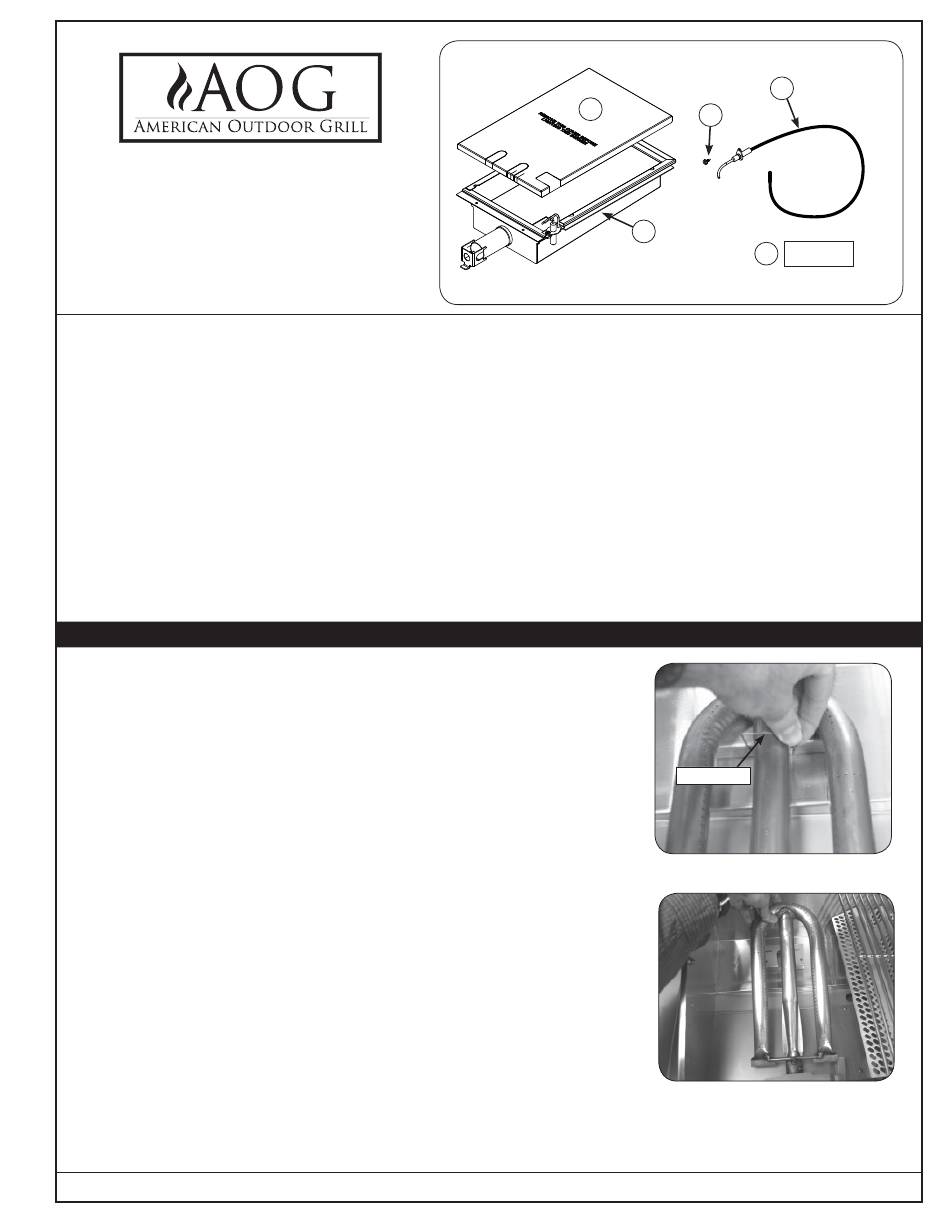

PARTS INCLUDED
1. Infrared burner
2. Ignitor wire assembly
3. Self-tapping sheet-metal screw
4. Infrared cover
5. Conversion label
TOOLS REQUIRED
• Phillips screwdriver
• 9 / 16 open -end wrench
• 1 / 4 nut driver or socket wrench
REMOVING THE LEFT MAIN BURNER
1. Starting with a cool grill (see caution above), open the oven
lid and remove the rotisserie rod if installed.
2. Remove the cooking grid and fl avor grid from the left-most
burner. Set the cooking grid aside. The fl avor grid will not
be used with the infrared, and should be stored way.
3. Remove the left-most burner by fi rst removing the burner clip
(see Fig. 1-1). Lift the back of the burner up and back (see
Fig. 1-2) so that it pulls out from the forward fi re wall opening
and the orifi ce. Retain the burner clip
use, if desired.
4. Remove the drip tray completely from it's slot.
American Outdoor Grill • PO Box 4053 • La Puente, CA 91747
REV 5 - 1502231100
4
Follow these instructions to install an infrared burner in
your American Outdoor Grill.
CAUTION: Turn each of the burner control knobs to the
OFF position and close the gas shut-off valve
to the grill. Wait for the grill to cool completely
before beginning this procedure.
INSTALLATION
and burner for future
1
2
3
1
5
This unit has been retrofi tted
Included parts
Burner clip
Fig. 1-1 Remove the grids and burner clip
Fig. 1-2 Remove the burner
NOTE:
with an infrared burner.
L-C2-267

Advertisement

loading
Need help?

Need help?

Do you have a question about the IRB-18 and is the answer not in the manual?

Questions and answers

Summary of Contents for AOG IRB-18

  • Page 1 INFRARED BURNER KIT INSTRUCTIONS NOTE: This unit has been retrofi tted with an infrared burner. Model # IRB-18 Included parts Follow these instructions to install an infrared burner in PARTS INCLUDED your American Outdoor Grill. 1. Infrared burner 2. Ignitor wire assembly CAUTION: Turn each of the burner control knobs to the 3.
  • Page 2 INSTALLATION (cont.) 5. Remove the control panel. If needed, refer to the owner's manual included with your grill. 6. Remove the existing ignitor box by fi rst loosening the nut on Old ignitor the faceplate side of the fi re wall with a wrench. Disconnect the wire connector from the electrode and pull it through the hole (see Fig.
  • Page 3 INSTALLATION (cont.) INSTALLING THE NEW INFRARED BURNER KIT Insulator 1. Locate the new ignitor wire assembly with the insulator and Bracket Ignitor thread the insulated wire through the hole in the forward fi re hole wire wall left by the old ignitor box, as shown in Fig. 3-1. Mark the fi...
  • Page 4 INSTALLATION (cont.) 4. Connect the bare end of the ignitor wire to the bottom of the electrode assembly on the infrared burner (see Fig. 4-1). Connect 5. Attach the other end of the new ignitor wire assembly (the here Ignitor insulated end) to any connector on the back of the ignitor electrodes (see Fig.
  • Page 5: Infrared Burner Operation

    INFRARED BURNER OPERATION The infrared (IR) searing burner (optional) cooks with WARNING a powerful radiant heat. Only handle the infrared burner cover when the unit is cold or with a well-insulated long-handled tool or heat resistant gloves. Cover SIDE VIEW (with cover on) Ignitor NO foreign electrode...
  • Page 6 NOTES PAGE Please use this page to record any information about your unit that you may want to have at hand.
