AOG IRB-18 Instructions Manual

INFRARED BURNER KIT
INSTRUCTIONS
Model # IRB-18

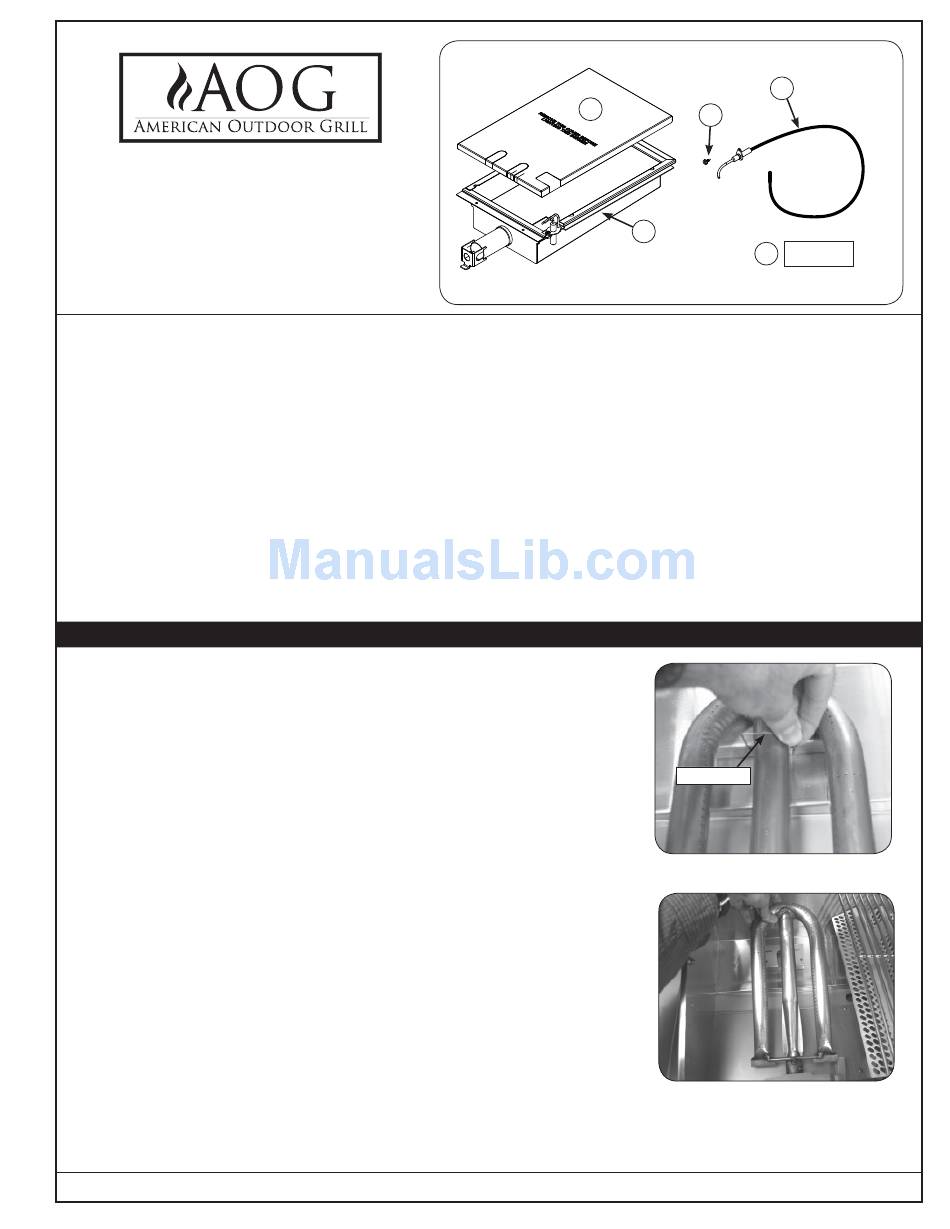

PARTS INCLUDED

1. Infrared burner
2. Igniter wire assembly
3. Self-tapping sheet-metal screw
4. Infrared cover
5. Conversion label

TOOLS REQUIRED

• Phillips screwdriver
9
• / " open -end wrench
16
1
• / " nut driver or socket wrench
4

REMOVING THE LEFT MAIN BURNER

1. Starting with a cool grill (see caution above), open the oven
lid and remove the rotisserie rod if installed.
2. Remove the cooking grid and fl avor grid from the left-most
burner. Set the cooking grid aside. The fl avor grid will not
be used with the infrared, and should be stored way.
3. Remove the left-most burner by fi rst removing the burner clip
(see Fig. 1-1). Lift the back of the burner up and back (see
Fig. 1-2) so that it pulls out from the forward fi re wall opening
and the orifi ce. Retain the burner clip
use, if desired.
American Outdoor Grill • PO Box 4053 • La Puente, CA 91747
REV 6 - 1607150855
4
Follow these instructions to install an infrared burner in
your American Outdoor Grill.
CAUTION: Turn each of the burner control knobs to the
OFF position and close the gas shut-off valve
to the grill. Wait for the grill to cool completely
before beginning this procedure.

INSTALLATION

and burner for future
1
2
3
1
5
This unit has been retrofi tted
Included parts
Burner clip
Fig. 1-1 Remove the grids and burner clip
Fig. 1-2 Remove the burner
NOTE:
with an infrared burner.
L-C2-267
