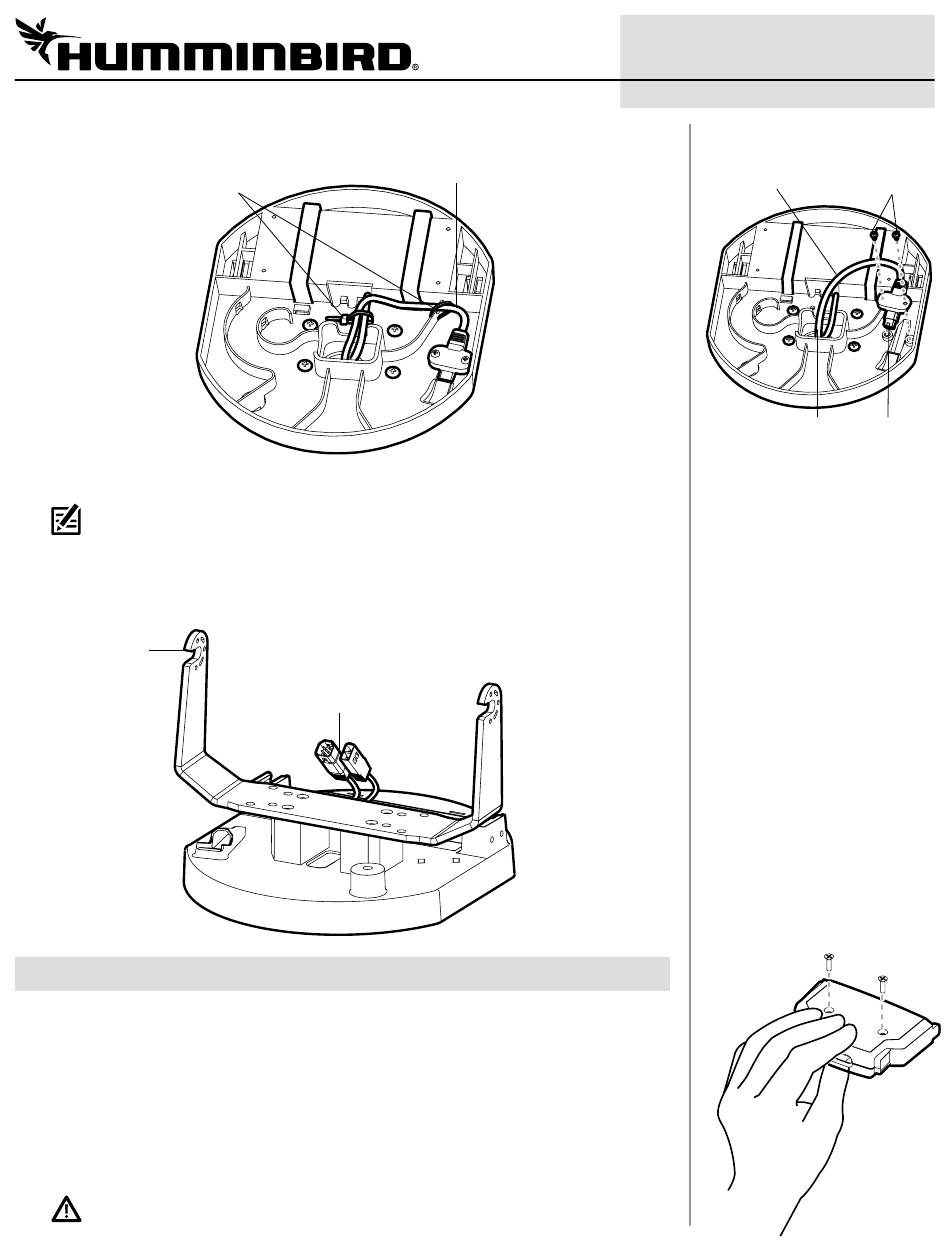

ICE HELIX® PORTABLE CONVERSION KIT Installation Guide
mounting
8. Turn the base right side up and pull up gently on the battery tie-down straps to remove the slack.
NOTE: Before you install the battery into the portable case, finish the assembly procedures
and charge the battery according to the manufacturer's recommendations.
9. Route the power cable and transducer jumper cable under the gimbal bracket. See the
illustration Portable Base Assembly.
opening
in bracket
arms
3
| Assembling the Cable Tray
The cable tray is an important part of the control head installation. It secures the cables and
protects them from potential damage.
1. Use a Phillips-head screwdriver to remove the screws from the bottom of the cable tray.
2. Hold the cable tray together and turn it over, so the Humminbird logo is facing up. Lift the
cover and set it aside. See the illustration Locating the Cable Tray Slots.
3. Insert each cable connector into the correct slots in the tray.
Each slot is shaped specifically for each connector, and insertion should be easy. Route the
cables using the grooves in the tray.
CAUTION! It is important to place the connectors into the correct slots and right side up. See
the illustration Locating the Cable Tray Slots for details.
Tying Down the Cables
zip tie
point
Portable Base Assembly
cables routed behind the bracket
transducer
jumper cable
532686-1_A
Installing the Cables onto the Base
transducer
jumper cable
screws
power cable jumper
cable well
Removing the Screws
