FAUCET SPECIFICATIONS

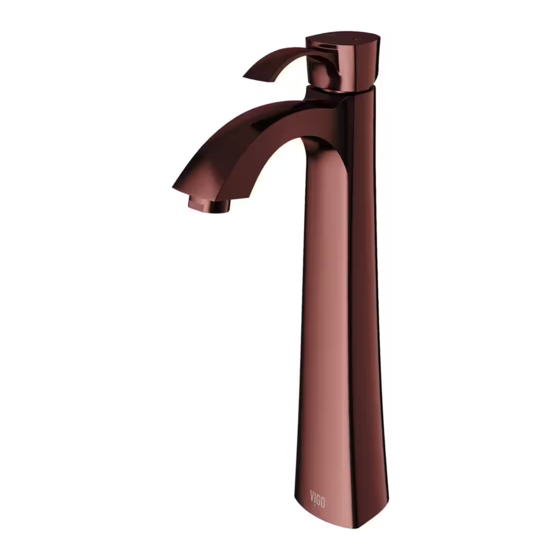

Vessel Bathroom Faucet
Model VG03023
MODEL VG03023
FEATURES
Solid brass construction
Single hole construction
Ceramic disk cartridge
Single lever faucet
Standard plumbing connections
Finish resist corrosion and tarnishing
PACKING LIST
Faucet Assembly
Gasket
Allen Key
Two Metal braided hoses
Lock nut
Set screws
Plate
DIMENSIONS
MODEL #
FAUCET
HEIGHT
VG03023
12"
SPOUT
HOLE
REACH
DIAMETER
4 3/4"
1 3/8"
4 3/4"
Advertisement
Table of Contents
Related Manuals for VIGO VG03023MB
Summary of Contents for VIGO VG03023MB
- Page 1 FAUCET SPECIFICATIONS Vessel Bathroom Faucet Model VG03023 MODEL VG03023 FEATURES Solid brass construction Single hole construction Ceramic disk cartridge Single lever faucet Standard plumbing connections Finish resist corrosion and tarnishing PACKING LIST Faucet Assembly Gasket Allen Key Two Metal braided hoses Lock nut Set screws Plate...
- Page 2 4 3/4" 2 1/8" 2 1/4" VG03023 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"...
- Page 3 MINUTE EACH. WHILE WATER IS RUNNING, parts are included and visually inspect the unit for any defects. CHECK FOR LEAKS, ESPECIALLY AT HOOK-UPS If you have any questions please contact the Vigo Technical Support TO SUPPLY LINES. TIGHTENING NUTS SLIGHTLY Department before proceeding with installation.
- Page 4 PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART...
- Page 5 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
