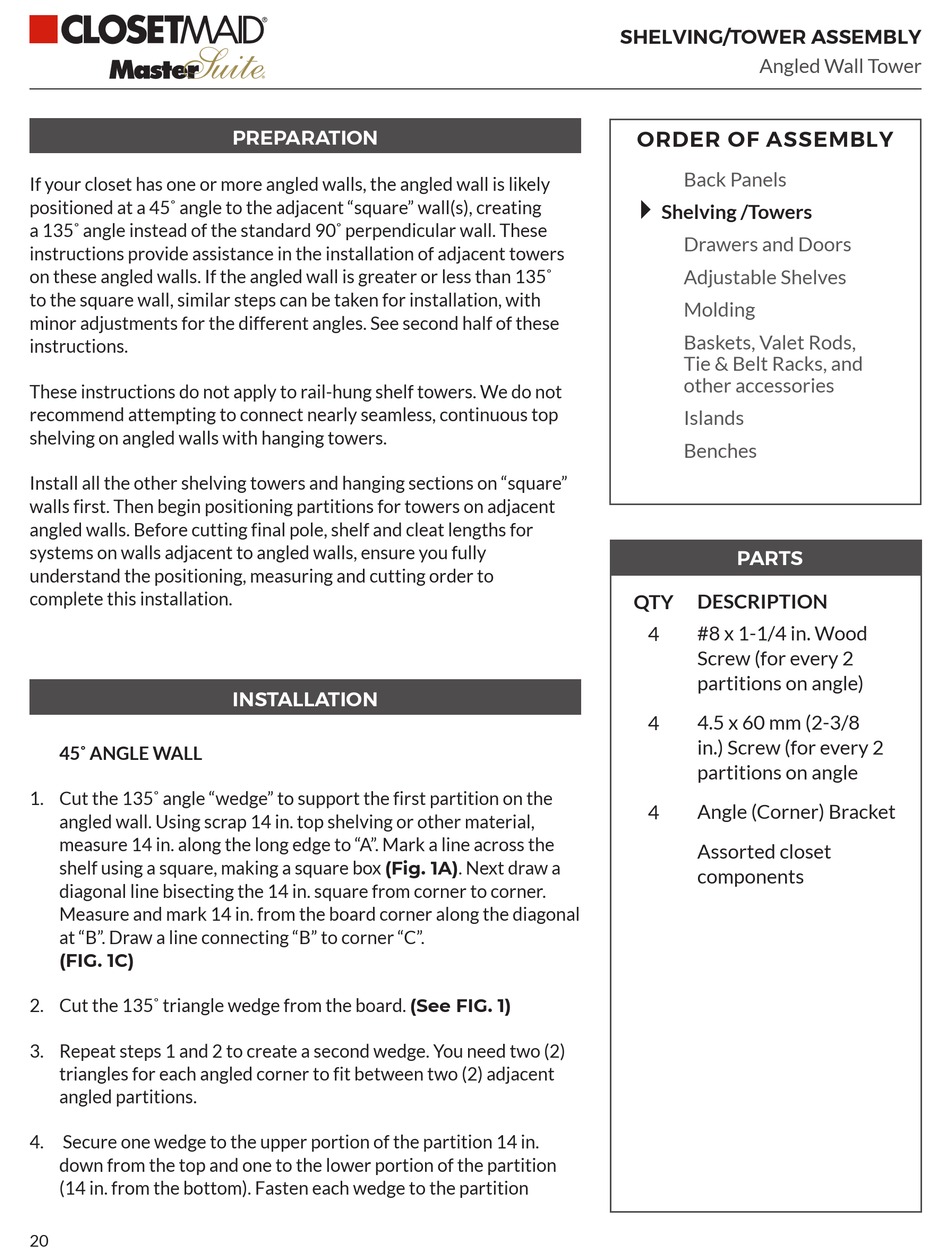

Angled Wall Tower - ClosetMaid MasterSuite Installer's Assembly, Installation & Reference Manual

If your closet has one or more angled walls, the angled wall is likely
positioned at a 45˚ angle to the adjacent "square" wall(s), creating
a 135˚ angle instead of the standard 90˚ perpendicular wall. These
instructions provide assistance in the installation of adjacent towers
on these angled walls. If the angled wall is greater or less than 135˚
to the square wall, similar steps can be taken for installation, with
minor adjustments for the different angles. See second half of these
instructions.
These instructions do not apply to rail-hung shelf towers. We do not
recommend attempting to connect nearly seamless, continuous top
shelving on angled walls with hanging towers.
Install all the other shelving towers and hanging sections on "square"
walls first. Then begin positioning partitions for towers on adjacent
angled walls. Before cutting final pole, shelf and cleat lengths for
systems on walls adjacent to angled walls, ensure you fully
understand the positioning, measuring and cutting order to
complete this installation.
45˚ ANGLE WALL
1. Cut the 135˚ angle "wedge" to support the first partition on the
angled wall. Using scrap 14 in. top shelving or other material,
measure 14 in. along the long edge to "A". Mark a line across the
shelf using a square, making a square box (Fig. 1A). Next draw a
diagonal line bisecting the 14 in. square from corner to corner.
Measure and mark 14 in. from the board corner along the diagonal
at "B". Draw a line connecting "B" to corner "C".
(FIG. 1C)
2. Cut the 135˚ triangle wedge from the board. (See FIG. 1)
3. Repeat steps 1 and 2 to create a second wedge. You need two (2)
triangles for each angled corner to fit between two (2) adjacent
angled partitions.
4. Secure one wedge to the upper portion of the partition 14 in.
down from the top and one to the lower portion of the partition
(14 in. from the bottom). Fasten each wedge to the partition
20
PREPARATION
INSTALLATION
SHELVING/TOWER ASSEMBLY

Angled Wall Tower

ORDER OF ASSEMBLY
Back Panels
}
Shelving /Towers
Drawers and Doors
Adjustable Shelves
Molding
Baskets, Valet Rods,
Tie & Belt Racks, and
other accessories
Islands
Benches
PARTS
QTY DESCRIPTION
#8 x 1-1/4 in. Wood
4
Screw (for every 2
partitions on angle)
4.5 x 60 mm (2-3/8
4
in.) Screw (for every 2
partitions on angle
4 Angle (Corner) Bracket
Assorted closet
components
