System Q ZIP Series User Manual

Poe/non-poe 32 channel – 16x poe switch/16 channel nvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

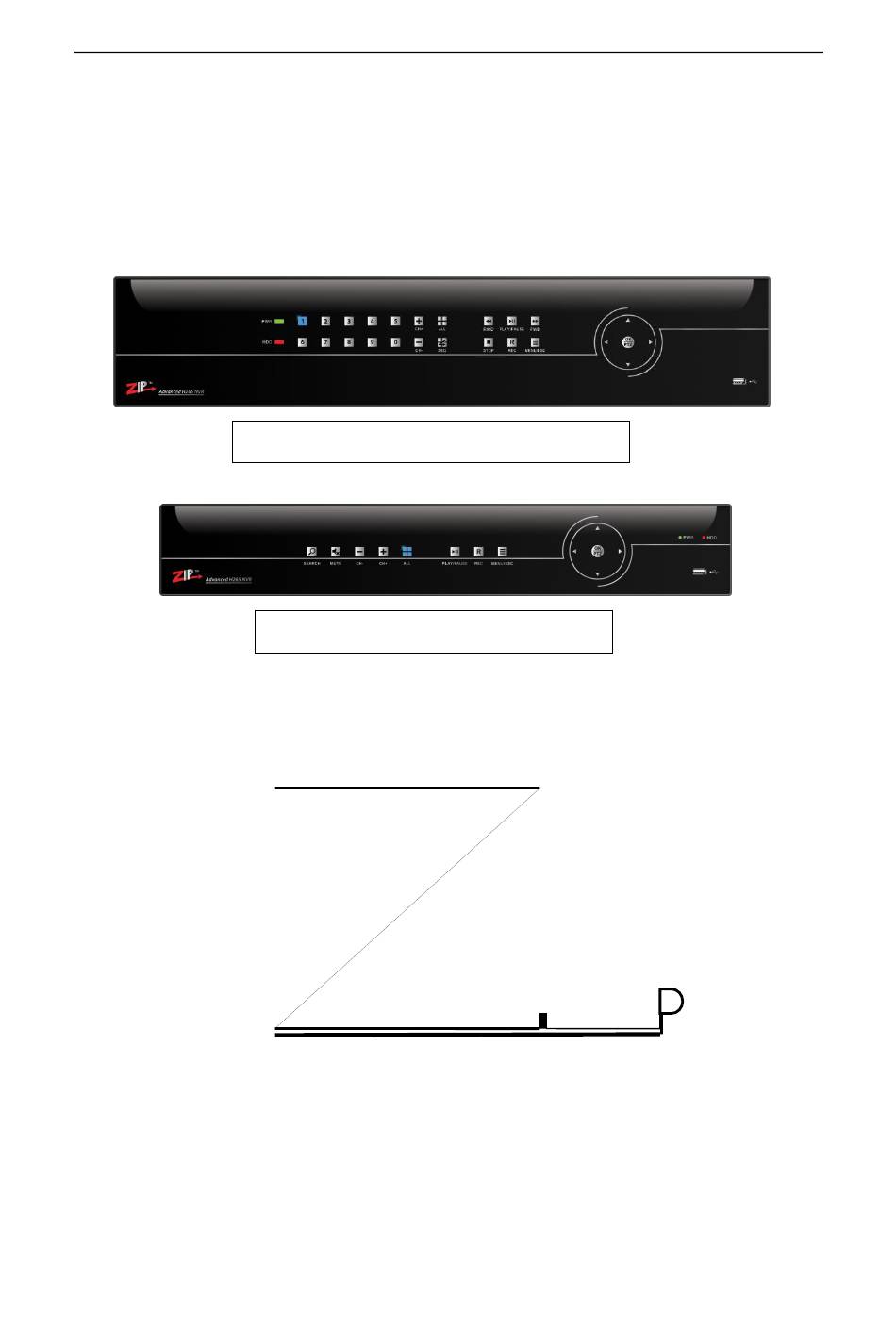

ZIP NVR USER MANUAL
ZIP NVR USER MANUAL
ZIP226 PoE 32 channel – 16x PoE Switch
ZIP116 Non-PoE
16 channel NVR
Models:
ZIP104 Non-PoE 4 channel NVR
ZIP108 Non-PoE 8 channel NVR
ZIP116 Non-PoE 16 channel NVR
ZIP204 PoE 4 channel – 4x PoE Switch
ZIP208 PoE 8 channel – 8x PoE Switch
ZIP216 PoE 16 channel – 16x PoE Switch
ZIP226 PoE 32 channel – 16x PoE Switch
ZIPNVR VERSION 40
Last Revised 07/07/2019
1
