Summary of Contents for System Q SimplySMART DSD100

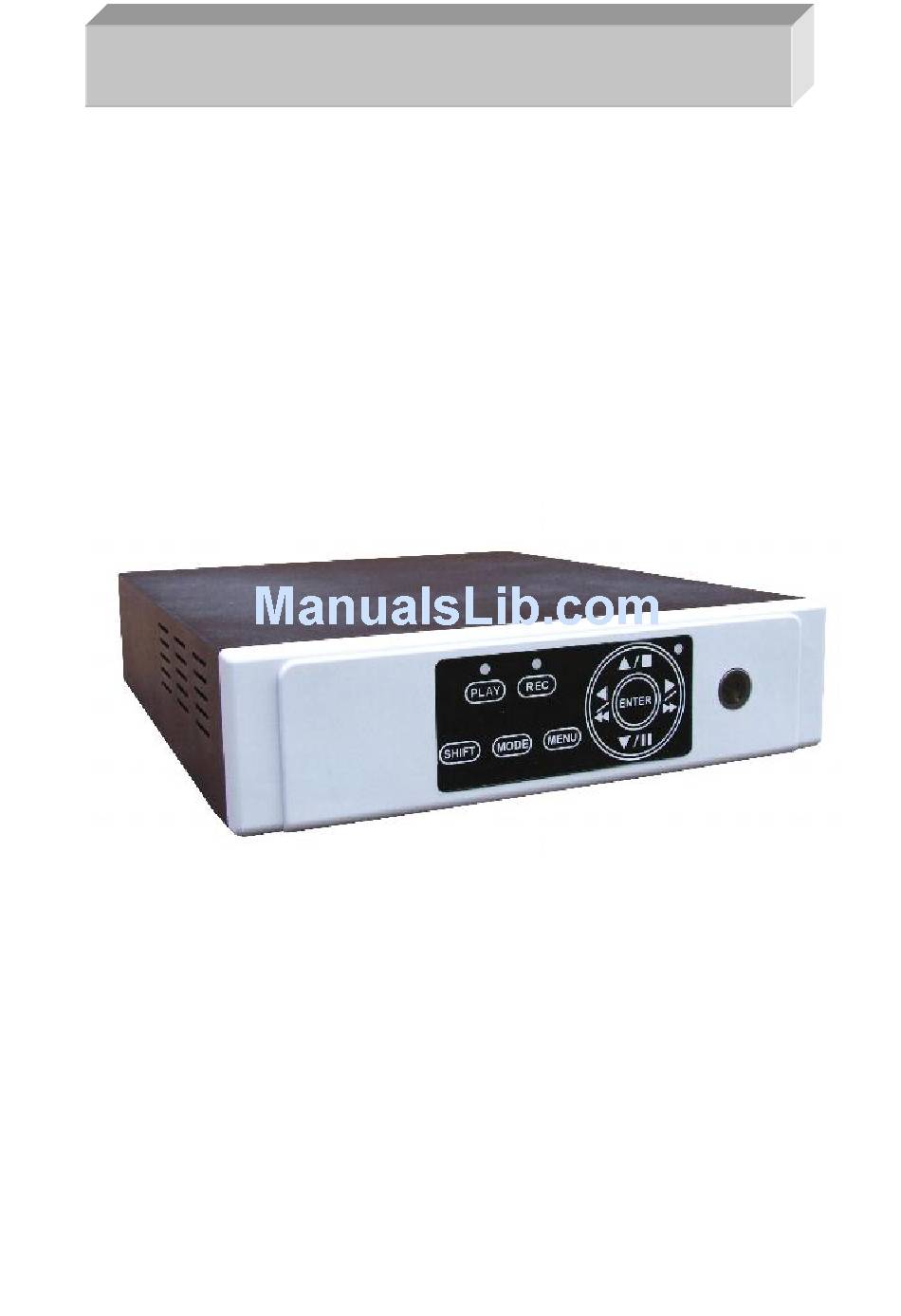

- Page 1 TheSmartDVR.com Installation and Operation Manual The SimplySMART DSD100 4 Channel DVR Version 2.4...
-
Page 2: Table Of Contents
Quality & Value The SmartDVR.com CONTENTS INSTALLATION & SAFEGUARDS DSD100 SIMPLY SMART BASIC MODE 1.1 FRONT PANEL 1.2 REAR PANEL REMOTE CONTROLLER OPERATION SYSTEM SETUP 4.1 TIME SETUP 4.2 AUTO RECORD 4.3 HARD DISK SETUP 4.4 LANGUAGE 4.5 SEARCH PLAYER SOFTWARE ADVANCED MODE 6.1 ACCESSING ADVANCED MENU 6.2 OPERATION... -
Page 3: Installation & Safeguards
Quality & Value The SmartDVR.com INSTALLATION & SAFEGUARDS INSTALLATION & SAFEGUARDS All the safety and operating instructions should be read before the unit is operated. Environment Condition for Installation To prevent electric shock or other hazard, do not expose this unit to rain, moisture or dust. This unit should be located in an area with low humidity and a low dust level. -
Page 4: Basic Mode
Quality & Value The SmartDVR.com Contents 1. BASIC MODE 1.1 FRONT PANEL HST = HIGHEST, HIG = HIGH, NOR = NORMAL, LOW = LOW, LST = LOWEST... -
Page 5: Rear Panel
Quality & Value The SmartDVR.com 1.2 REAR PANEL PART NUMBER DESCRIPTION 1. DC IN Power Input - 12v DC / 5Amps 2. USB USB device connection 3. CAM IN Camera Inputs 1 ~ 4 BNC connections 4. MONITOR Monitor Output... -
Page 6: Remote Controller
Quality & Value The SmartDVR.com 2. REMOTE CONTROLLER... -
Page 7: Operation
Quality & Value The SmartDVR.com 3. OPERATION Power on the DVR system and the real-time video can be seen by a quad screen or single full screen display . User can press MODE button to switch the display mode . Playback mode : Press PLAY button and user can search date/time to playback . -
Page 8: System Setup
Quality & Value The SmartDVR.com 4. SYSTEM SETUP 4.1 Time Setup User can setup time and date format in this menu or using the up-down button can change the date and time. Finally press apply to change time. 4.2 Auto Record: On / Off When auto record is set on, the DVR will start recording after the DVR is powered on. - Page 9 Quality & Value The SmartDVR.com 4.5.4. Press MENU return to the previous screen and move cursor to Search. 4.5.5. Press ENTER to start searching. 4.5.6. Wait until the unit starts playback. Playback mode Forward speed: x 2 / x 3 / x 4 (Direction right button) Reverse speed: x 8 / x 16 / x 32 (Direction left button)
-
Page 10: Player Software
Quality & Value The SmartDVR.com 5. PLAYER SOFTWARE Start to play: AVI Button: .vvf files export to .avi format. -
Page 11: Advanced Mode
Quality & Value The SmartDVR.com 6. ADVANCED MODE 6.1 ACCESSING ADVANCED MENU For those who wish to use advanced features in this DVR, you can access the admin menu by pressing the following direction keys in the order shown below: Press ENTER button, then press the following buttons in succession then press MENU 6.2 OPERATION... - Page 12 Quality & Value The SmartDVR.com 4. The system will auto read the USB device then start to backup data . Icon Indicator: In live mode or playback mode, the icons show at top line on screen to notify user the system status. Below are listed the icon status .
-
Page 13: Accessing Advanced Menu - System Setup
Quality & Value The SmartDVR.com 7. ACCESSING ADVANCED MENU 7. SYSTEM SETUP When user accesses admin menu setup, please press ENTER then keys followed by “ MENU” . 7.1. Camera Setup User can setup each channel display status and adjust the camera brightness, contrast, hue and saturation. - Page 14 Quality & Value The SmartDVR.com CHAP. 3 Installation 7.2.1 Schedule Record Frame rate User can use the direction left button to decrease the frame rate or direction right button to increase the frame rate value. After changing the frame rate value, press “...
- Page 15 Quality & Value The SmartDVR.com 7.2.6 Data Retention: OFF / 1 ~ 15 days selectable. 7.2.7 Schedule Record Use the left button or right button to select time and use the “ Enter” button to change record type. Note: 1. Each channel has own frame rate adjustment in different recording mode. 2.
-
Page 16: Motion Detection
Quality & Value The SmartDVR.com 7.3 Motion Detection Motion detection can be setup on each channel independently. 7.3.1 Channel : User can setup different motion detection on channels (1~ 4 ) 7.3.2 Sensitivity : Off / Low / Normal / High 7.3.3 Pop up : OFF/ 1 ~ 30 Seconds /CONT Each channel displays in full screen when motion triggered. -
Page 17: Screen
Quality & Value The SmartDVR.com 7.4 SCREEN Let user setup the screen display 7.4.1 SCREEN: Split border on or off. 7.4.2 Video Adjustment: Video screen position movement using direction buttons. 7.4.3 Video system : NTSC/ PAL/ AUTO 7.5 SYSTEM SETUP 7.5.1 Hard Disk Setup Overwrite Enable : Yes ->... - Page 18 Quality & Value The SmartDVR.com 7.5.2 Time Setup User can setup time zone and daylight saving time in this menu. User can also use up-down button to move to date and time change. Click on Apply to implement change. 7.5.3 Buzzer Setup System Buzzer: OS operating Key Press Buzzer: Button...
-
Page 19: Search
Quality & Value The SmartDVR.com 7.6 Search User can search video image by Time List, Event List and Time Search. 7.6.1 Time List mode Use direction button up and down to select date and time section, and then press ENTER to start playback. - Page 20 Quality & Value The SmartDVR.com 7.6.2 Event List mode Each event is listed on the event list. User can use up and down buttons to display event start time and end time for reference. After selecting an event, press “ ENTER” to start playback.
-
Page 21: Language
Quality & Value The SmartDVR.com Playback mode Forward speed: x 2 / x 3 / x 4 (Direction right button) Reverse speed: x 8 / x 16 / x 32 (Direction left button) Press “ STOP” button to return to live mode. -
Page 22: Dsd100 Specifications
Quality & Value The SmartDVR.com 8. DSD100 Specifications Input 4 x channel inputs 1.0v p~p, 75 unbalanced Output Main monitor x 1 S/N Ratio More than 40dB 6.7 million Colour Channel Display Single/Quad 640(H) x 544 (V) active pixels Screen Quality 100 frames per second (PAL) Display Rate Recording FPS... -
Page 23: Recording Times
Quality & Value The SmartDVR.com 9. RECORDING TIMES 4 Channel Record time table in days 10Kb 10Kb 10Kb 20Kb Lowest Normal High Highest 6FPS 6FPS 12FPS 50FPS 50FPS 23.2 11.6 46.3 23.2 11.6 92.6 46.3 23.2 144.7 72.3 36.2 108.5 54.3 14.5 1000...
