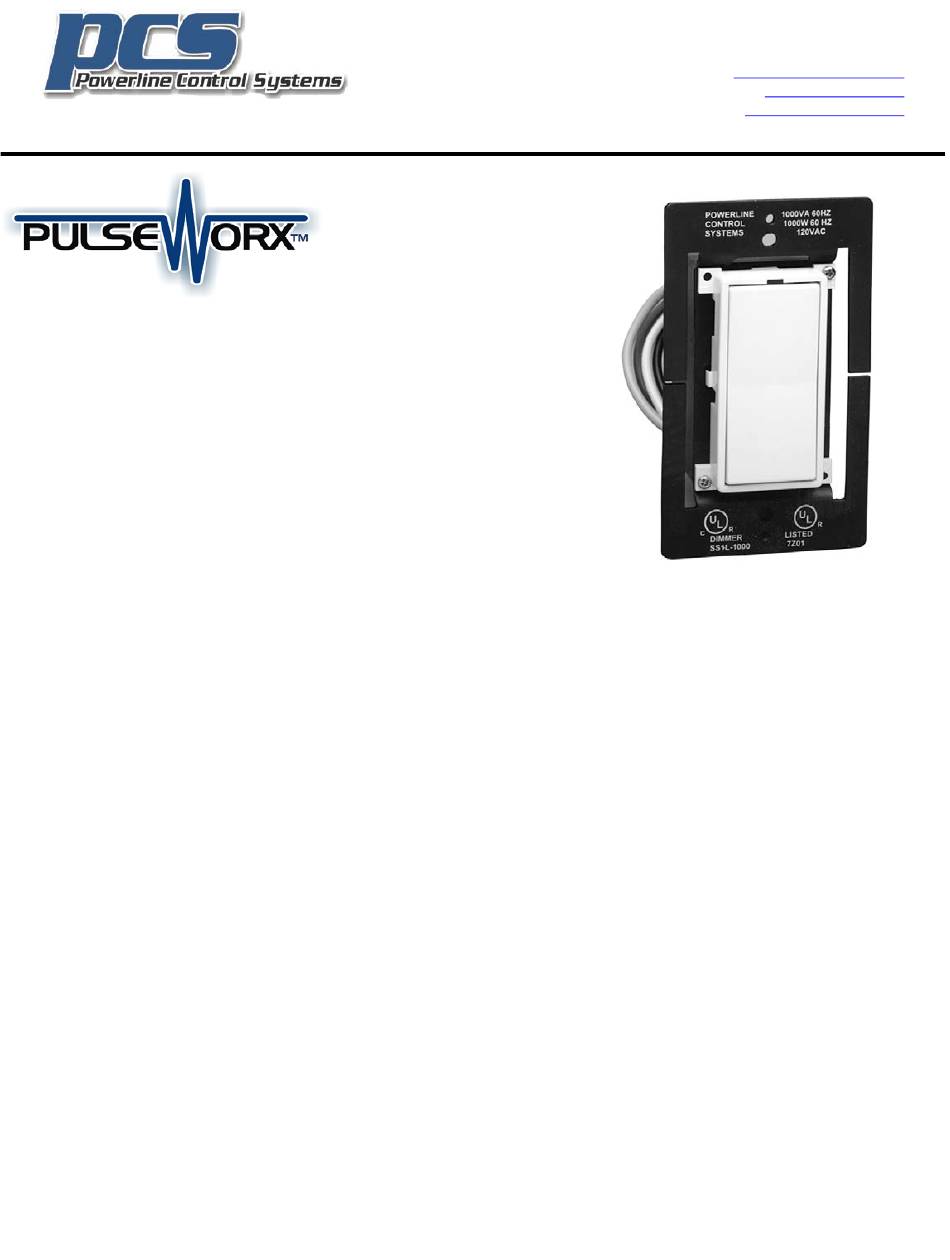

ELV Wall Switch Dimmer
and Remote Wall Switch
INSTALLATION AND OWNER'S GUIDE
For Models:
WS1E-3, WS1E-5 (Wall Switch Dimmers)
RWS (Remote Wall Switch)
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
Note: The WS1E is perfect for controlling electronic low voltage AC lighting ballasts and transformers.
These types of transformers usually have a note such as:
"Fully dimmable using a dimmer designed for an electronic transformer. An electronic
transformer can sometimes work with a standard incandescent dimmer. However, to
ensure that your lighting system works effectively with the greatest dimming range we
recommend that you use a dimmer that was specifically designed to control an electronic
low voltage transformer. Additionally, using this type of dimmer will diminish the
possibility of an audible hum when the dimmer is used – especially at low light levels."
This Wall Switch Dimmer is intended for installation in accordance with the National Electrical Code and
local regulations. It is recommended that a qualified electrician perform this installation. Retain these
instructions for reference or download the manual from www.PulseWorx.com.
To reduce the risk of overheating and possible damage to other equipment, do not use switch, when set to
dimming-capable, to control a receptacle, a motor-operated appliance, a fluorescent lighting fixture or a
transformer-supplied appliance. This product is for indoor use only. Connect only copper or copper clad
wire to this device.
Page 1 of 11
19215 Parthenia St., Suite D
Northridge, CA 91324
P: 818. 701.9831
pcssales@pcslighting.com
www.pcslighting.com
https://pcswebstore.com
Advertisement
Table of Contents
Related Manuals for PCS PulseWorx WS1E-3
Summary of Contents for PCS PulseWorx WS1E-3
- Page 1 19215 Parthenia St., Suite D Northridge, CA 91324 P: 818. 701.9831 pcssales@pcslighting.com www.pcslighting.com https://pcswebstore.com ELV Wall Switch Dimmer and Remote Wall Switch INSTALLATION AND OWNER’S GUIDE For Models: WS1E-3, WS1E-5 (Wall Switch Dimmers) RWS (Remote Wall Switch) READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE Note: The WS1E is perfect for controlling electronic low voltage AC lighting ballasts and transformers.
- Page 2 Important Notes Prior To Installation 1. All PCS PulseWorx™ Wall Switch Dimmers require a neutral (white) connection wire. About Your WS1E Wall Switch Dimmer The WS1E Wall Switch Dimmer (Figure 1) is a high quality light-switch/ dimmer that not only allows for local rocker switch control of electronic low voltage AC lighting ballasts or transformers but also incorporates PCS’s innovative UPB™...
- Page 3 Blue LED Black Line Top Rocker (On/Bright) Gray Neutral (for LED) Bottom Rocker (Off/Dim) Yellow Control wire to WS1D Figure 2: RWS Remote Wall Switch Page 3 of 11...
-
Page 4: Installation Instructions
Safety Ground Notes: (1) Remote = Optional one or more Remote Wall Switches (PCS model RWS). (2) Gray wire on RWS may be connected to neutral or ground (neutral recommended). (3) Main Panel = source of electricity providing the Line and Neutral. -
Page 5: Installation Procedure
Air-Gap Switch The WS1E rocker switch has an air-gap switch that will remove all power from the load for safe installation and bulb replacement. To activate the air-gap switch firmly press the rocker bottom until you hear a loud “click” or you see the SYSTEM “OFF” label on the top rocker. Installation Procedure 1. - Page 6 Using Your WS1E Wall Switch Dimmer The WS1E Wall Switch Dimmer is packed full of different options and configurations that can be programmed into it using a UPB Setup Tool. This section will describe the operation of the Wall Switch Dimmer in its factory default configuration. Please refer to the section entitled “Configuring the WS1E Wall Switch Dimmer”...
- Page 7 rocker switch that can be used to control the lighting load of the WS1E in the same way as previously described in Table 2. Page 7 of 11...
- Page 8 The WS1E Wall Switch Dimmer is specially designed to work in a PulseWorx™ Lighting System consisting of PCS 6 and 8 button keypad controllers (PCS models KPCW-6, KPCW-8). Pushbuttons on these controllers can be configured to activate the Preset Light Levels and Fade Rates stored in the WS1E.
-
Page 9: Configuration Options
Step Operation The WS1E will flash its lighting load one time and blink its LED blue to indicate that it is in Setup Mode. Note: the device will automatically exit Setup Mode after 5 minutes. Configuration Options Option Factory Default Possibilities Dimming Enabled... - Page 10 Option Factory Default Possibilities LED Color Control Diagnostic LED Any of 16 different LED modes consisting of the (See Table 3) colors blue, red, magenta, and black. Table 4: WS1E Configuration Options Page 10 of 11...
-
Page 11: Setting Factory Defaults
Setting Factory Defaults The WS1E Wall Switch Dimmer can be set back to the factory defaults listed in Table 4 by the following steps: Step Operation Identify the WS1E that you want to set factory defaults by tapping its rocker switch 5 times quickly.
